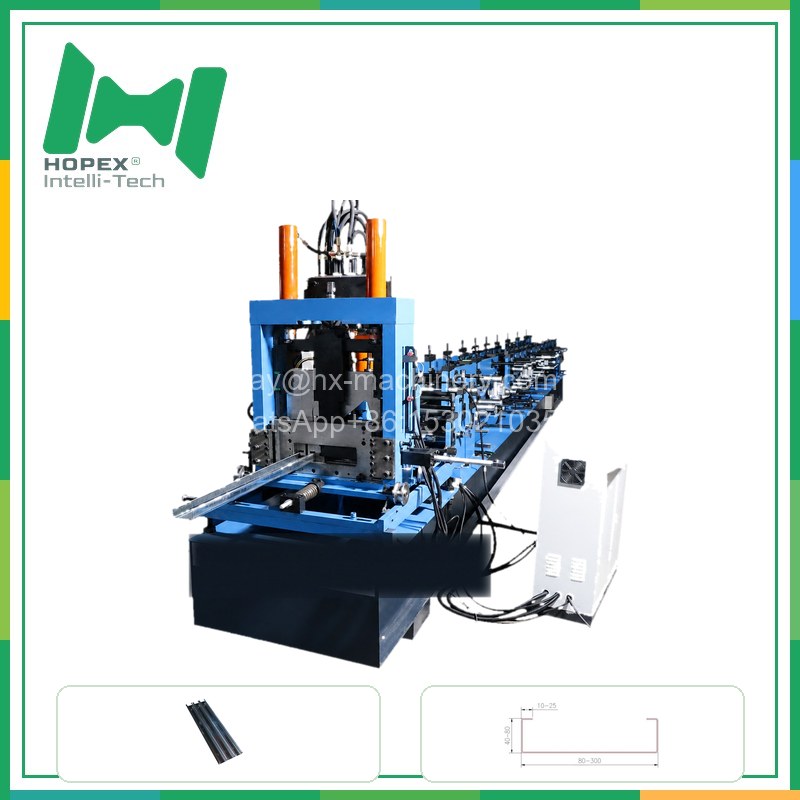

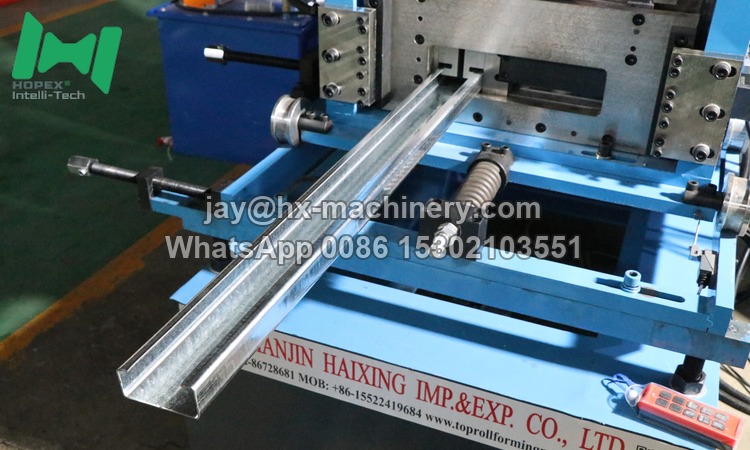

C Channel Forming Machine | HOPEX Factory80-300
C purlin machine 4mm suits heavy gauge, and c purlin roll former covers light jobs. C purlin steel forming machine and c purlins machine handle daily production. C channel forming machine, c channel machine, c channel roll forming machine and c profile roll forming machine all support 80-300 mm working width.
c channel machine80-300
Detail

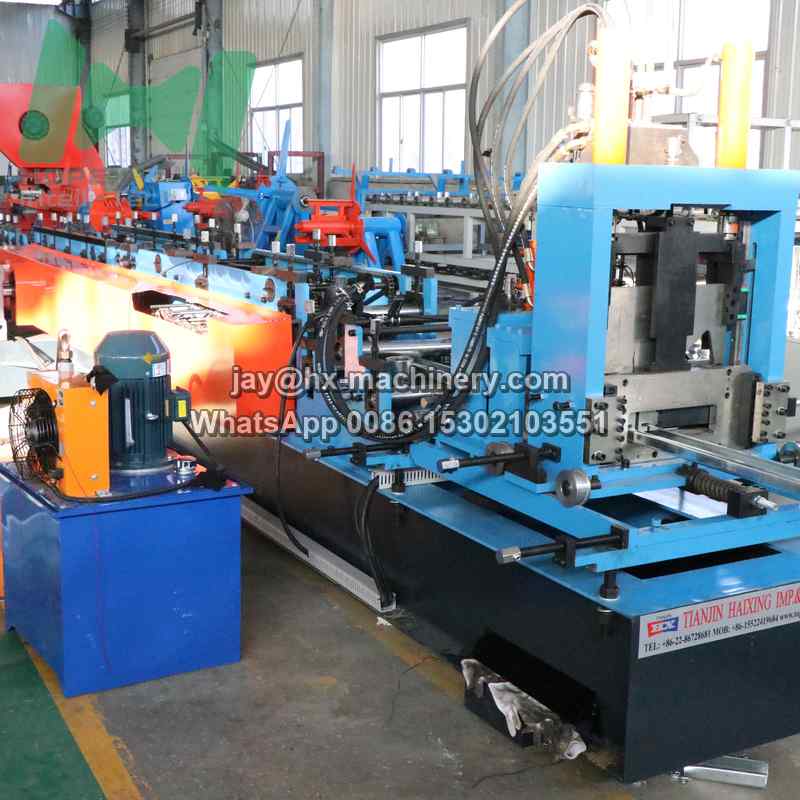

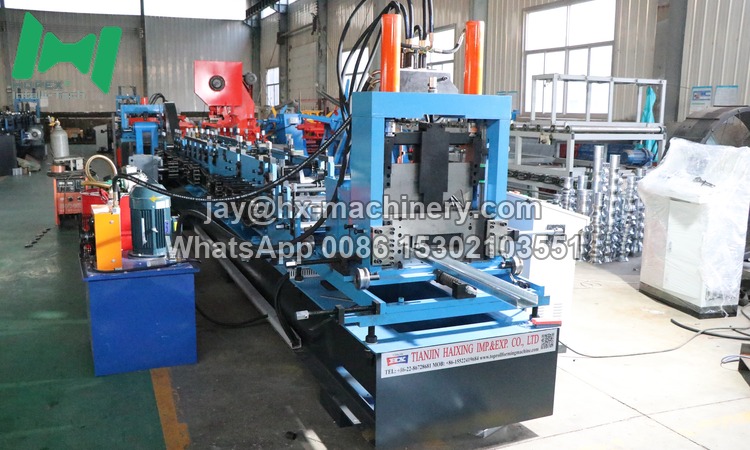

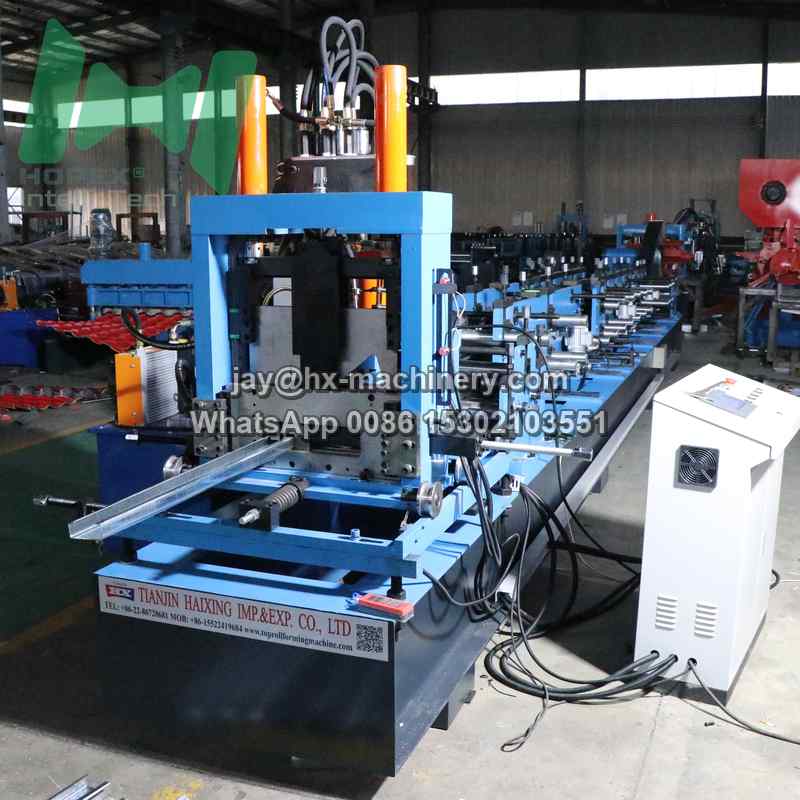

80-300Automatic C Purlin Forming Machine
|
No.
|
c channel purlin forming machine
|
|
|
1
|
Product name | C Channel Sheet Metal Purlin Roll Forming Machine |
|
2
|
Equipment footprint | 26m × 3× 2m. |
|
3
|

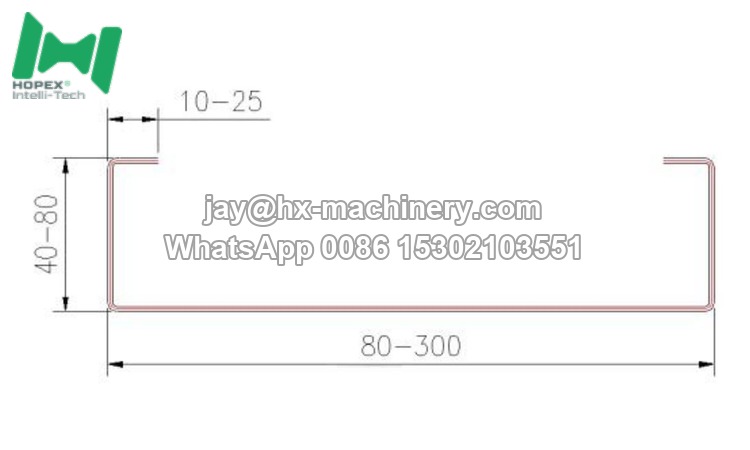

Feed width | 80-300 |
|
4
|
Feed thickness | 1.5-3mm |
|
5
|
Material of raw materials | Q235B cold-rolled strip, hot-rolled strip, galvanized sheet. |
|
6
|
Online punching, production speed | 26 meters/minute. |
|
7
|
Voltage parameters | 220V 60hz 2P |
Q: 1. How do I adjust the machine for different widths and heights?
For standard lines, it can be adjusted via high-precision manual spacers. However, for our premium series (like the HOPEXcustomized lines), we integrate an automatic motorized width-adjustment system controlled entirely through the PLC touchscreen, moving the forming rollers smoothly to your desired dimensions within seconds.
Q: 2. Is the width adjustment manual or fully automatic via PLC?
We offer both options based on your budget. Our advanced cable tray and housing profile lines feature fully automatic PLC one-key changeover. The operator simply inputs the parameters on the screen, and the machine adjusts itself automatically, eliminating human error.
3. How long does a standard size/profile changeover take?
With our traditional manual adjustment lines, it takes about 1-2 hours. With our upgraded Smart PLC One-Key Changeover System, a complete width adjustment (e.g., from 100mm to 600mm for cable trays) takes less than 2 minutes, drastically reducing your downtime and boosting factory productivity.
