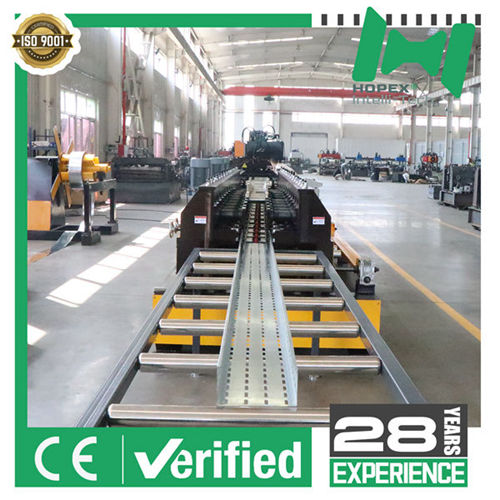

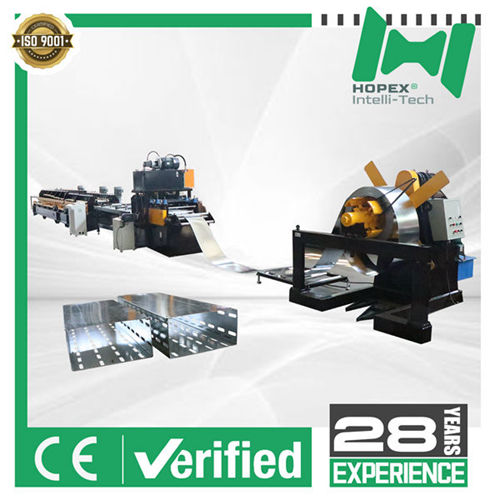

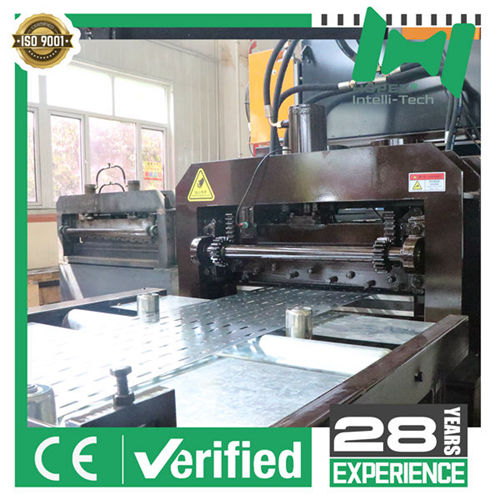

Cable tray machine

Cable tray machine

Our cable tray machine represents the pinnacle of cable management system manufacturing technology. Designed for continuous, high-volume production, this machine efficiently processes coiled steel raw materials into precise, uniform, and high-strength cable trays

From the uncoiler to the final products, every component is manufactured with high-quality materials and subjected to rigorous quality control, ensuring durability and reliable performance.

Customized solutions are available to meet customer needs based on different lengths and requirements.

Cable tray machine work flow

Active feeding —- Leveling —- Punching —- Cutting —- Conveying platform —- Forming —- Discharge

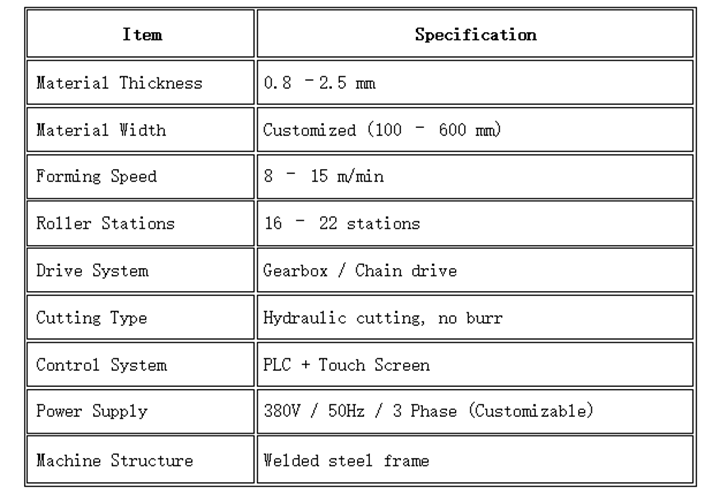

Cable tray machine parameter

This consistent speed is enabled by a robust, fully-welded frame (absorbing vibration) and the power-synchronized chain drive system. Together, they form the foundation for smooth high-speed operation, preventing dimensional inaccuracies or surface flaws caused by instability.

Application

Our client photo

Q1: What types of cable trays can this machine produce?

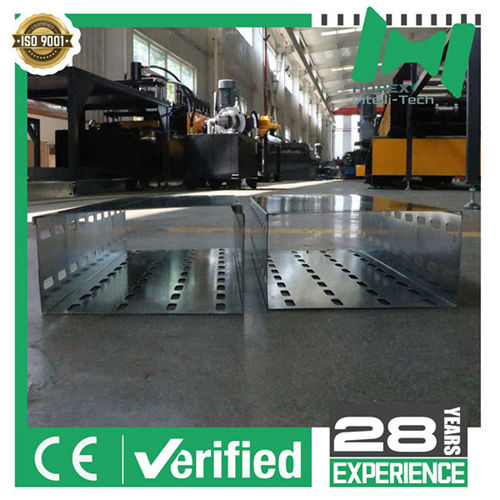

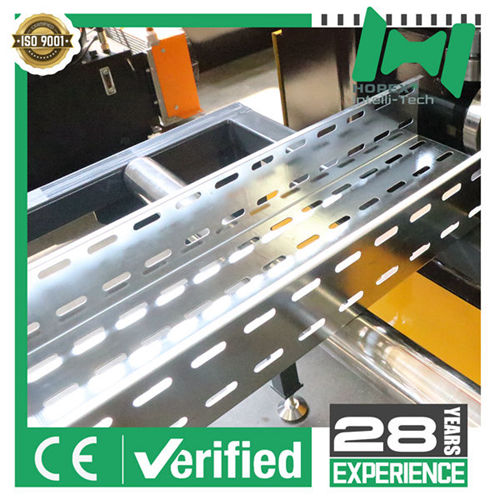

This cable tray machine is designed to produce solid bottom trays, ladder type trays, and perforated trays, widely used in industrial plants, commercial buildings, and infrastructure projects.

Q2: What is the production speed of the cable tray machine?

The production speed is 8–10 meters per minute, ensuring high efficiency with stable and precise forming.

Q3: What materials can this machine process?

The machine supports galvanized steel, cold-rolled steel, and stainless steel, meeting various international standards.

Q4: What is the material thickness range?

The standard thickness range is 0.8–2.5 mm, with customization available for special project requirements.

Q5: Can the cable tray machine be customized?

Yes. We provide fully customized solutions, including tray size, punching design, production line layout, and automation level.

Q6: How many operators are required?

Only 1–2 operators are required. The PLC control system is user-friendly and easy to maintain.

Q7: Does the machine include a punching system?

An online hydraulic punching system is optional, with hole shapes and spacing customized according to customer drawings.

Q8: How stable and durable is the cable tray machine?

The machine features a heavy-duty steel frame and proven forming technology, ensuring long-term stable operation.

Q9: What is the delivery time?

The delivery time is around 30–45 days for standard models, depending on customization.

Q10: Do you provide installation and after-sales service?

We provide remote technical support, on-site installation & commissioning, and long-term after-sales service.
