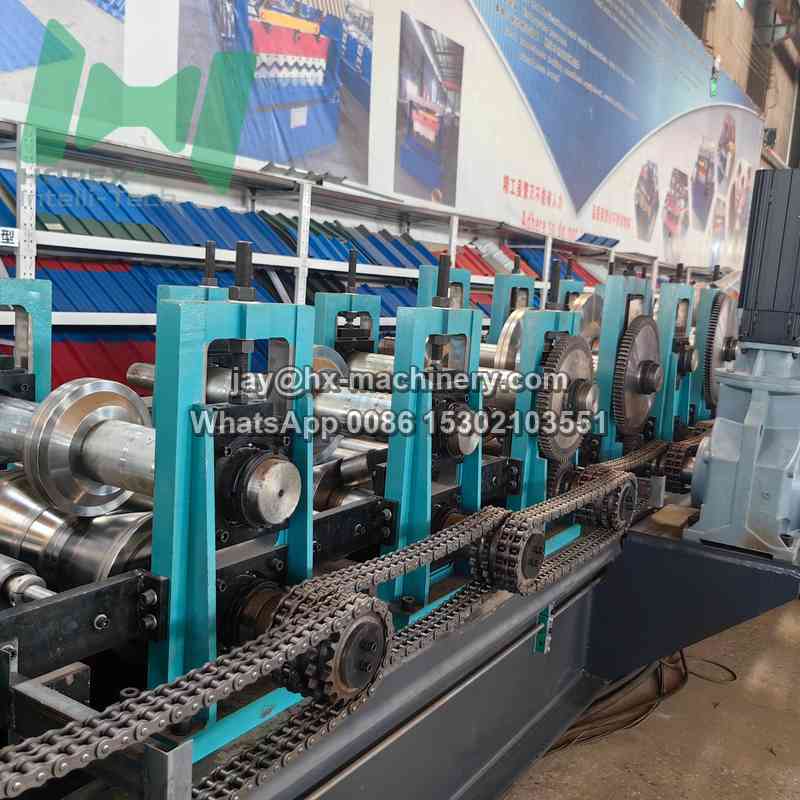

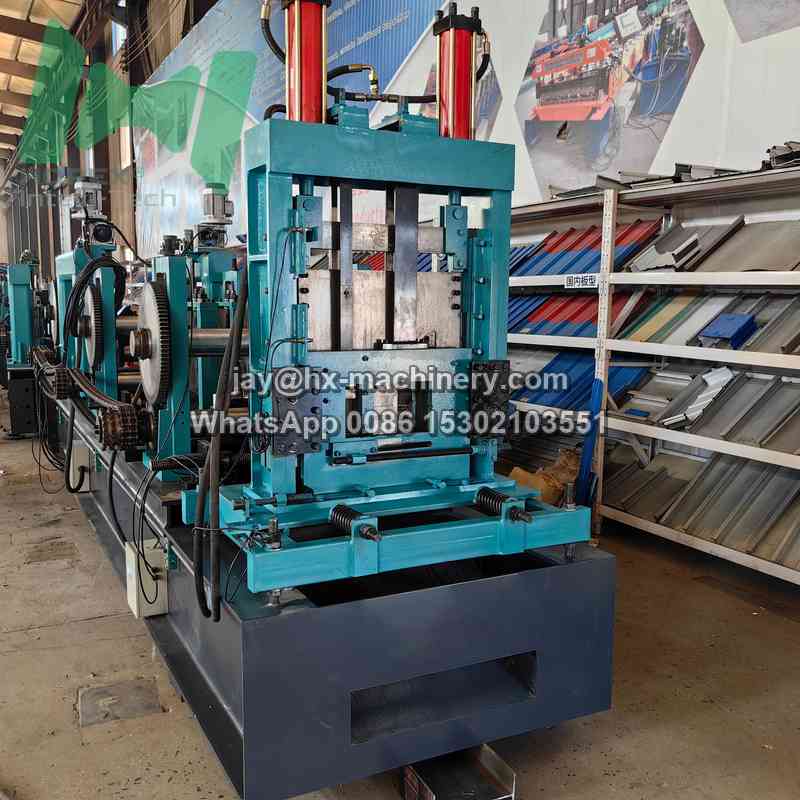

Metal hat channel roll forming machine | HOPEX
solar hat purlin roll forming machine,omega purlin roll forming machine,top hat purlin roll forming machine,hat purlin making machine and hat purlin machine,omega channel roll forming machine,furring channel making machine,omega furring channel roll forming machine,metal hat channel roll forming machine,hat channel forming machine,roof hat channel roll former,hat section roll forming machine,omega profile roll forming machine,top hat roll forming machine and top hat profile roll forming machine.
Top hat roll forming machine
Detail
Hat profile roll forming machine
|
No.
|
furring channel making machine
|
|
|
1
|
Product name | hat section roll forming machine |
|
2
|
Equipment footprint | 8600*1400*1700mm |
|
3
|
Feed width | 80-300 |
|
4
|
Feed thickness | 1.5-3mm |
|
5
|
Material of raw materials | Q235B cold-rolled strip, hot-rolled strip, galvanized sheet. |
|
6
|
Online punching, production speed | 26 meters/minute. |
|
7
|
Voltage parameters | 220V 60hz 2P |
Q: 1. How do I adjust the machine for different widths and heights?
For standard lines, it can be adjusted via high-precision manual spacers. However, for our premium series (like the HOPEXcustomized lines), we integrate an automatic motorized width-adjustment system controlled entirely through the PLC touchscreen, moving the forming rollers smoothly to your desired dimensions within seconds.
Q: 2. Is the width adjustment manual or fully automatic via PLC?
We offer both options based on your budget. Our advanced cable tray and housing profile lines feature fully automatic PLC one-key changeover. The operator simply inputs the parameters on the screen, and the machine adjusts itself automatically, eliminating human error.
3. How long does a standard size/profile changeover take?
With our traditional manual adjustment lines, it takes about 1-2 hours. With our upgraded Smart PLC One-Key Changeover System, a complete width adjustment (e.g., from 100mm to 600mm for cable trays) takes less than 2 minutes, drastically reducing your downtime and boosting factory productivity.
