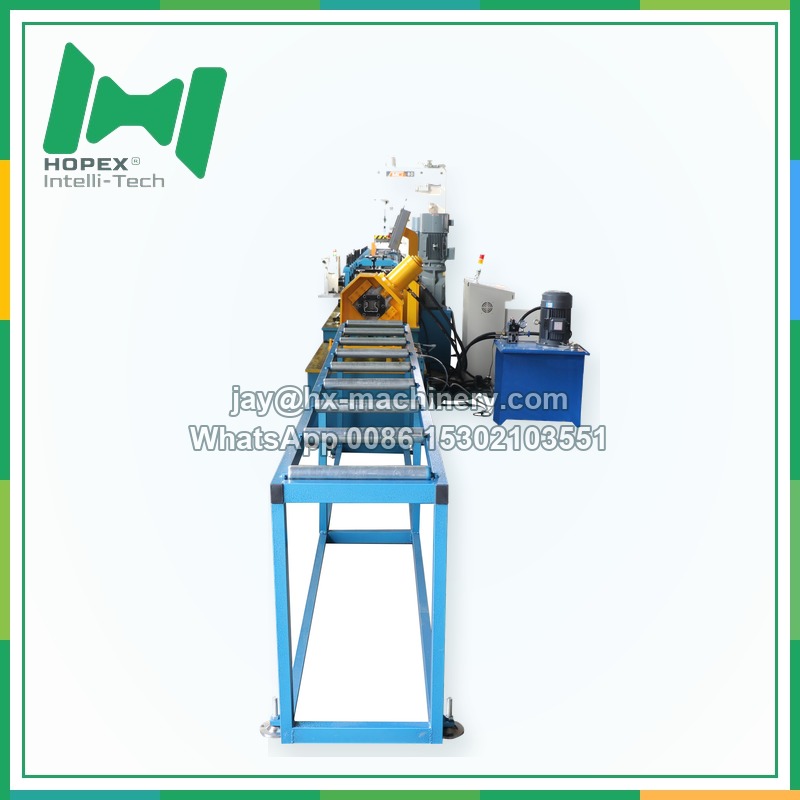

Shelf Rack Roll Forming Machine | HOPEX Upright Line
Warehouse builders buy the pallet rack roll forming machine first, then add a rack shelf roll forming machine for step beams. The shelf rack roll forming machine and storage rack roll forming machine share a double-head uncoiler. The upright rack roll forming machine forms C and Sigma uprights, the rack upright roll forming machine runs Sigma profiles, and the upright roll forming machine with the rack roll forming machine serves small plants.
Storage rack roll forming machine
Detail
upright rack roll forming machine
|
No.
|
slotted angle making machine
|
|
|
1
|
Product name | Rack Upright Roll Forming Machine |
|
2
|
Equipment footprint | 2800*1200*3000mm |
|
3
|
Feed width | 234-265mm |
|
4
|
Feed thickness | 2.5mm |
|
5
|
Material of raw materials | Hot-rolled sheet, galvanized sheet |
|
6
|
Online punching, production speed | High speed 20 meters/minute (excluding drilling and shearing) |
|
7
|
Medium plate thicknes | 25mm |
|
8
|
Main Motor Power | 4+4+15+7.5kw |
|
9
|
Voltage | 3 poles, 380 volts, 50 Hertz |
Q: 1. How do I adjust the machine for different widths and heights?
For standard lines, it can be adjusted via high-precision manual spacers. However, for our premium series (like the HOPEXcustomized lines), we integrate an automatic motorized width-adjustment system controlled entirely through the PLC touchscreen, moving the forming rollers smoothly to your desired dimensions within seconds.
Q: 2. Is the width adjustment manual or fully automatic via PLC?
We offer both options based on your budget. Our advanced cable tray and housing profile lines feature fully automatic PLC one-key changeover. The operator simply inputs the parameters on the screen, and the machine adjusts itself automatically, eliminating human error.
3. How long does a standard size/profile changeover take?
With our traditional manual adjustment lines, it takes about 1-2 hours. With our upgraded Smart PLC One-Key Changeover System, a complete width adjustment (e.g., from 100mm to 600mm for cable trays) takes less than 2 minutes, drastically reducing your downtime and boosting factory productivity.
