Automatic Solar Bracket Production Line — Integration and Handover

Automatic Solar Bracket Production Line — Integration and Handover

Product ID : automatic solar bracket production line

Product Tags :

Product Attributes :

Automatic solar bracket production line covering scope of supply, installation, commissioning and handover, forming 2.0-3.0mm at 210mm width.

Product Description

HOPEX-Automatic Bracket Line

Buying an automatic solar bracket production line is a project, not a purchase. This page sets out what is supplied, what happens on arrival, and what you are responsible for.

Scope of Supply

Item	Included	Specification
Decoiler	Yes	Coil pay-off with tension control
Levelling unit	Yes	Removes coil set before forming
Servo feeder	Yes	Indexed strip positioning
Punching station	Yes	Hydraulic, 11 KW × 2
Forming mill	Yes	26 stations, Cr12MoV, quenched HRC 58–62
Tracking cut-off	Yes	Hydraulic, 4 KW
Pressing station	Yes	Hydraulic, 3 KW
Output platform	Yes	Receives finished brackets
Control cabinet	Yes	PLC with touch screen, 380 V

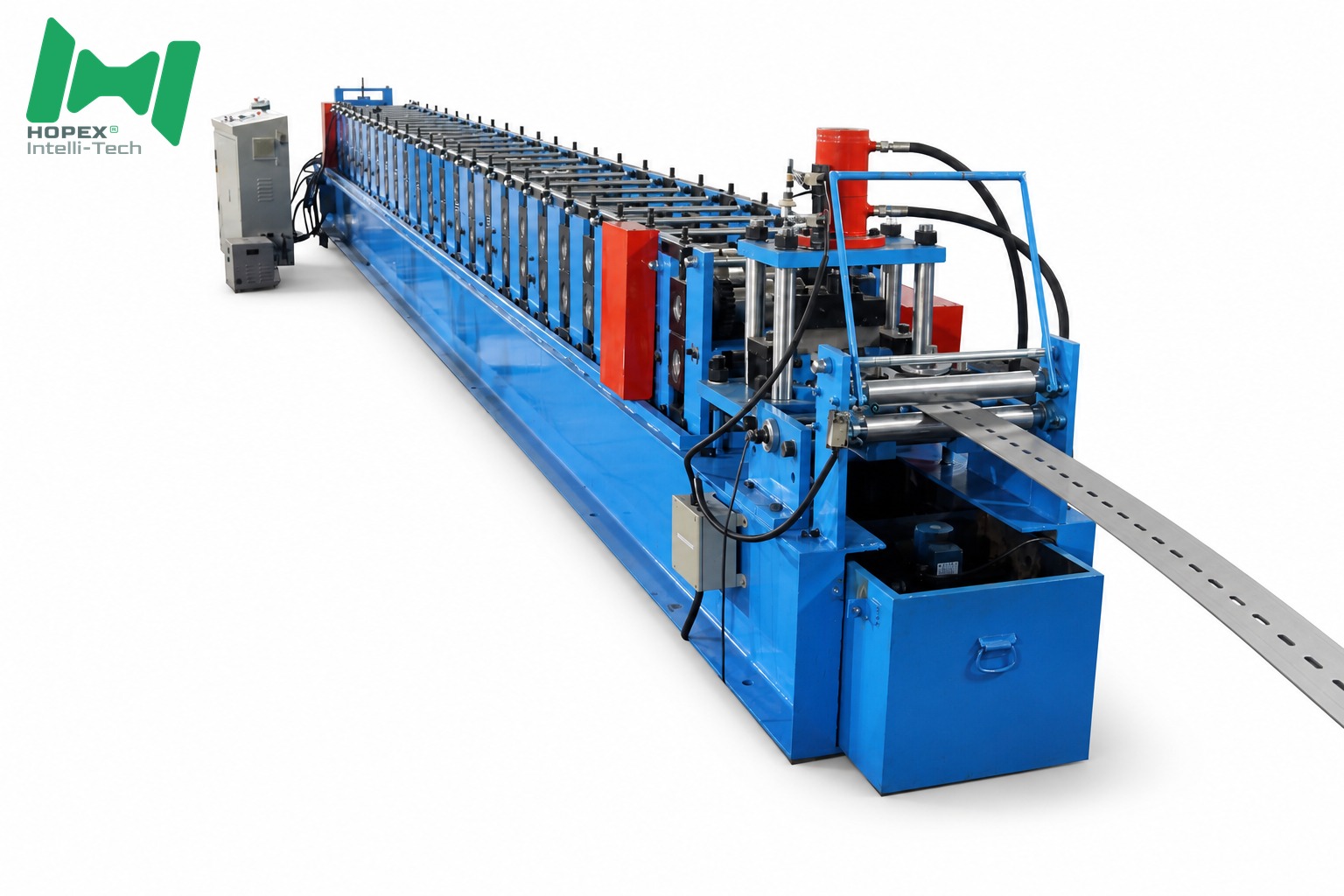

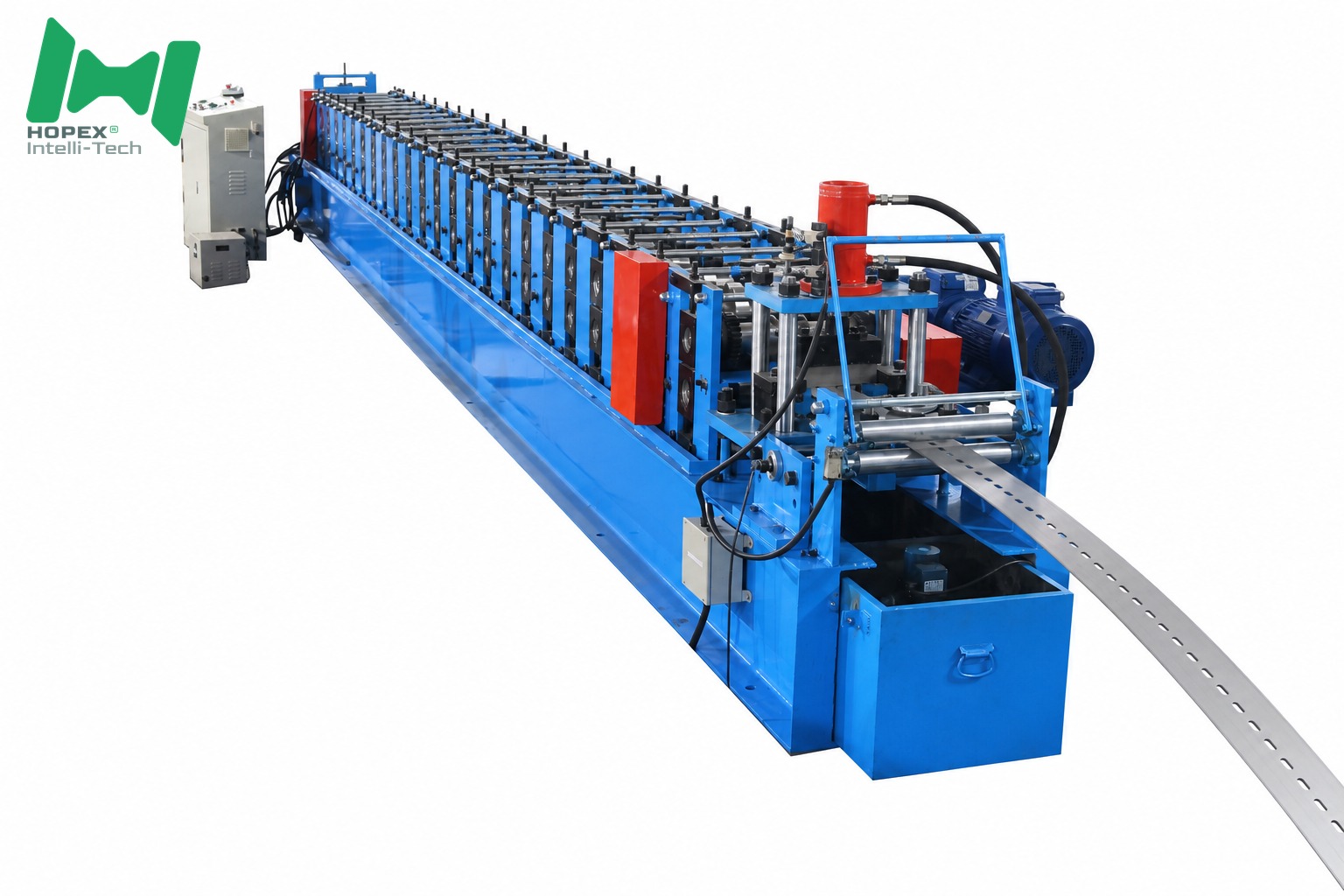

automatic solar bracket production line complete production line

Line Capability

Item	Parameter
Feeding width	210 mm
Forming thickness	2.0 – 3.0 mm
Production capacity	10 – 20 m/min
Molding speed	15 – 30 m/min
Main shaft	80 mm solid shaft, 45# steel, forged, 0.05 mm chrome plated
Total installed power	18.5 KW × 2 + 11 KW × 2 + 4 KW + 3 KW
Overall dimensions	12000 × 1550 × 1600 mm
Machine weight	8000 kg

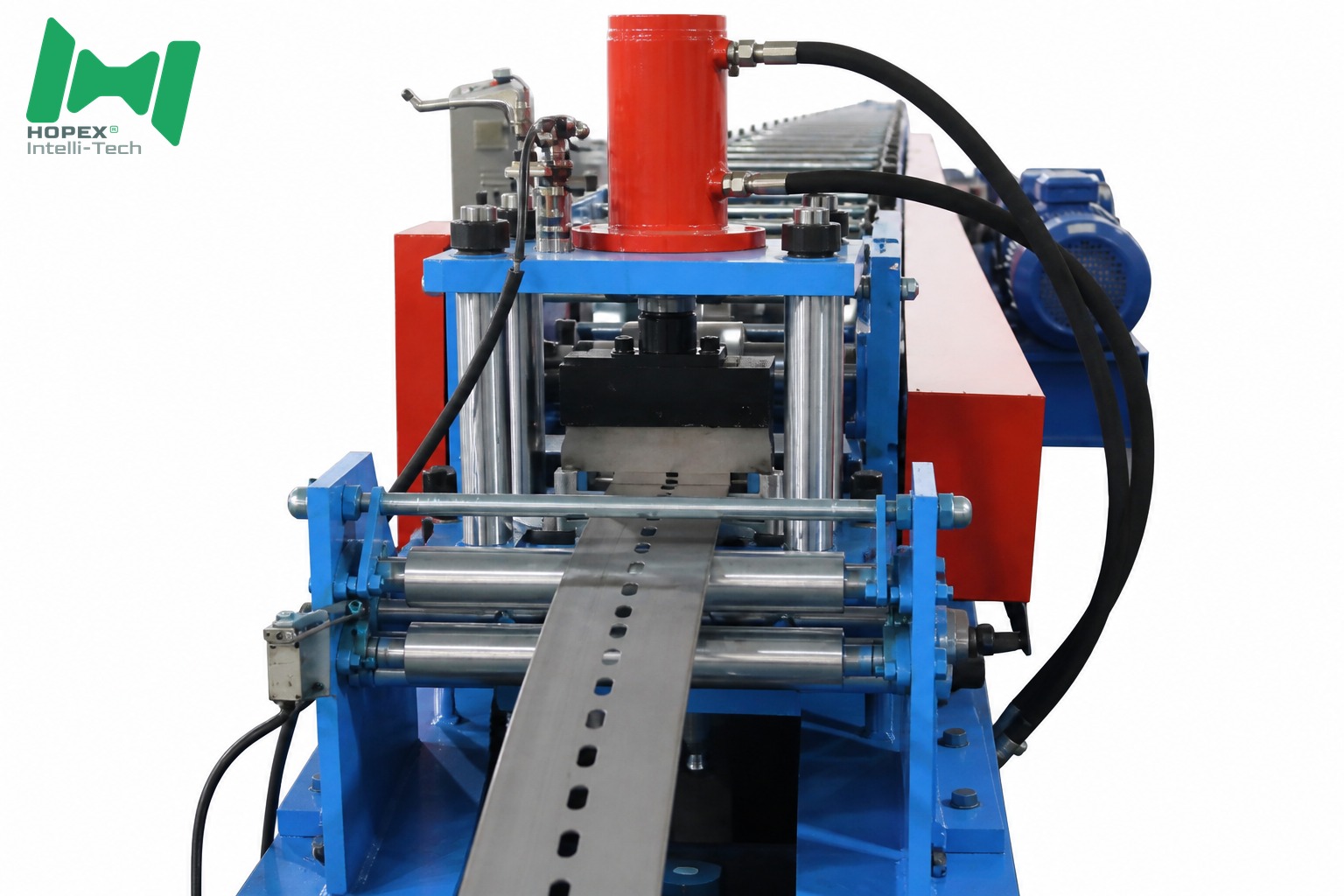

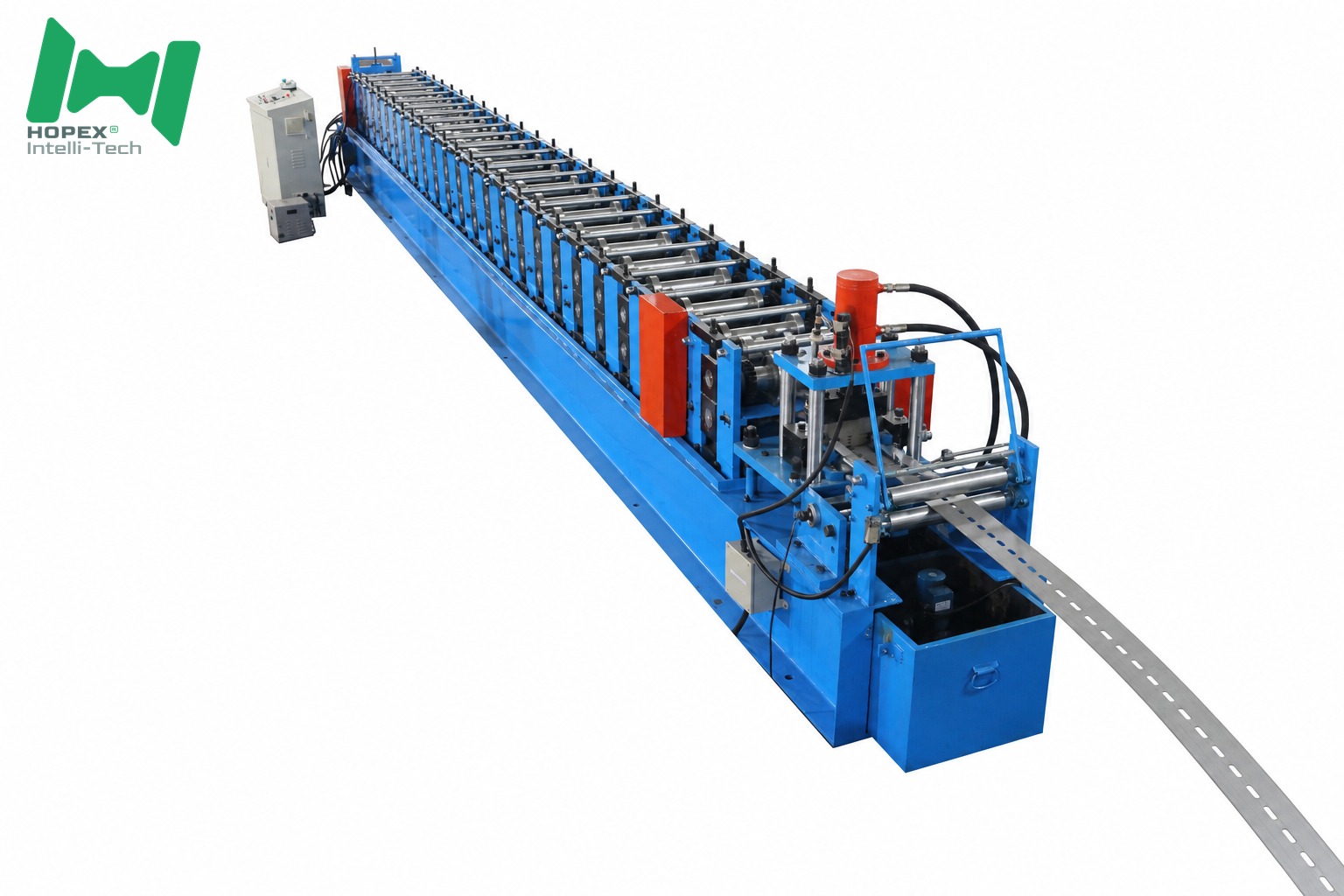

automatic solar bracket production line forming station close-up

Before Shipment

Line assembled and trial run at the factory in Tianjin, China.
Machinery test report issued.
Video outgoing inspection recorded and sent for your approval.
Line film wrapped, secured on a steel base and container loaded.

automatic solar bracket production line export packaging and container loading

On Site — Your Preparation

Level floor able to carry approximately 8000 kg over 12000 × 1550 × 1600 mm.
380 V three phase supply sized for 18.5 KW × 2 + 11 KW × 2 + 4 KW + 3 KW.
Coil handling equipment and access for loading.
Compressed air and drainage as advised in the manual.

Commissioning and Handover

Positioning and levelling of the line sections.
Electrical and hydraulic connection.
First article run and dimensional check against your drawing.
Operator training on PLC recipes, length and hole pattern setting.
Handover with manuals and maintenance schedule.

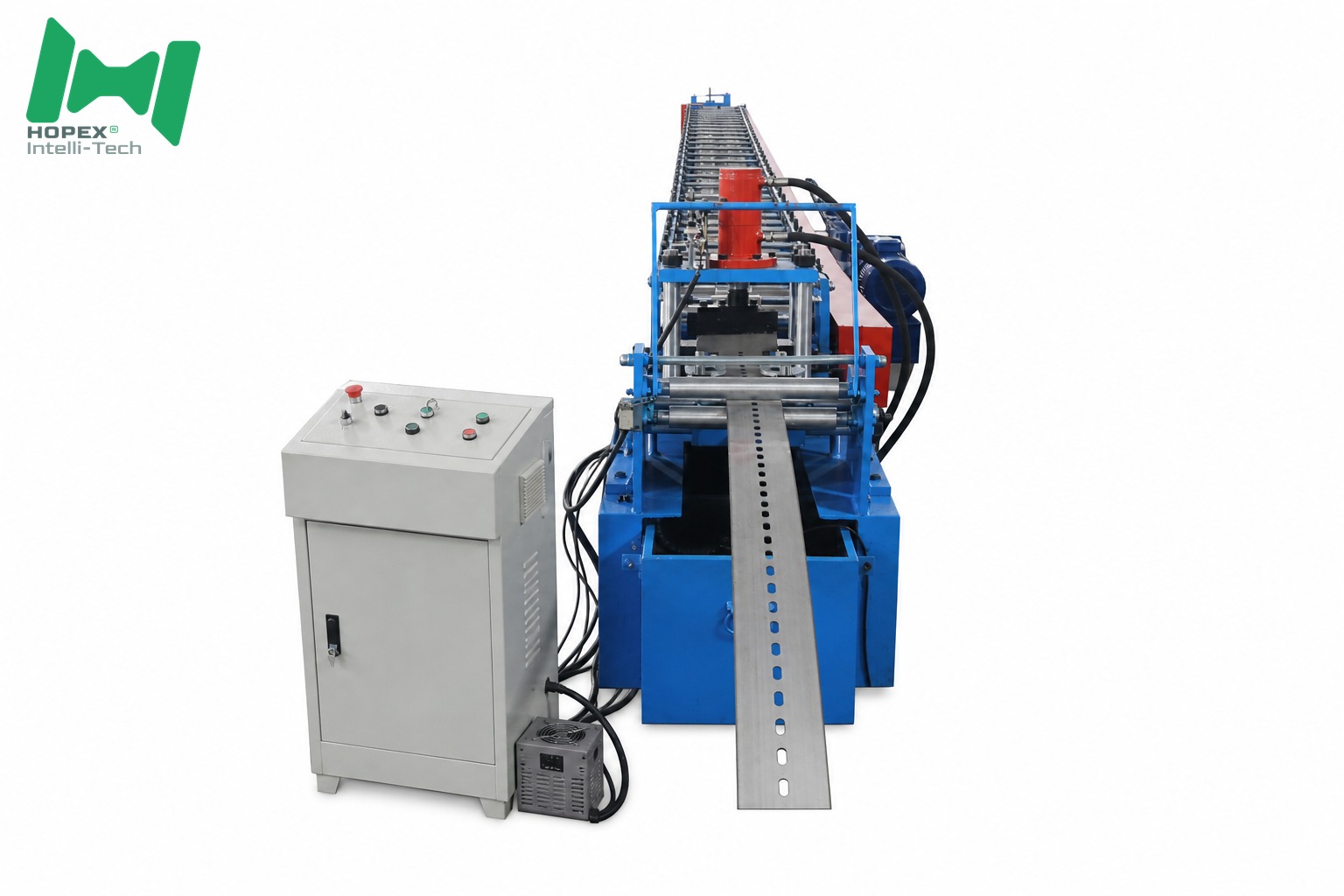

automatic solar bracket production line PLC control cabinet

Lead Time and Warranty

Quantity	Lead time
1 set	30 days
2 – 5 sets	45 days
Above 5 sets	Confirmed with our engineers

Warranty is 2 years covering the core components: motor, bearing, gearbox, pump, gear and pressure vessel.

Customisation Options

Minor customisation of the standard line.
Drawing-based customisation to your section.
Sample-based customisation from a physical part.
Full customisation for non-standard requirements.

HOPEX OEM ODM capability and factory strengths

HOPEX at international roll forming exhibitions

Project FAQ

Q1. What exactly is included in the line?

Decoiler, levelling unit, servo feeder, hydraulic punching, 26 station forming mill, tracking cut-off, pressing station, output platform and PLC control cabinet.

Q2. Do you provide installation support?

Yes, engineer guidance is provided for positioning, connection, commissioning and operator training.

Q3. What do we need to prepare before arrival?

Level floor for 8000 kg over 12000 × 1550 × 1600 mm, and 380 V three phase supply sized for 18.5 KW × 2 + 11 KW × 2 + 4 KW + 3 KW.

Q4. Can we approve the machine before it ships?

Yes. Video outgoing inspection and the machinery test report are provided before dispatch.

Q5. How long from order to delivery?

30 days for one set, 45 days for 2–5 sets.

Q6. What if our bracket section is non-standard?

Full and drawing-based customisation are supported. Send the section drawing for tooling design.
