Solar Strut Channel Roll Forming Machine — Tooling Built for Long Runs

Solar Strut Channel Roll Forming Machine — Tooling Built for Long Runs

Product ID : solar strut channel roll forming machine

Product Tags :

Product Attributes :

Solar strut channel roll forming machine for 41x41 to 41x72 channel. Galvanized 1.5-2.5mm strip, 26 passes, inline punching, 10-15 m/min.

Product Description

HOPEX-Strut Channel

Tooling wear decides how long a channel line holds tolerance. On this solar strut channel roll forming machine, all 26 forming passes use Cr12 mould steel rollers, vacuum quenched to HRC 58–62.

The mill forms 41×41, 41×52, 41×62 and 41×72 channel from galvanized strip 1.5–2.5 mm thick at 10–15 m/min. Moreover, a water circulation system removes forming heat, which slows tooling degradation over extended shifts.

Specified for plants running channel production continuously rather than in short batches.

Wear-Resistance Package

Cr12 mould steel rollers — vacuum quenched, HRC 58–62 surface hardness.
Water circulation cooling — controls tooling temperature during continuous forming.
φ80 mm main shafts — 45# steel, quenched and tempered against torsional fatigue.
40Cr levelling shafts — high-frequency quenched, 70 mm diameter.
Cast iron housing stands — stable roller alignment reduces uneven wear.
Cr12 cutting tooling — the tracking saw section is built for repeated cut cycles.

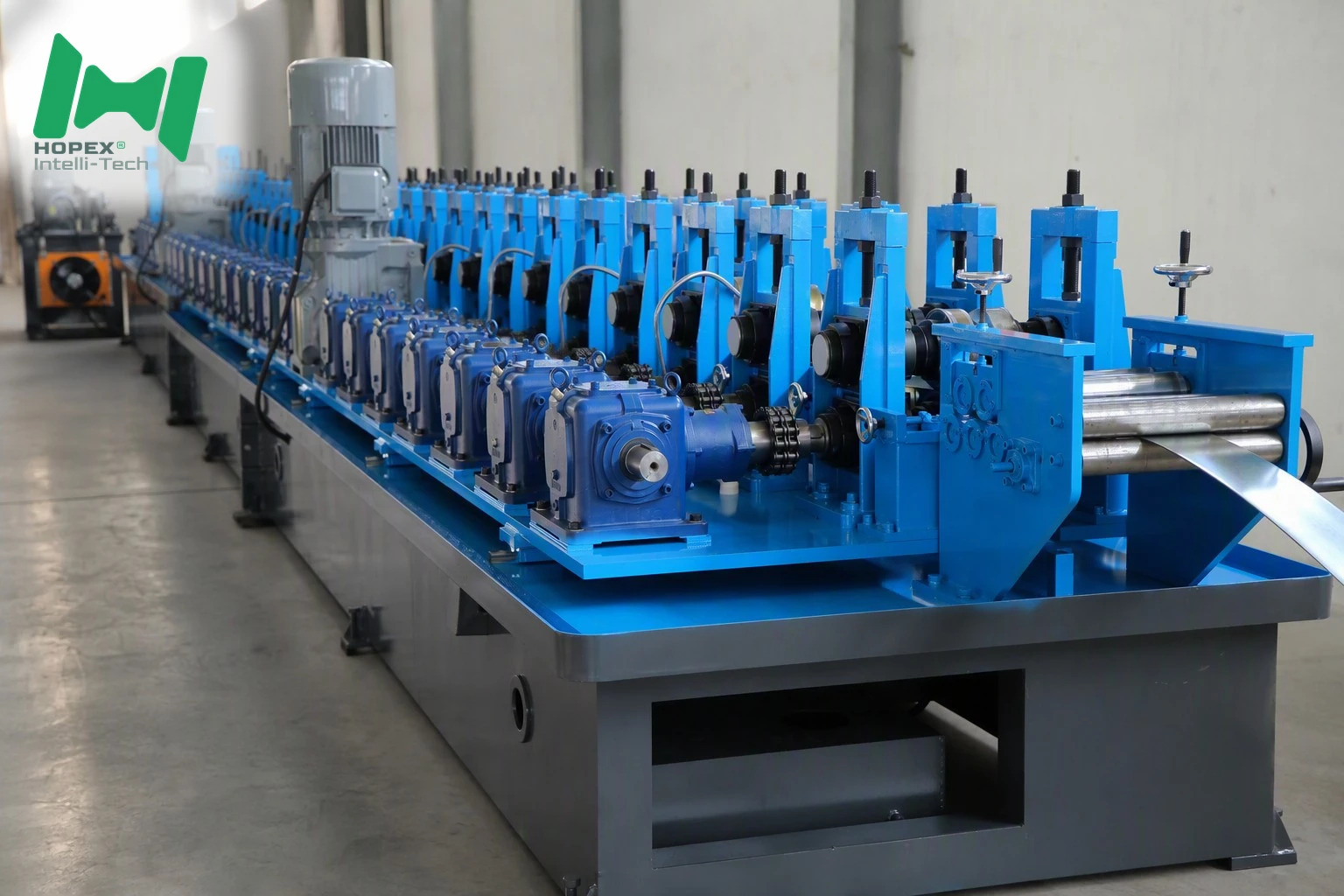

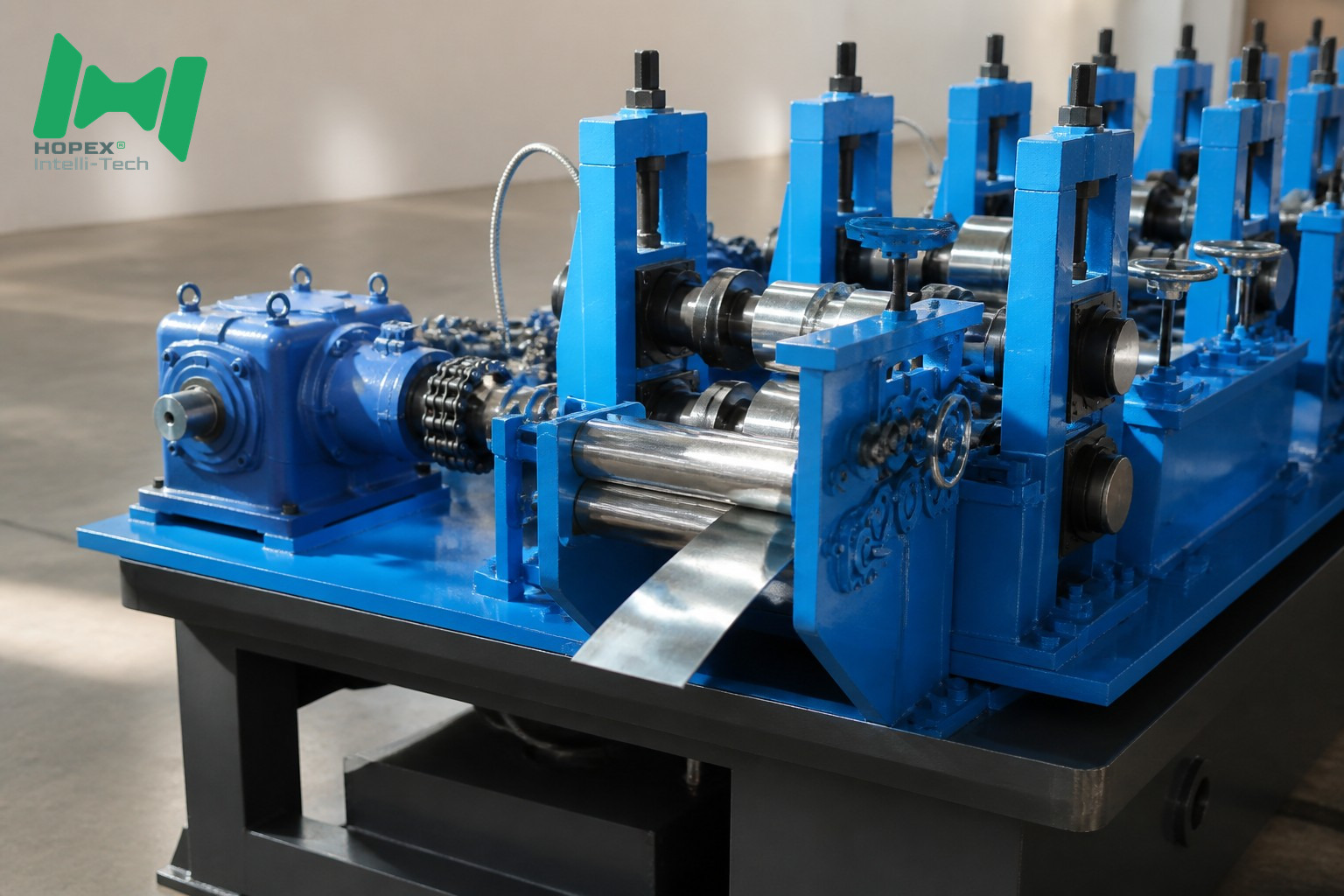

Roller stands and gear drive of the strut channel mill

How Tooling Life Is Protected

Roller wear comes from three sources: abrasion, heat and misalignment. This line addresses each.

Abrasion resistance comes from Cr12 vacuum-quenched rollers at HRC 58–62. Heat is managed by the built-in water circulation system. Alignment is held by the cast iron housing frame, which keeps stands in position so load spreads evenly across all 26 passes.

In addition, the drive uses two 18.5 KW K97 hard-tooth-surface reducers with gearbox and coupling connection. Consequently torque transfer stays smooth, and shock loading on the roller sets is reduced.

Production Process Flow

Decoiler → 5-Roll Leveller → Servo Feeding → Non-Stop Reverse Punching → 26-Pass Roll Forming → Tracking Circular Saw → Output Platform

Technical Specifications

Machine Conditions

Item	Parameter
Overall dimensions (L×W×H)	26 × 3 × 2 m
Hydraulic oil	46# hydraulic oil
Gear oil	18# hypoid gear oil
Total installed capacity	Approx. 95 KW

Main Technical Parameters

Item	Parameter
Rolling specifications	41×41 / 41×52 / 41×62 / 41×72
Feeding strip width	135 mm, 157 mm, 177 mm, 197 mm
Strip thickness	1.5 (±0.03) – 2.5 (±0.03) mm
Strip material	Galvanized steel
Inline punching & production speed	10–15 m/min
Workpiece length	≤ 6000 mm
Forming thickness range	1.5 – 2.5 mm

Control screen monitoring the strut channel forming line

Supply Scope & Configuration

1. Decoiler

Hydraulic expansion mandrel with electric uncoiling
Load capacity: 3 tons
Uncoiling inner diameter: 480–520 mm
Maximum coil outer diameter: 1600 mm

2. Levelling Section

5-roll levelling unit
Levelling shaft diameter: 70 mm
Shaft material: 40Cr, high-frequency quenched

3. Main Forming Machine

Forming rollers: 26 passes
Roller material: Cr12 mould steel, vacuum quenched, hardness HRC 58–62
Main shaft diameter: φ80 mm after machining
Main shaft material: 45# steel, quenched and tempered
Motor power: two 18.5 KW K97 series hard-tooth-surface reducers
Transmission: gearbox drive with coupling connection
Frame: cast iron housing
Water circulation system included

4. Servo Non-Stop Punching

Dual-module reverse punching

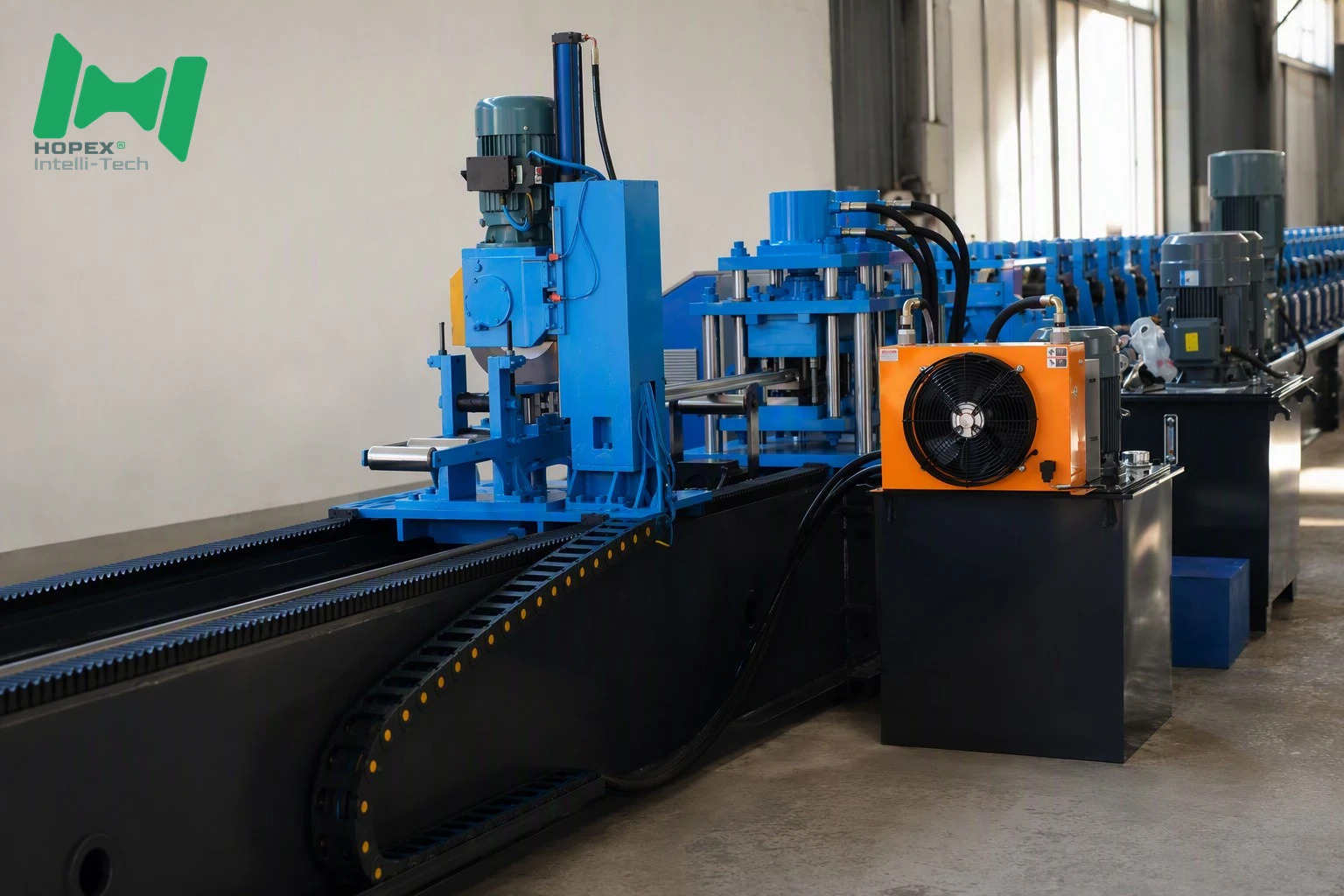

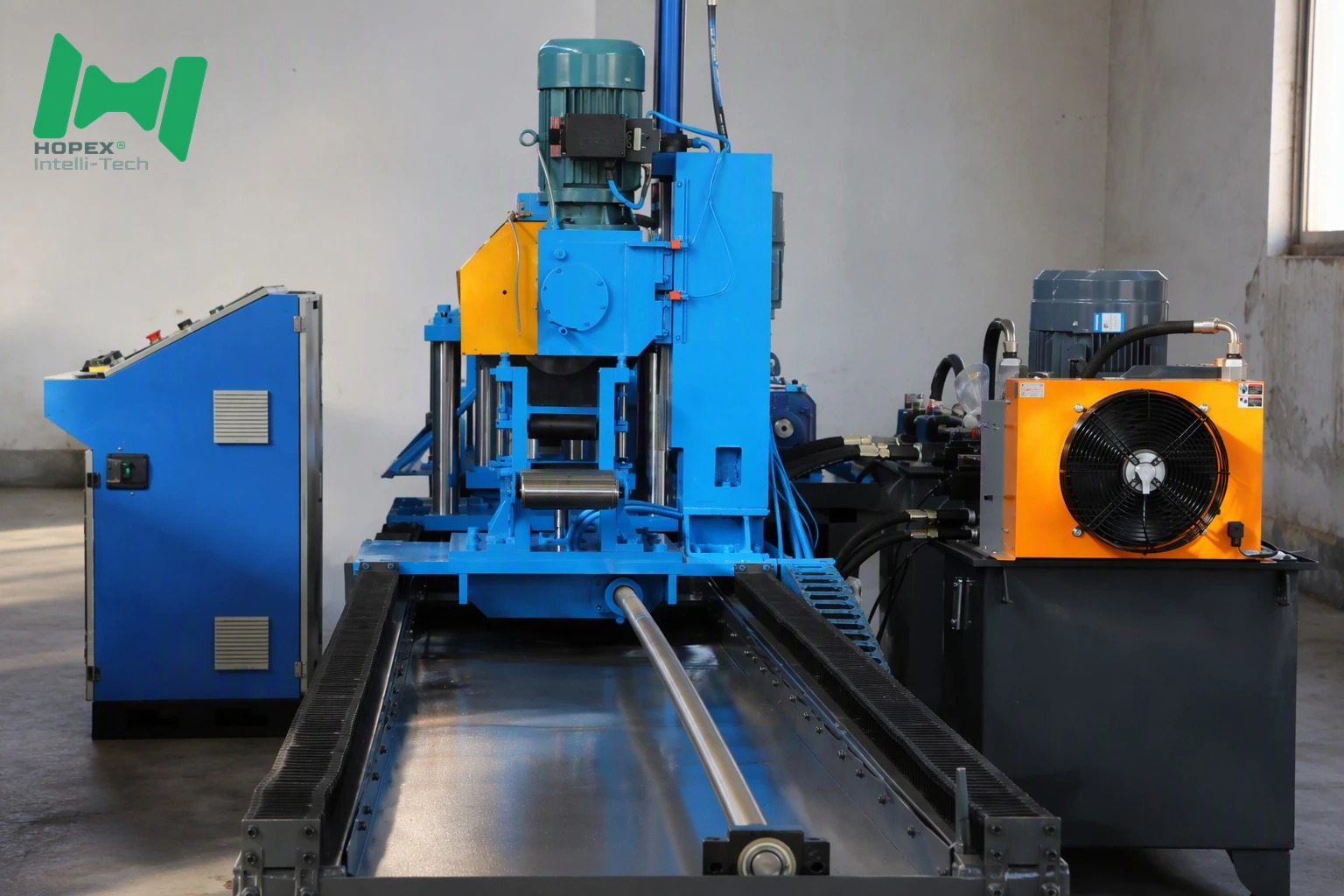

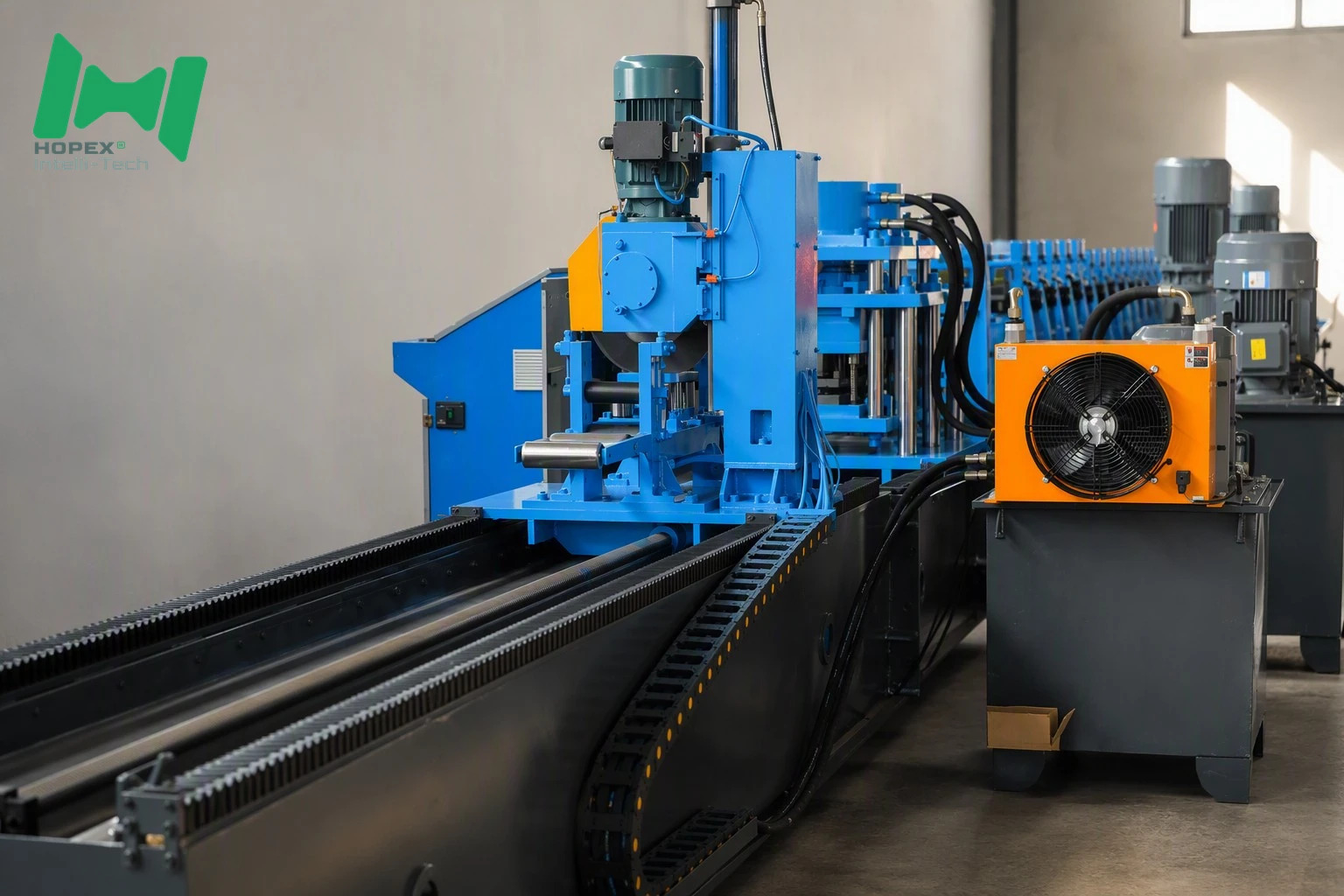

5. Tracking Cut-Off

Circular saw cutting, synchronised with line speed

6. Output Platform

3 m platform × 2, idler roller type

7. Hydraulic System

11 KW × 2 pump station for punching
4 KW pump station for cutting
3 KW pump station for material pressing

Decoiler section of the solar strut channel machine

Key Components & Brands

No.	Component	Brand
1	Inverter / VFD	INVT
2	LCD touch screen	Samkoon
3	Low-voltage control elements	Delixi / Chint
4	Bearings	Harbin Bearing
5	Reducer / Gearbox	Beijing Ruibofeng

Note: Brands listed cover the main equipment; auxiliary parts are not included. Brands may vary by production batch — actual components prevail.

Applications

Strut channel from this line is used in:

Solar mounting rails for rooftop and ground arrays
Seismic bracing frameworks
Mechanical, electrical and plumbing support systems
Modular framing and equipment platforms

Strut channel supporting a rooftop solar panel

Ground mounted solar array framed with strut channel

Why Work With HOPEX

HOPEX OEM ODM service, 28 years experience, after-sales support, 9000 sqm plant

HOPEX strut channel machine manufacturing workshop

HOPEX roll forming machinery certifications

HOPEX exhibition displays for forming equipment

Visiting customers at the HOPEX strut channel line

Packaging & Delivery

Each solar strut channel roll forming machine is protected with film wrap, braced on a steel base and loaded into containers.

Strut channel roll forming machine prepared for container shipment

Frequently Asked Questions

Q1. What roller material is used and why?

Cr12 mould steel, vacuum quenched to HRC 58–62, chosen for abrasion resistance in continuous production.

Q2. How is forming heat managed?

Through a water circulation system integrated into the main forming machine.

Q3. How many forming passes are there?

26, which spreads deformation and reduces localised roller stress.

Q4. What sections are produced?

41×41, 41×52, 41×62 and 41×72 from strip widths of 135, 157, 177 and 197 mm.

Q5. What drives the mill?

Two 18.5 KW K97 hard-tooth-surface reducers, gearbox transmission with coupling connection.

Q6. What speed and length are supported?

10–15 m/min with inline punching, workpiece length up to 6000 mm.

Talk to Our Engineers

Discuss your channel sections and production hours with our team. We will advise on roller sets for your solar strut channel roll forming machine.
