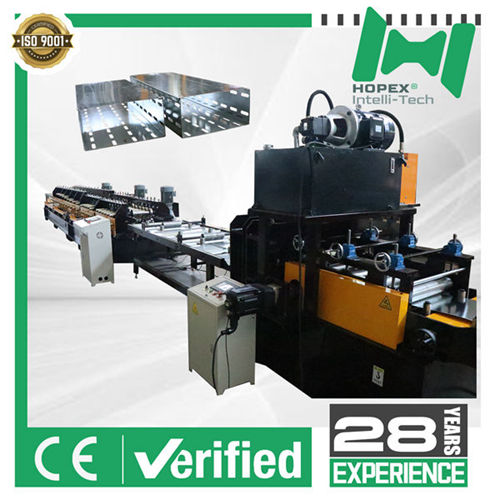

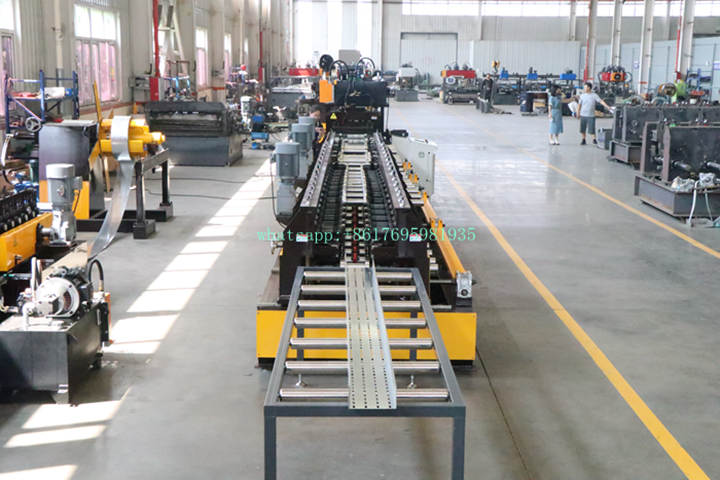

Cable tray machine

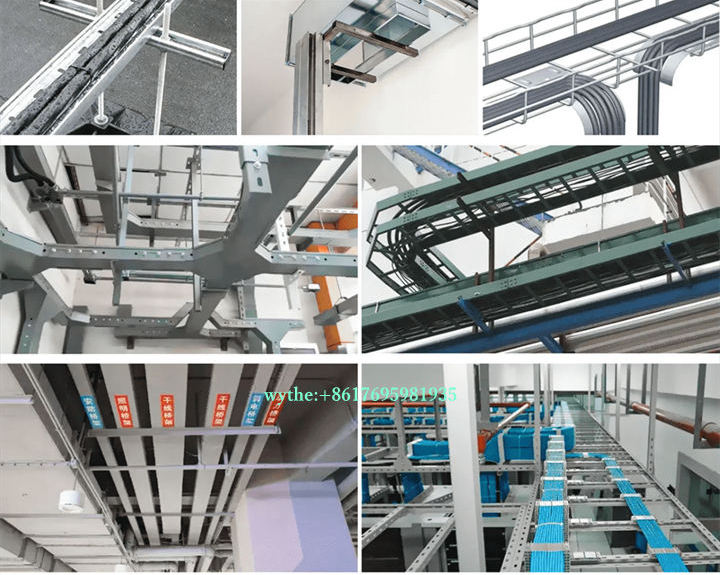

Our cable tray machine represents the pinnacle of cable management system manufacturing technology. Designed for continuous, high-volume production, this machine efficiently processes coiled steel raw materials into precise, uniform, and high-strength cable trays

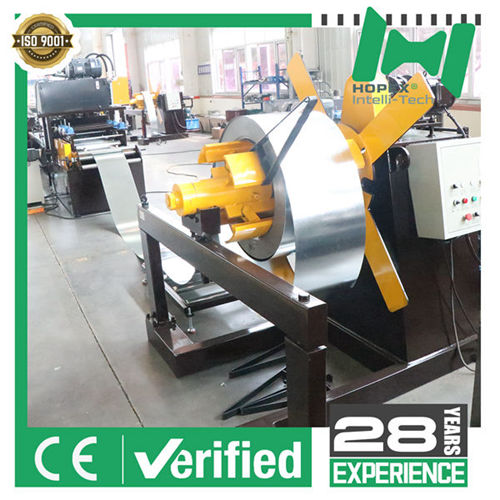

From the uncoiler to the final products, every component is manufactured with high-quality materials and subjected to rigorous quality control, ensuring durability and reliable performance.
Customized solutions are available to meet customer needs based on different lengths and requirements.

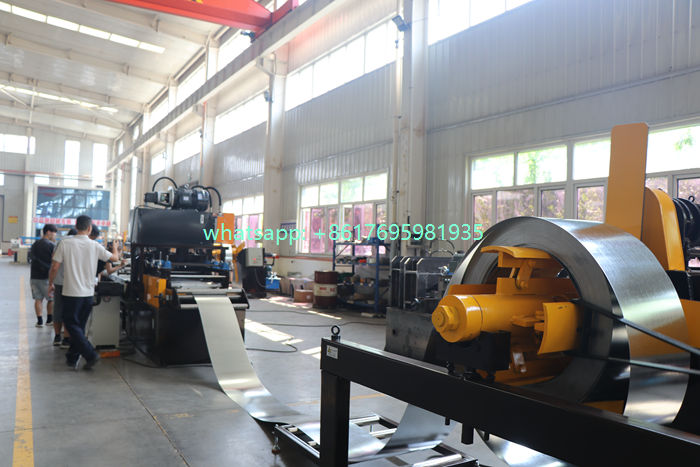

Cable tray machine work flow

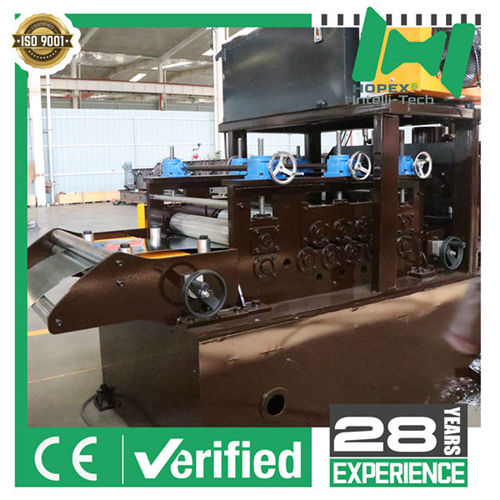

Active feeding —- Leveling —- Punching —- Cutting —- Conveying platform —- Forming —- Discharge

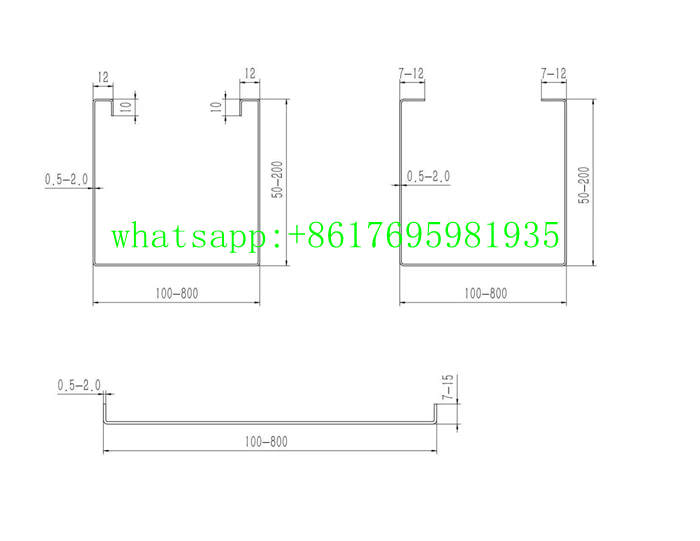

Cable tray machine parameter
|
aw Material Specifications |
Material Type | Galvanized / Cold-Rolled / Stainless Steel |
| Material Thickness | 0.8–2.5 mm (Customizable) | |
| Material Width | Customized according to tray size | |
| Yield Strength | G250–G550 | |
|

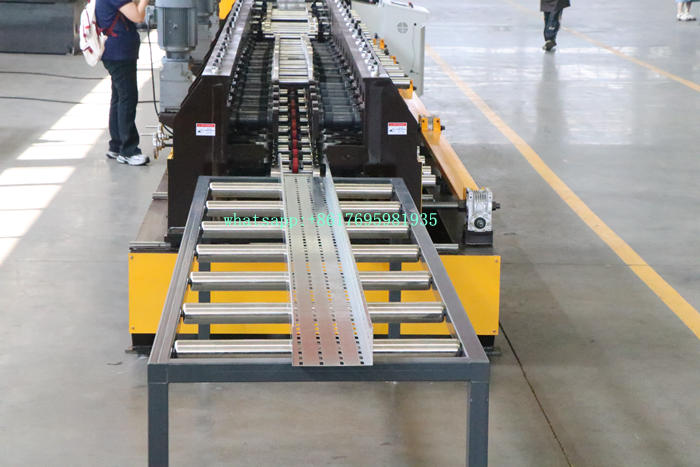

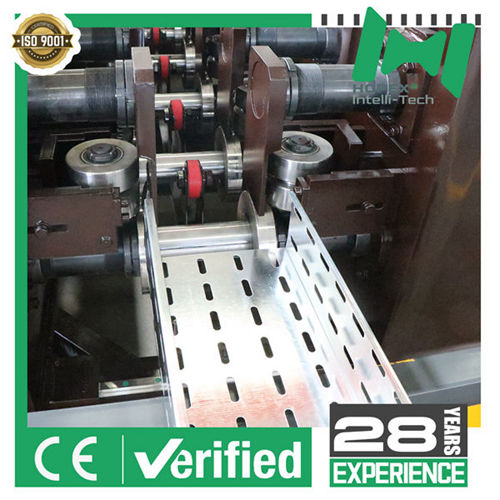

Roll Forming System |
Forming Stations | 18–24 stations |
| Roller Material | GCr15, heat treated | |
| Shaft Material | 45# steel, heat treate | |
| Shaft Diameter | Φ70–90 mm | |
| Drive System | Chain drive | |
|
Punching System |
Punching Type | Hydraulic Punching |
| Punching Position | Before forming | |
| Hole Type | Round / Slotted / Customized | |
| Punching Accuracy | ±0.5 mm | |
|
Control System |
Operation Interface | Touch Screen (CN / EN) |
| Inverter | Famous brand | |
| Electrical Components | Siemens or Schnedier | |
| Data Memory | Parameter memory | |
| Motor & Hydraulic System | Main Motor Power | 11 kW *3 sets |
| Hydraulic Power | 7.5 kW | |
| Power Supply | 380V / 50Hz / 3Ph (Custom) | |
| Hydraulic Oil | 46# Anti-wear Hydraulic Oil | |
| Production size | Line Length | 35 meters |
| Machine Width | 2.5 meters | |
| Machine Weight | 25ton |
This consistent speed is enabled by a robust, fully-welded frame (absorbing vibration) and the power-synchronized chain drive system. Together, they form the foundation for smooth high-speed operation, preventing dimensional inaccuracies or surface flaws caused by instability.
