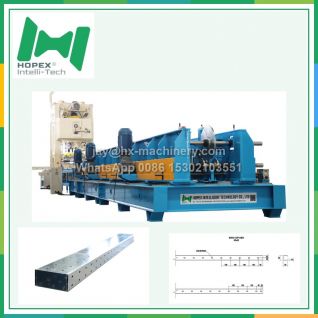

Automated cable tray making machine with built-in punching, forming, and cut-off stations. Width change takes only minutes, so your cable tray production line stays profitable around the clock. It runs continuously with little downtime. Ask for the cable tray manufacturing machine price and delivery time. Custom dies are available on request.
50-300 Cable tray punching machine price
Detail

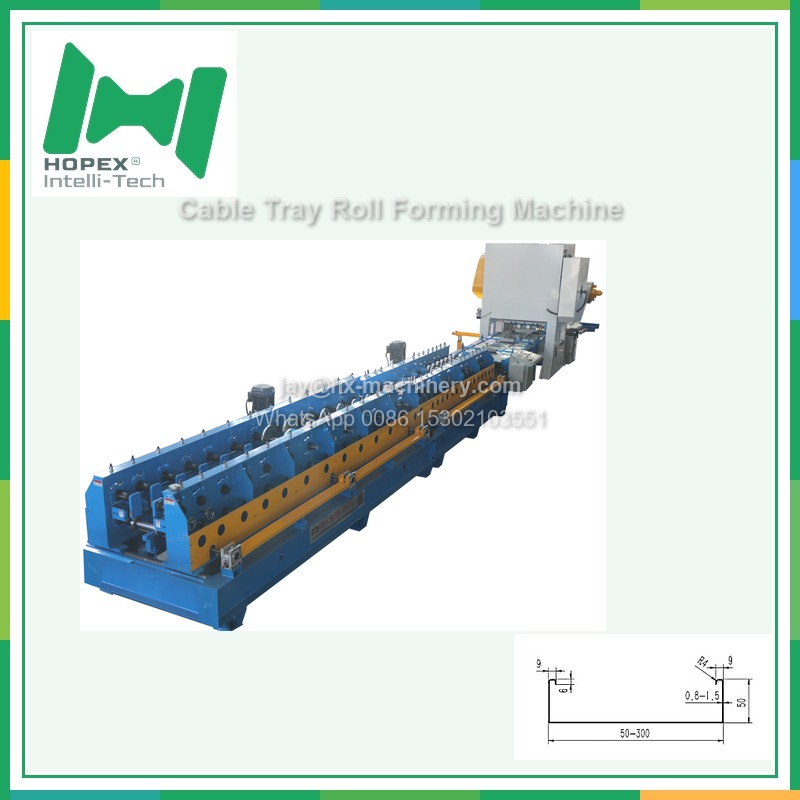

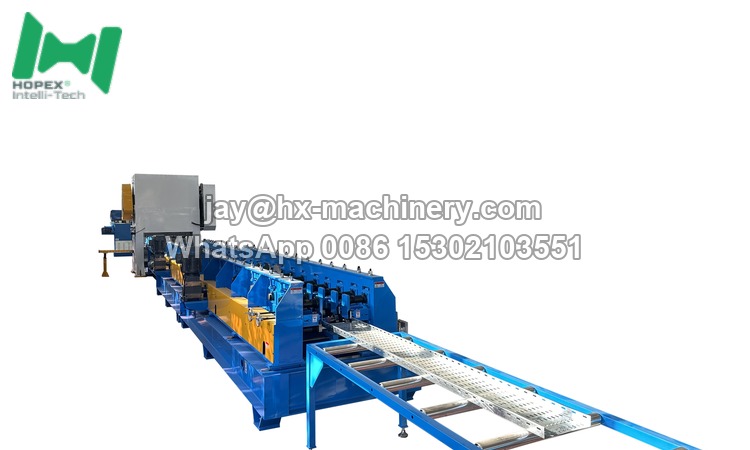

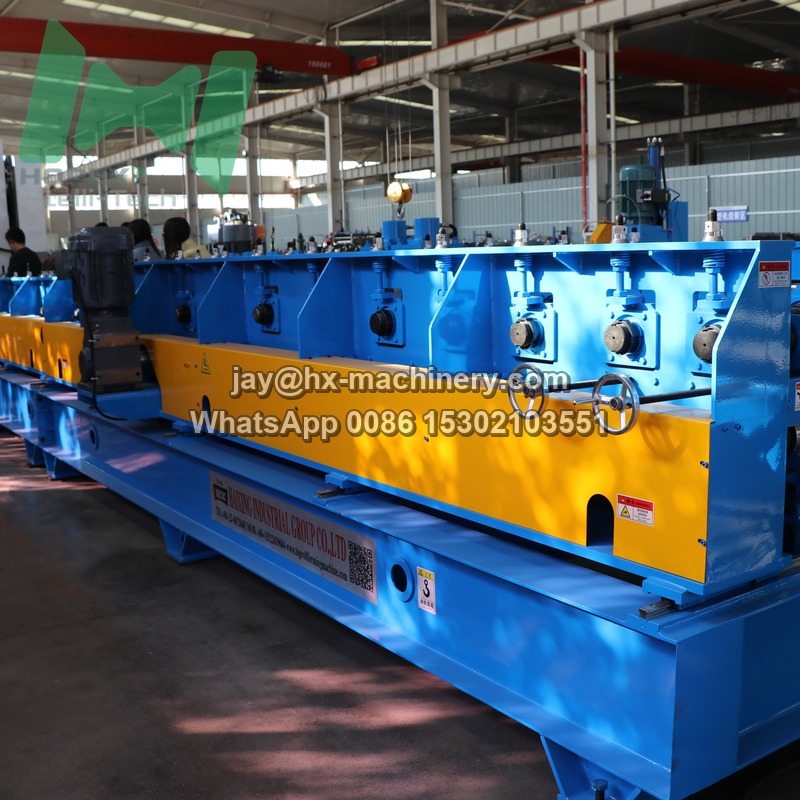

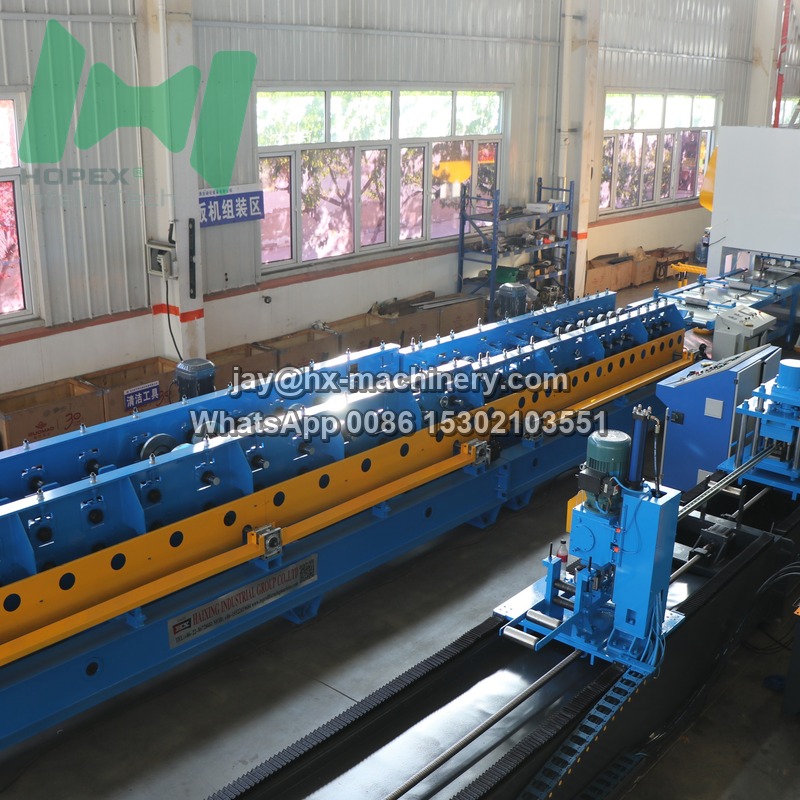

50-300 Perforated cable tray roll forming machine
|
No.
|
50-300Cable tray punching machine
|
|
|
1
|
Rolled strip width | 150-450 mm |
|
2
|
Rolled strip thickness | 0.5 (±0.03)-1.5 (±0.03) mm |
|
3
|
Rolled strip material | Q235 cold-rolled strip, galvanized shee |
|
4
|
Production speed | 5-12 meters/minute (depending on product length and number of punches) |
|
5
|
Rolled workpiece length | 2500 mm |
|
6
|
Voltage parameters | 380V, 50Hz, 3-phase |
|
7
|
Equipment footprint | 30×2.5×2.2 (length×width×height) meters |
|
8
|
Total installed capacity | Approximately 50KW |
Q: 1. How do I adjust the machine for different widths and heights?
For standard lines, it can be adjusted via high-precision manual spacers. However, for our premium series (like the HOPEXcustomized lines), we integrate an automatic motorized width-adjustment system controlled entirely through the PLC touchscreen, moving the forming rollers smoothly to your desired dimensions within seconds.
Q: 2. Is the width adjustment manual or fully automatic via PLC?
We offer both options based on your budget. Our advanced cable tray and housing profile lines feature fully automatic PLC one-key changeover. The operator simply inputs the parameters on the screen, and the machine adjusts itself automatically, eliminating human error.
3. How long does a standard size/profile changeover take?
With our traditional manual adjustment lines, it takes about 1-2 hours. With our upgraded Smart PLC One-Key Changeover System, a complete width adjustment (e.g., from 100mm to 600mm for cable trays) takes less than 2 minutes, drastically reducing your downtime and boosting factory productivity.
