100-600cable tray making machine

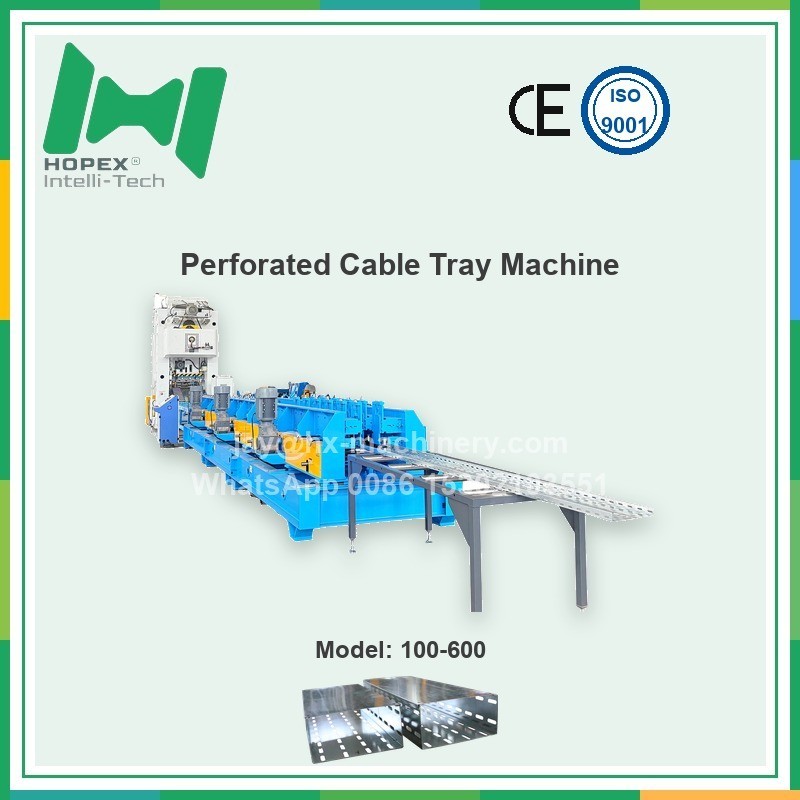

CNC punching and forming shorten setup time and cut scrap. The perforated cable tray machine makes even slot patterns for airflow, drainage, and safe cable support. Programs are easy to edit, so repeat jobs run the same every time. Upgrade to cnc cable tray methods for stable precision on long runs. Service and training are included.
100-600 cable tray forming machine
Detail
100-600 Cable tray punching machine
|
No.
|
100-600Cable tray punching machine
|
|
|
1
|
Rolled strip width | 200-750 mm |
|
2
|
Rolled strip thickness | 0.7 (±0.03)–2.0 (±0.03) mm |
|
3
|
Rolled strip material | Q235B cold-rolled strip, galvanized strip |
|
4
|
Online punching speed | 6-10 meters/minute (depending on the number of punches) |
|
5
|
Rolled workpiece length | 3000 mm |
|
6
|
Equipment footprint | 35 × 1.5 × 1.6 (length × width × height) meters. |
|
7
|
Voltage parameters | 380V, 50Hz, 3-phase. |
|
8
|
Hydraulic oil | 46# hydraulic oil |
Q: 1. How do I adjust the machine for different widths and heights?
For standard lines, it can be adjusted via high-precision manual spacers. However, for our premium series (like the HOPEXcustomized lines), we integrate an automatic motorized width-adjustment system controlled entirely through the PLC touchscreen, moving the forming rollers smoothly to your desired dimensions within seconds.
Q: 2. Is the width adjustment manual or fully automatic via PLC?
We offer both options based on your budget. Our advanced cable tray and housing profile lines feature fully automatic PLC one-key changeover. The operator simply inputs the parameters on the screen, and the machine adjusts itself automatically, eliminating human error.
3. How long does a standard size/profile changeover take?
With our traditional manual adjustment lines, it takes about 1-2 hours. With our upgraded Smart PLC One-Key Changeover System, a complete width adjustment (e.g., from 100mm to 600mm for cable trays) takes less than 2 minutes, drastically reducing your downtime and boosting factory productivity.
