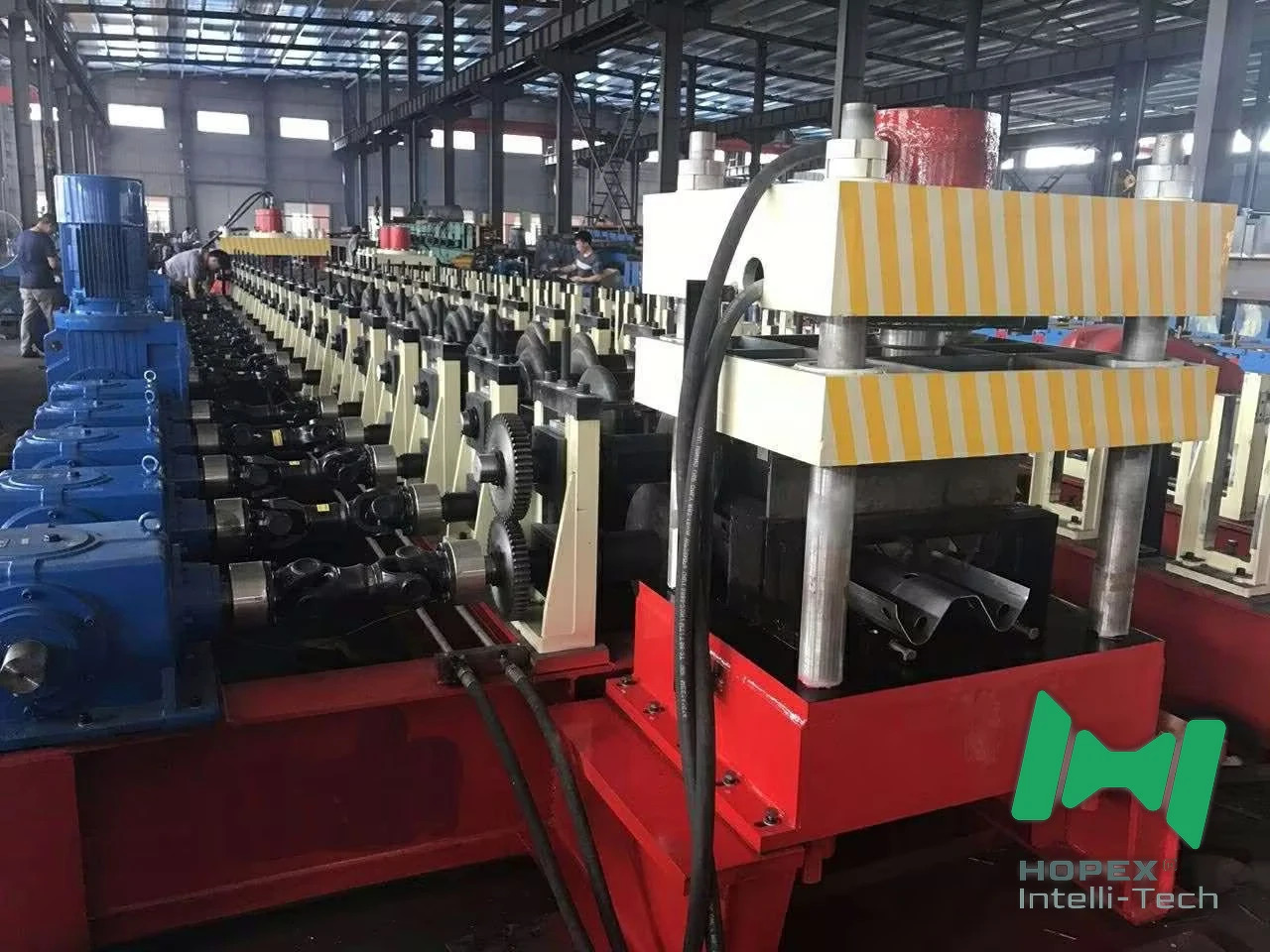

Highway Guardrail Making Machine — From Coil to Finished Panel

Highway Guardrail Making Machine — From Coil to Finished Panel

Product ID : highway guardrail making machine

Product Tags :

Product Attributes :

Hopex highway guardrail making machine: 15-18 stations, 2.4-4.0mm strip, 720mm feed, 5-15m/min, Cr12 blades, dual 22kW motors, 2-year warranty.

Product Description

HOPEX-Highway Guardrail

Guardrails are among the most mass-produced safety products on a road project, yet their quality depends entirely on how they are made. This highway guardrail making machine exists to remove variability from your production.

The Problem with Separated Fabrication

Traditional fabrication handles guardrail production in separate steps: cutting sheets, pressing profiles, punching holes, then moving parts between machines. Every transfer is a chance for misalignment and dimensional drift. Across thousands of panels, small inconsistencies multiply into rejected batches and delayed deliveries.

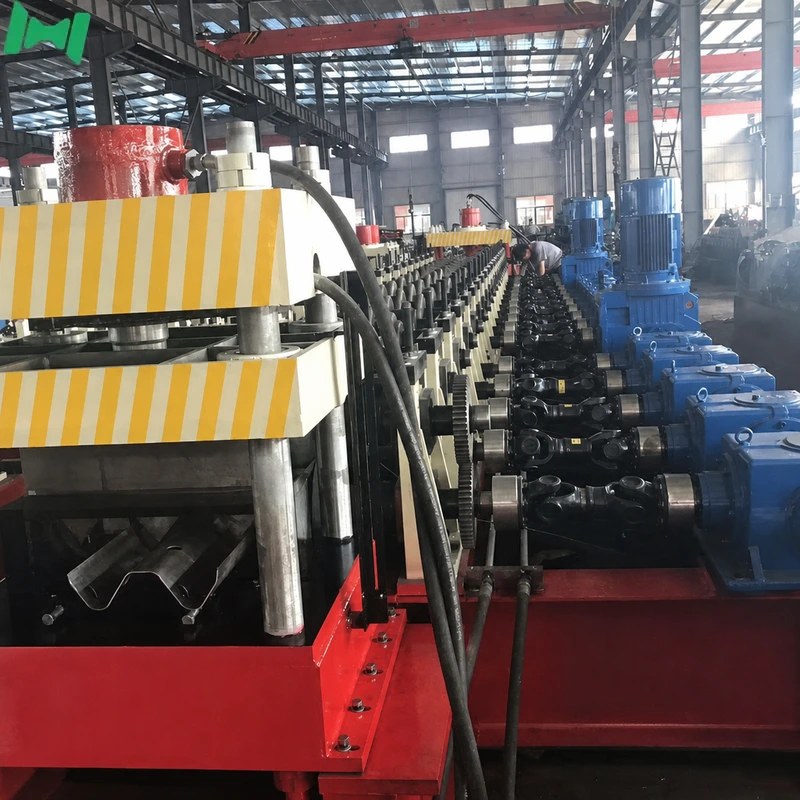

highway guardrail making machine continuous forming line

The Roll Forming Answer

Roll forming shapes steel by gradual bending rather than heavy pressing. The strip travels through 15–18 stations and each adds a small amount of curvature. The material keeps its mechanical strength, the coating stays intact, and profile dimensions hold within tight limits.

Four Steps, One Pass

Uncoiling — the coil holder unwinds the strip and the leveler flattens it.
Roll forming — 15–18 stations build the W-profile progressively.
Punching — bolt holes are punched in synchronization with the moving strip.
Cutting — the Cr12 blade (HRC 58–62) cuts each panel to length automatically.

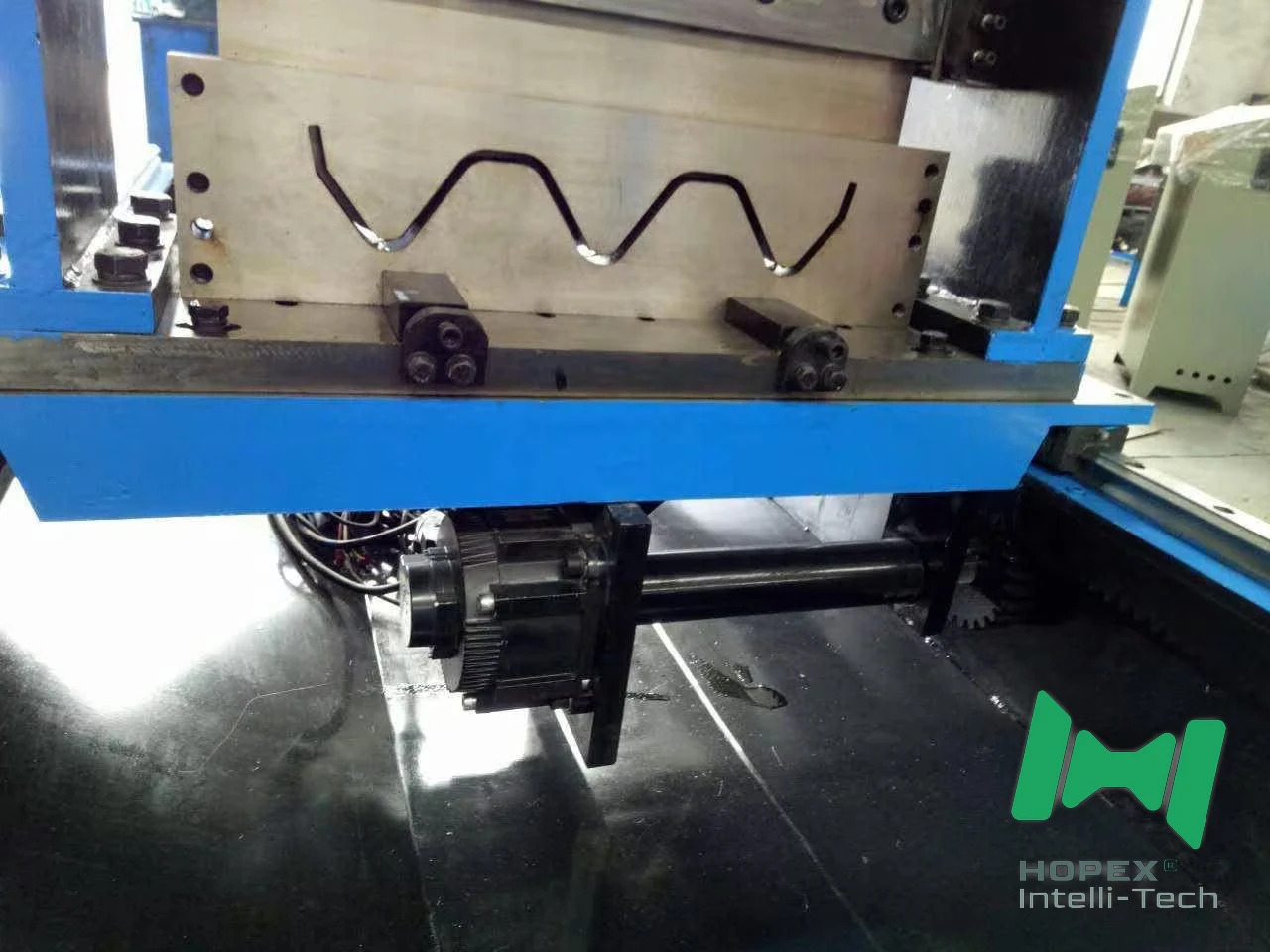

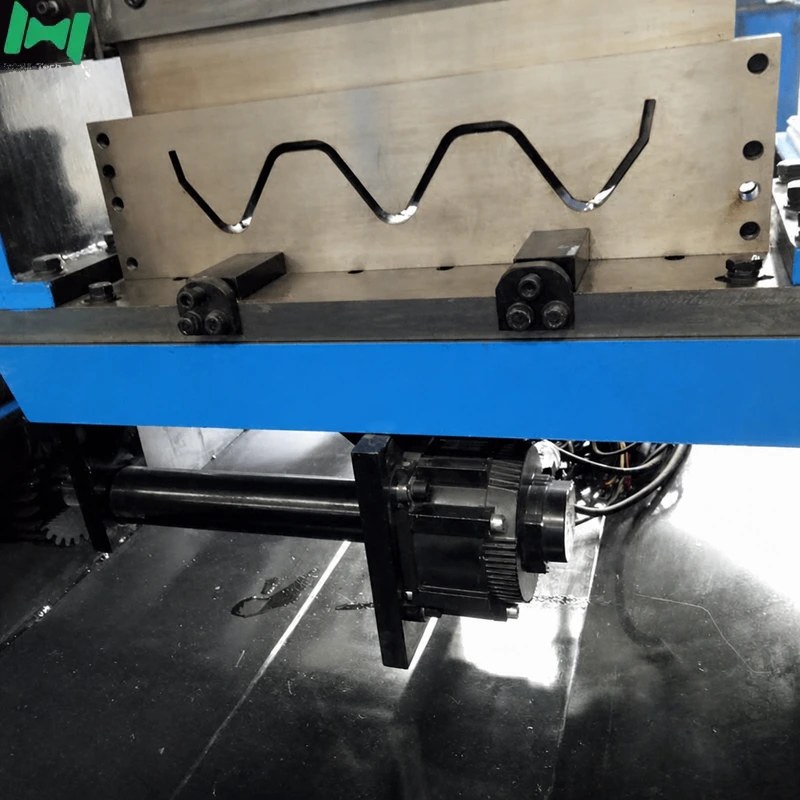

W-beam guardrail forming die on the making machine

Machine Specifications

Parameter	Value	Note
Product name	highway guardrail roll forming machine	W-profile highway barrier panels
Model number	hopex-guardrail roll forming machine	HOPEX standard configuration
Machine type	Roll Forming Machine	Cold roll forming, continuous line
Suitable material	Q235, galvanized steel / stainless steel / zinc-aluminum-magnesium alloy	Four material groups, no tooling change
Forming thickness	2.4 – 4.0 mm (0.09 – 0.16 in)	Covers common guardrail standards
Feeding width	720 mm (28.35 in)	Customizable to your coil width
Forming speed	5 – 15 m/min (16.40 – 49.21 ft/min)	Adjustable to material grade
Rolling station	15 – 18 rows	Progressive forming sequence
Cutting blade	Cr12, quenched treatment HRC 58–62	Edge hardness for long runs
Diameter of shaft	120 mm	Low deflection under forming load
Main motor power	Dual 22 kW motors with K107 reducer	Steady torque across speed range
Voltage	380 V	Three phase supply
Dimension (L×W×H)	14000 × 2400 × 1200 mm (551.18 × 94.49 × 47.24 in)	Line footprint
Weight	60000 kg (132277.36 lb)	Frame mass for vibration damping
Core components	Engine, PLC, Gearbox, Gear, Pump, Bearing, Motor, Pressure Vessel	Established component suppliers
Warranty	2 years	Parts replacement and repair
Place of origin	Tianjin, China	HOPEX manufacturing base

Built to Run Every Day

Road construction is seasonal and deadlines do not move. The 120 mm shafts carry forming rollers with minimal deflection, the dual 22 kW motors with K107 reducers supply steady torque at 5–15 m/min, and the Cr12 blades hold HRC 58–62 edge hardness so blade changes stay infrequent even on galvanized strip.
