W-Beam Guardrail Roll Forming Machine

Product ID : W-beam guardrail roll forming machine

Product Tags :

Product Attributes :

W-beam guardrail roll forming machine: 15-18 stations on 120mm shafts, 2.4-4.0mm strip, Cr12 HRC58-62 blades, PLC control, 2-year warranty.

Product Description

HOPEX-Highway Guardrail

A W-beam guardrail roll forming machine is only as good as the way its stations work together. This page walks the line from the coil holder at the entry to the stacked panels at the discharge end.

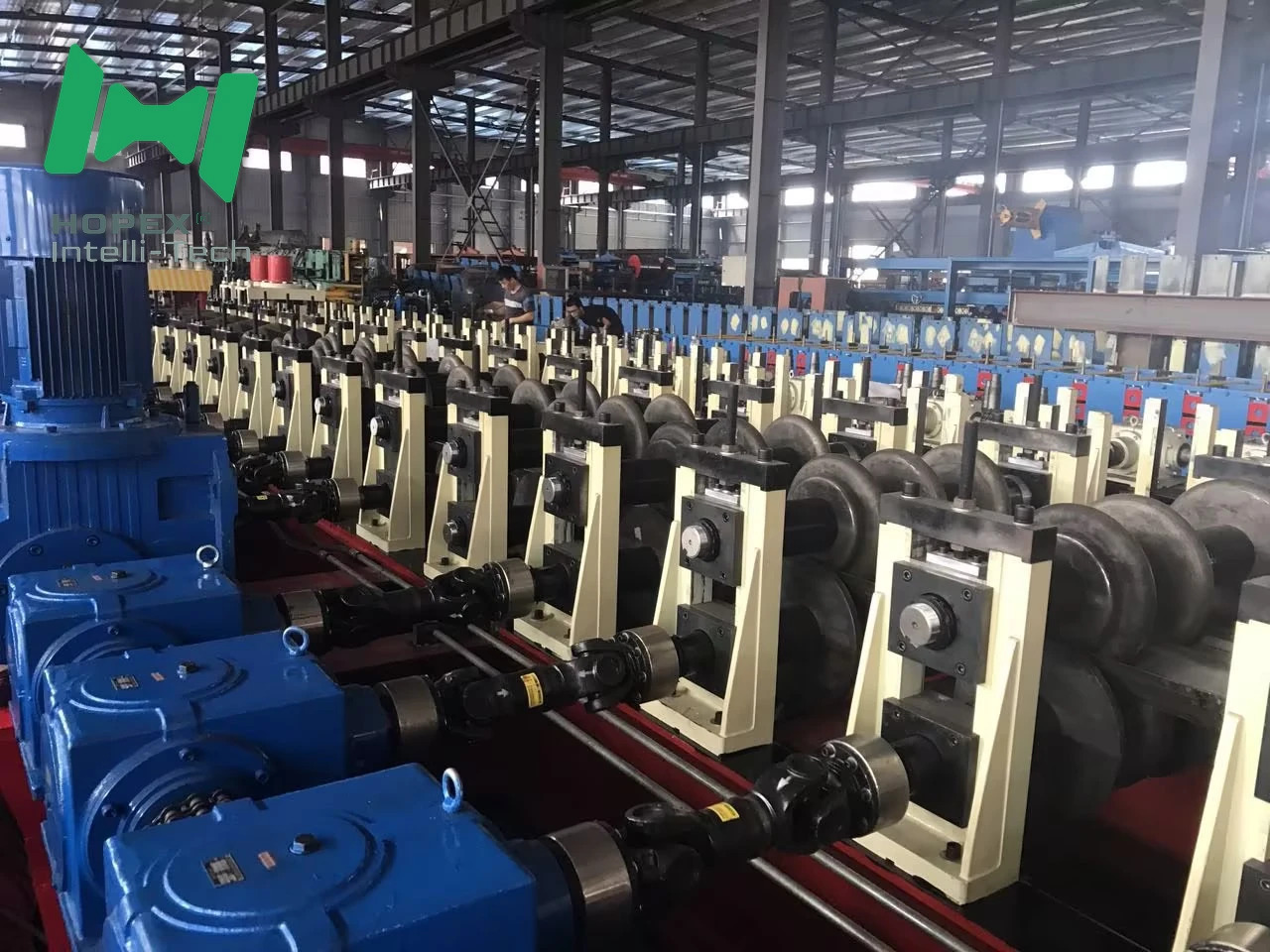

W-beam guardrail roll forming machine full line layout

Entry Section: Uncoiling, Leveling, Feeding

The strip is unwound from the coil, residual curvature is removed, and the sheet is guided into the first forming station at a controlled feed rate. A flat, straight entry is the foundation of a consistent profile — no downstream station can fully correct a twisted entry.

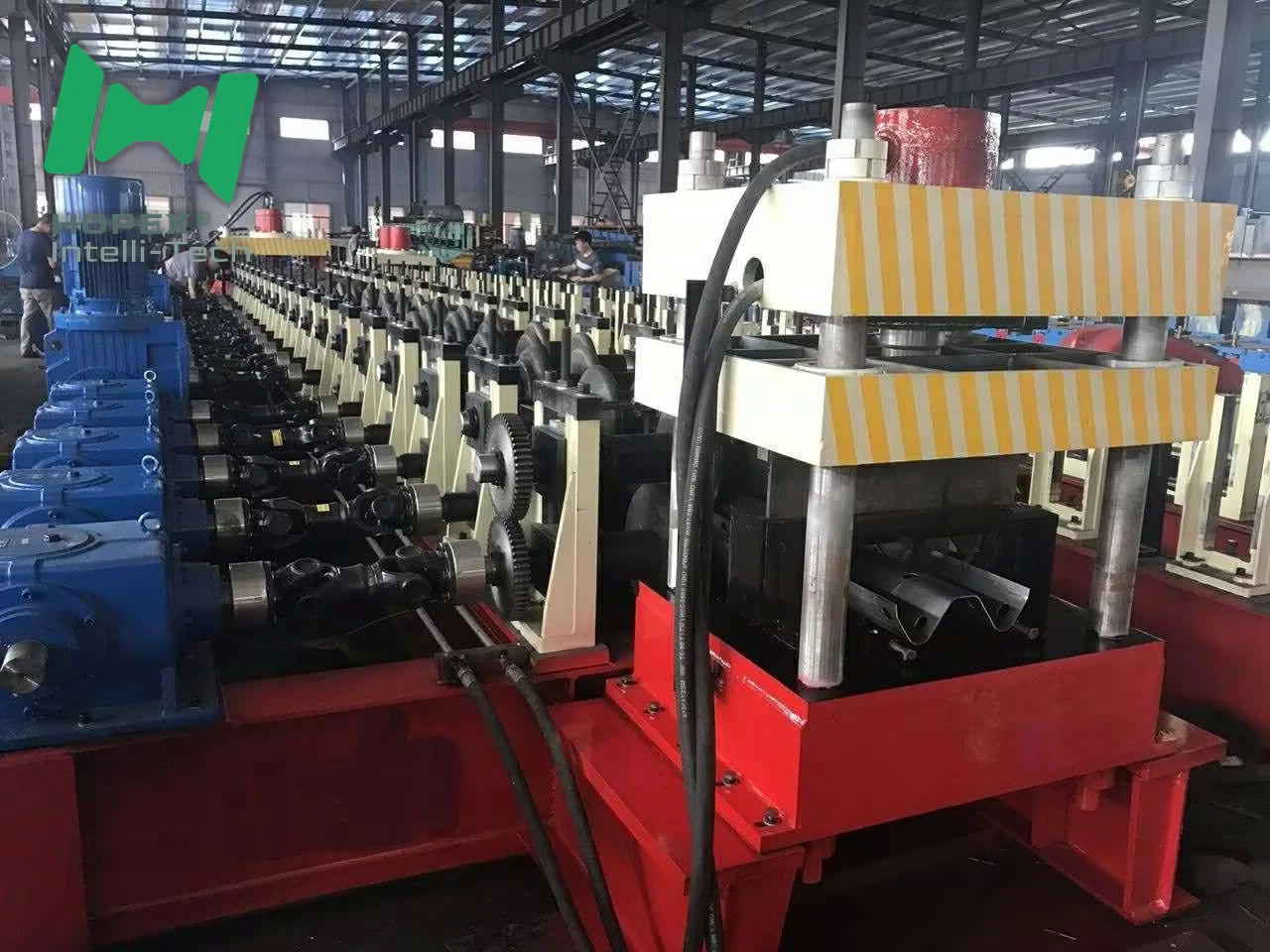

uncoiling and feeding section of the W-beam guardrail line

Forming Section: 15 – 18 Stations

Each station bends the strip by a small angle and the accumulated bends build the full W-beam profile. Forming rollers are carried on 120 mm shafts, keeping roller pairs rigid and evenly loaded even when running 4.0 mm material.

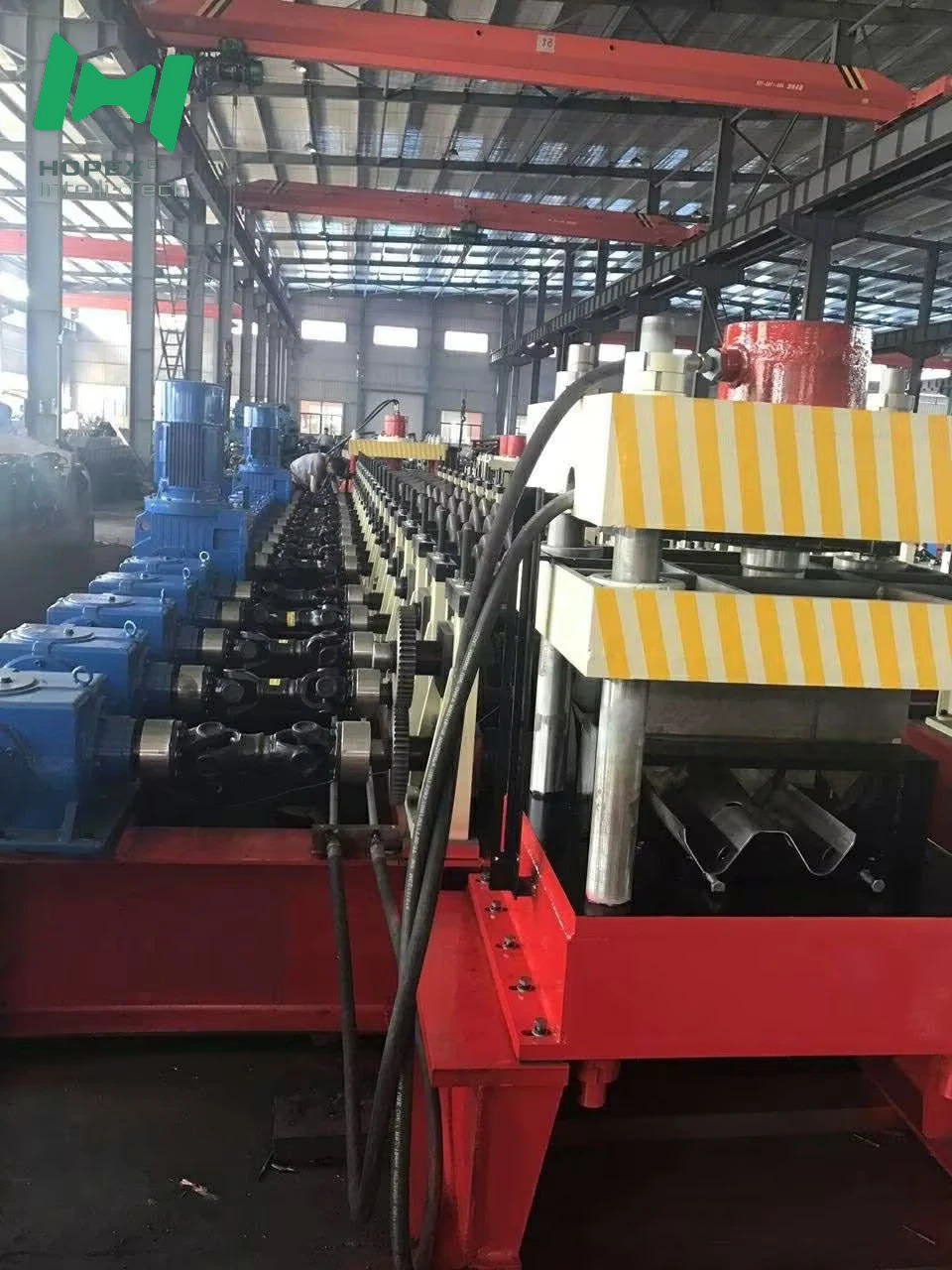

W-beam guardrail forming die and roller tooling

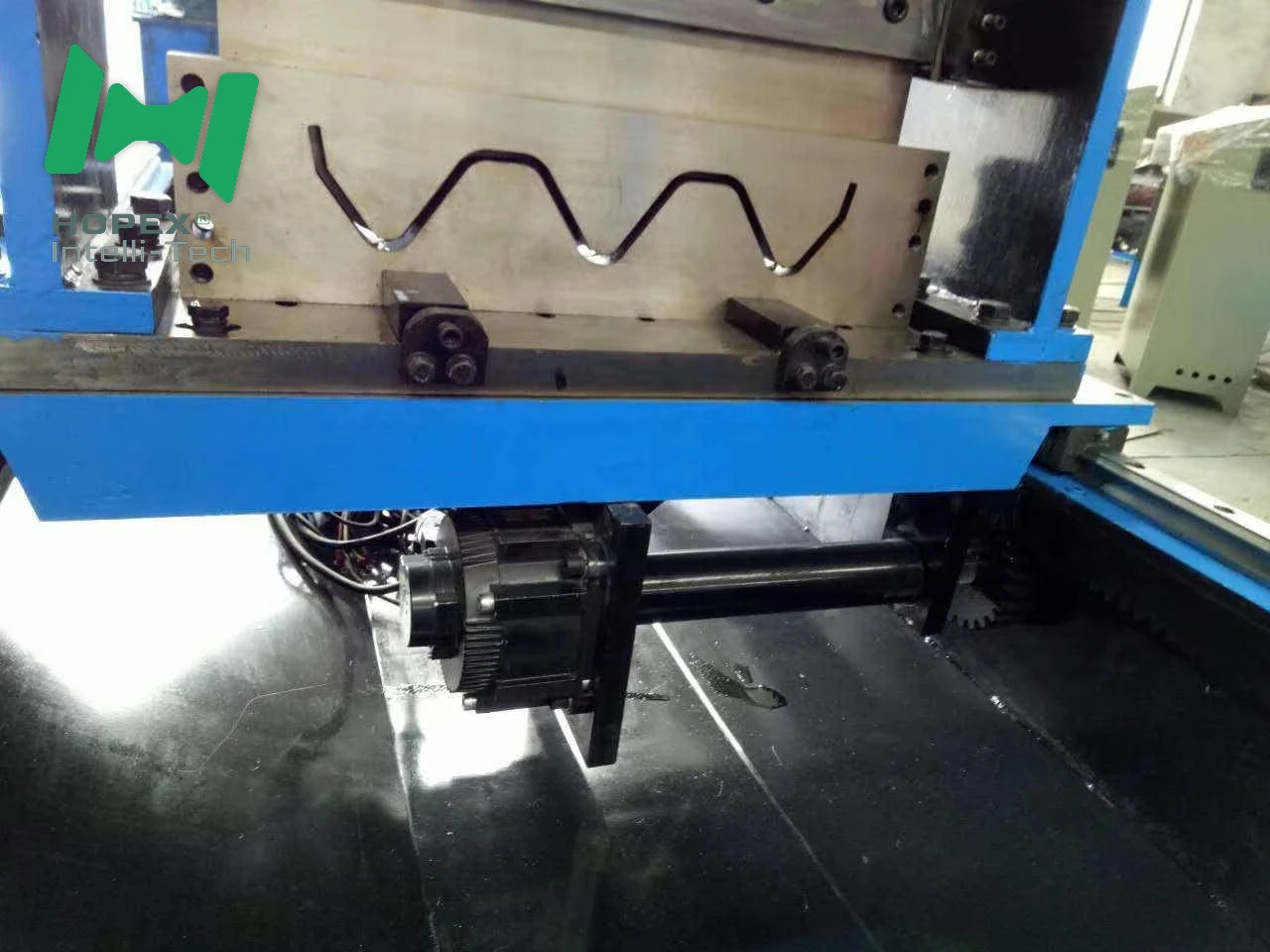

Punching and Cut-to-Length

After forming, mounting holes are punched in step with strip speed, then the cutting unit separates panels with Cr12 blades quenched to HRC 58–62. Because both are synchronized with forming speed, hole spacing and panel length hold tolerance from 5 to 15 m/min.

Drive and Control

Subsystem	Configuration	Function
Main forming drive	Dual 22 kW motors with K107 reducer	Drives the 15 – 18 roller stations
Control system	PLC	Coordinates speed, punch position, cut timing
Power supply	380 V	Three phase
Core components	Engine, Gearbox, Gear, Pump, Bearing, Motor, Pressure Vessel	Established suppliers

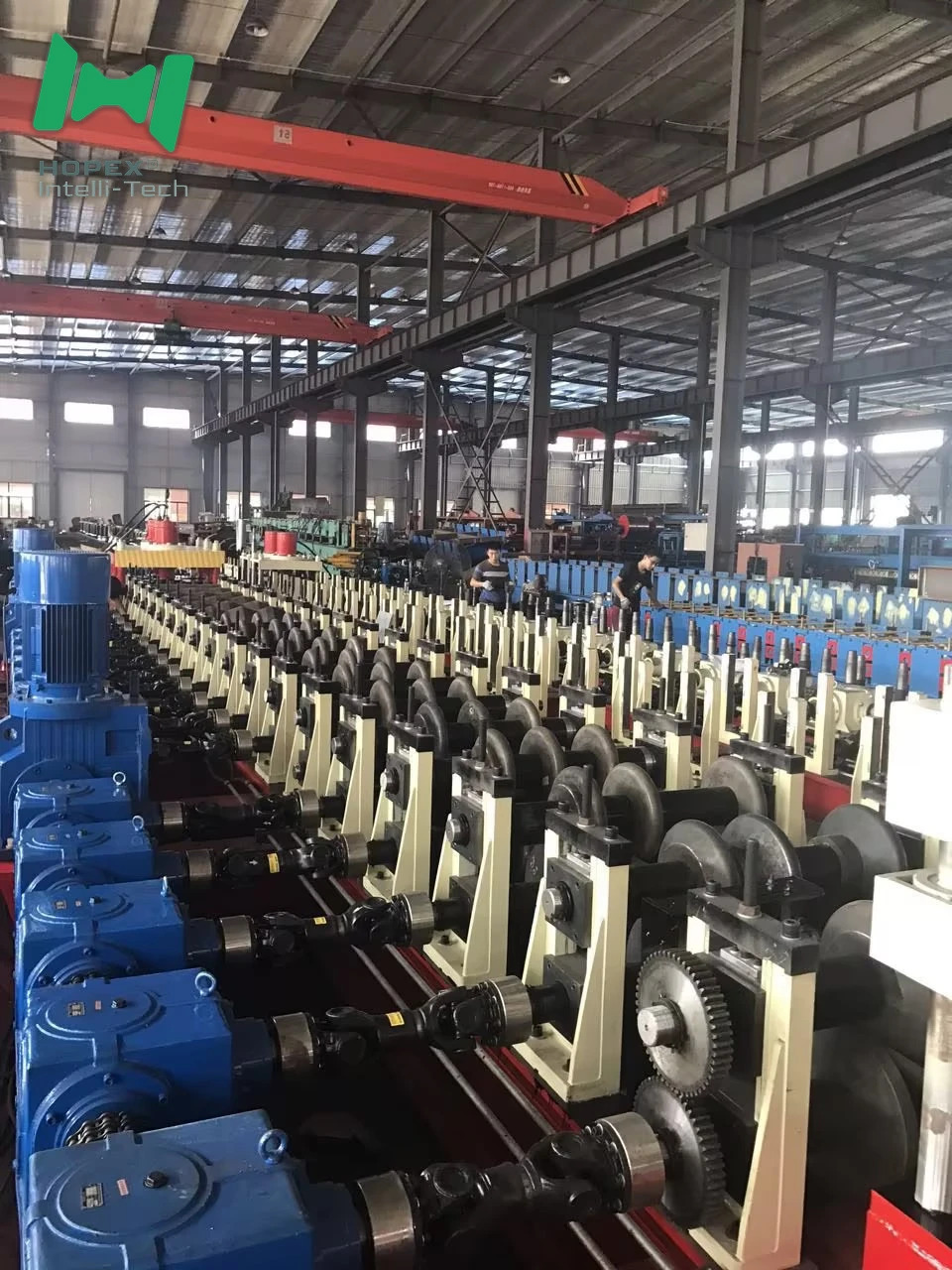

drive train and reducers of the W-beam guardrail machine

Technical Data at a Glance

Parameter	Value	Note
Product name	highway guardrail roll forming machine	W-profile highway barrier panels
Model number	hopex-guardrail roll forming machine	HOPEX standard configuration
Machine type	Roll Forming Machine	Cold roll forming, continuous line
Suitable material	Q235, galvanized steel / stainless steel / zinc-aluminum-magnesium alloy	Four material groups, no tooling change
Forming thickness	2.4 – 4.0 mm (0.09 – 0.16 in)	Covers common guardrail standards
Feeding width	720 mm (28.35 in)	Customizable to your coil width
Forming speed	5 – 15 m/min (16.40 – 49.21 ft/min)	Adjustable to material grade
Rolling station	15 – 18 rows	Progressive forming sequence
Cutting blade	Cr12, quenched treatment HRC 58–62	Edge hardness for long runs
Diameter of shaft	120 mm	Low deflection under forming load
Main motor power	Dual 22 kW motors with K107 reducer	Steady torque across speed range
Voltage	380 V	Three phase supply
Dimension (L×W×H)	14000 × 2400 × 1200 mm (551.18 × 94.49 × 47.24 in)	Line footprint
Weight	60000 kg (132277.36 lb)	Frame mass for vibration damping
Core components	Engine, PLC, Gearbox, Gear, Pump, Bearing, Motor, Pressure Vessel	Established component suppliers
Warranty	2 years	Parts replacement and repair
Place of origin	Tianjin, China	HOPEX manufacturing base

Installation and Training

The machine ships with video outgoing inspection and a machinery test report. On-site installation guidance and operator training help your team reach stable production quickly, backed by the 2-year warranty.
