Road Safety Guardrail Machine for Every Road Profile

Product ID : road safety guardrail machine

Product Tags :

Product Attributes :

Hopex road safety guardrail machine: 15-18 stations, 2.4-4.0mm strip, 720mm feed, 5-15m/min, multi-material, 2-year warranty.

Product Description

HOPEX-Highway Guardrail

Guardrail demand comes from highways, national roads, provincial roads, urban streets and rural roads — each with its own traffic volume and material specification. A road safety guardrail machine earns its place when one line can feed all of them.

road safety guardrail panels produced on the line

Highways

Highway barriers face high impact speeds and long maintenance-free service life. Panels are typically galvanized steel or zinc-aluminum-magnesium alloy in the 2.4–4.0 mm range, where coating integrity matters as much as profile geometry. Progressive forming preserves that coating.

National and Provincial Roads

These projects combine volume with variety: different panel lengths, hole patterns and coating requirements by region. Synchronized punching keeps hole spacing accurate regardless of speed, and the 5–15 m/min range lets you run thick material carefully or push lighter strip to meet schedules.

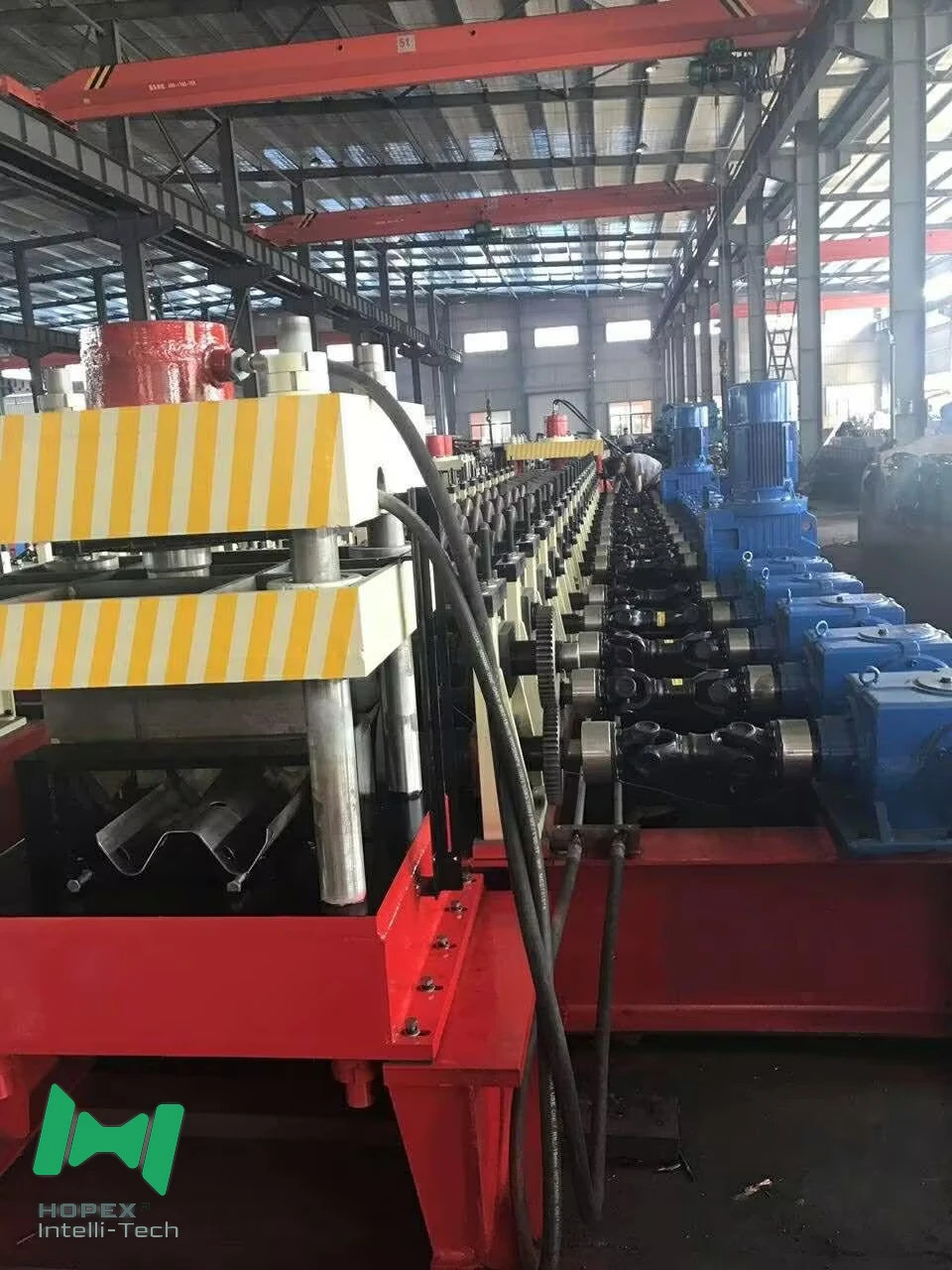

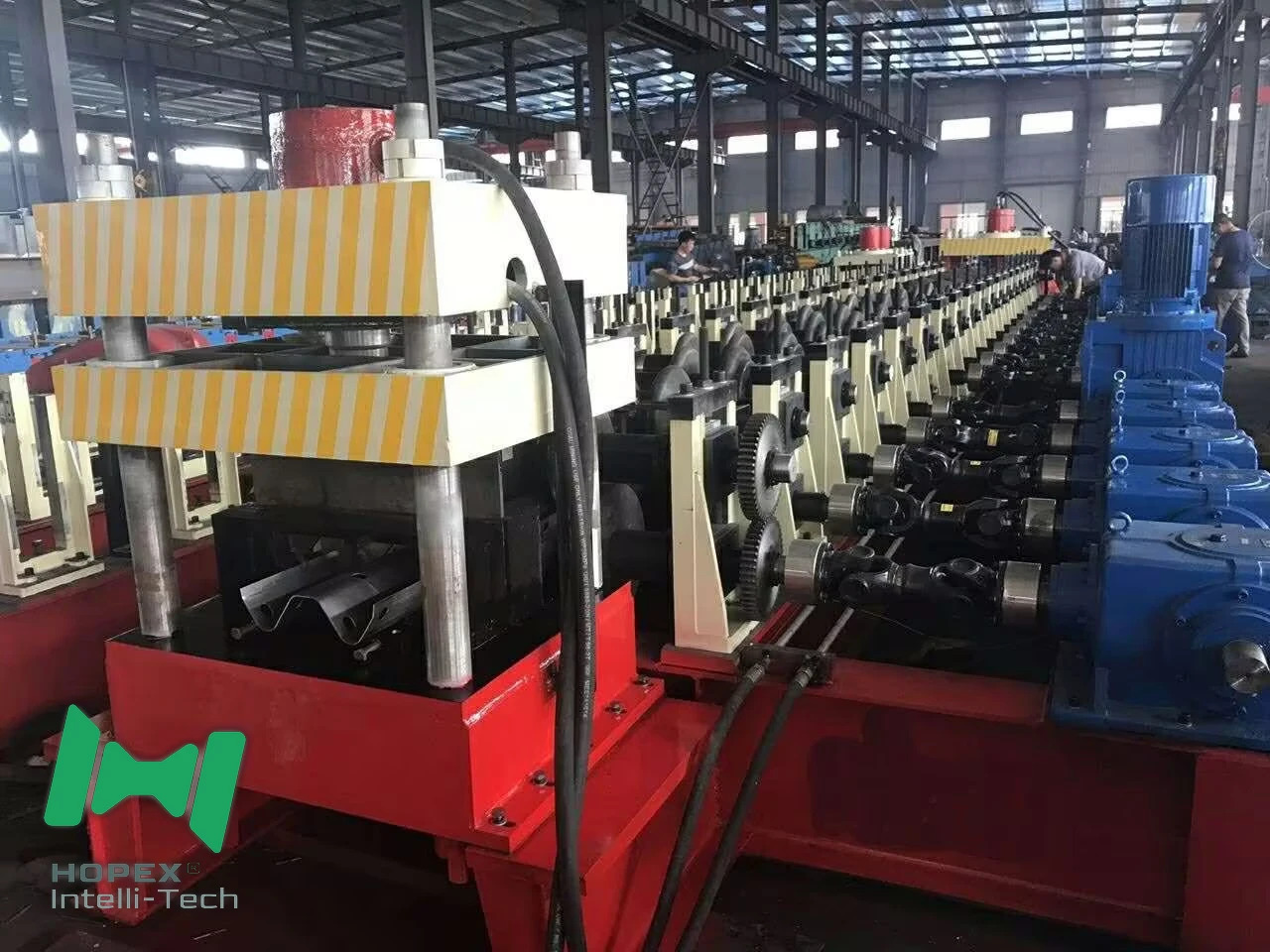

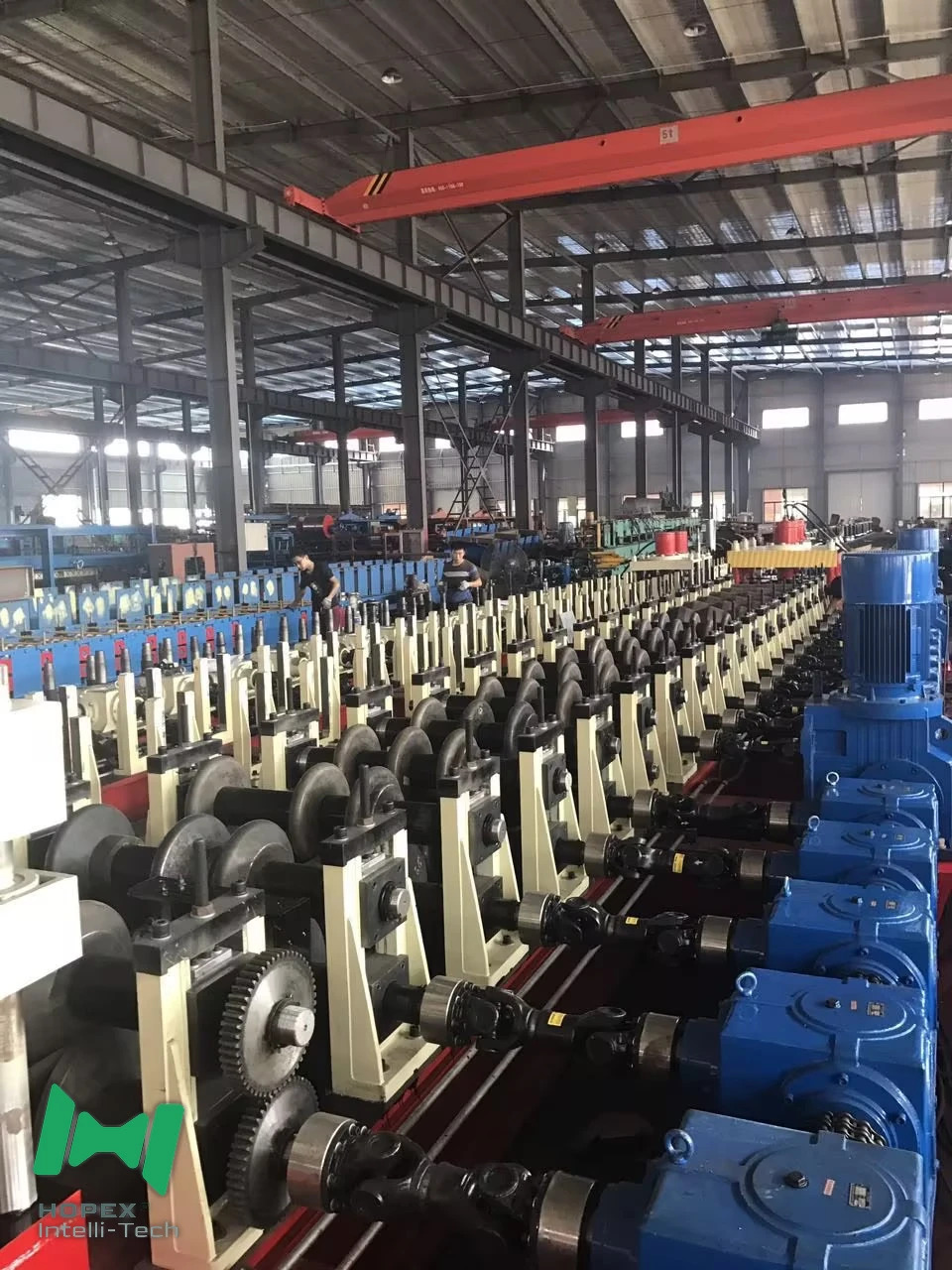

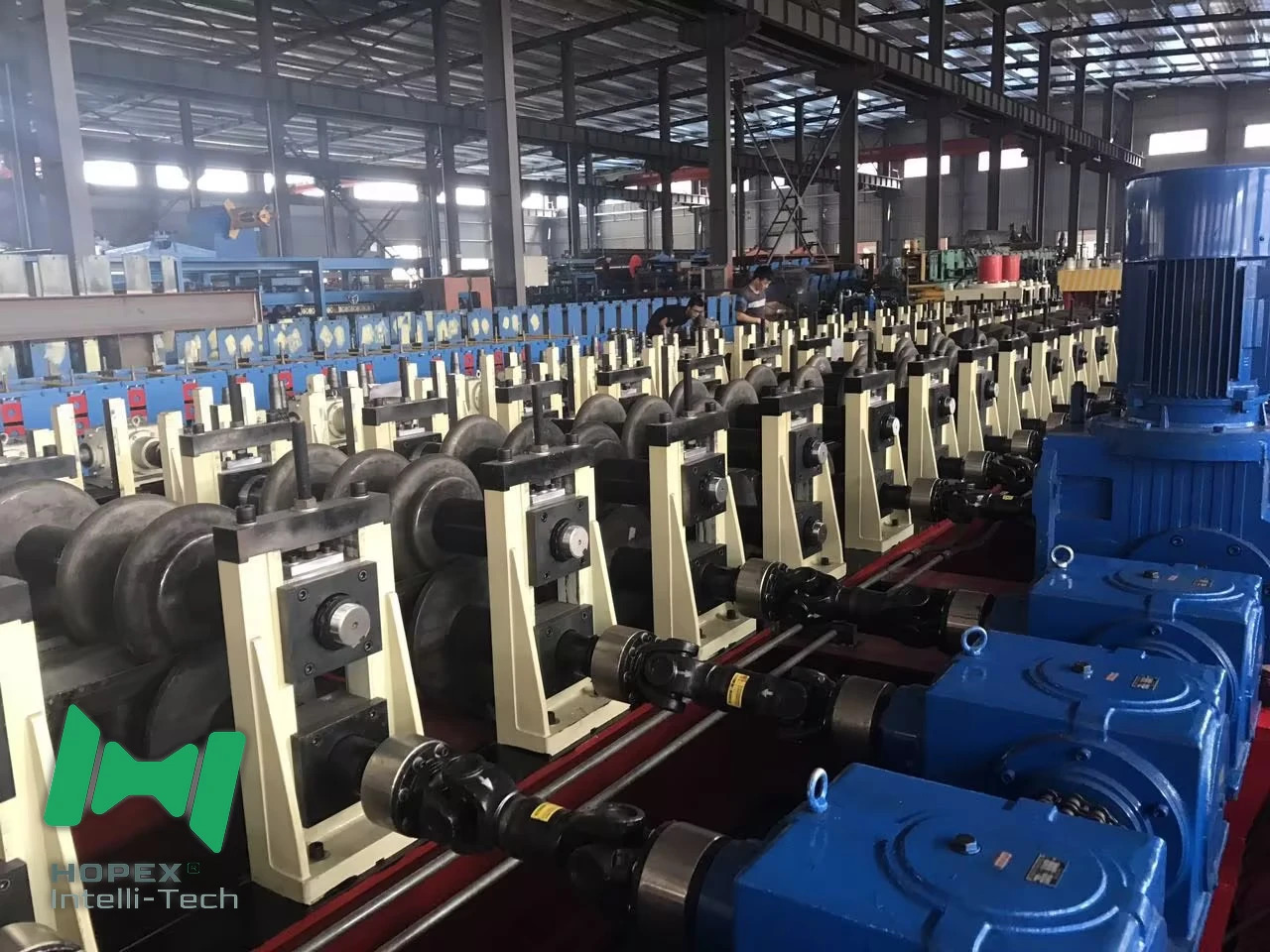

road safety guardrail machine production line in the workshop

Urban and Rural Roads

Urban and rural projects specify shorter panels and quicker turnaround. Change the cutting length on the PLC and the line produces the next batch without mechanical reconfiguration. Feeding width customization covers non-standard coil widths in local markets.

Material Options in One Line

Material	Typical application	Thickness range
Q235 carbon steel	General road projects, galvanized or painted later	2.4 – 4.0 mm
Galvanized steel	Highways and national roads, corrosion resistance	2.4 – 4.0 mm
Stainless steel	Coastal and high-corrosion environments	2.4 – 4.0 mm
Zinc-aluminum-magnesium alloy	Long-life barriers with enhanced edge protection	2.4 – 4.0 mm

Specification Reference Table

Parameter	Value	Note
Product name	highway guardrail roll forming machine	W-profile highway barrier panels
Model number	hopex-guardrail roll forming machine	HOPEX standard configuration
Machine type	Roll Forming Machine	Cold roll forming, continuous line
Suitable material	Q235, galvanized steel / stainless steel / zinc-aluminum-magnesium alloy	Four material groups, no tooling change
Forming thickness	2.4 – 4.0 mm (0.09 – 0.16 in)	Covers common guardrail standards
Feeding width	720 mm (28.35 in)	Customizable to your coil width
Forming speed	5 – 15 m/min (16.40 – 49.21 ft/min)	Adjustable to material grade
Rolling station	15 – 18 rows	Progressive forming sequence

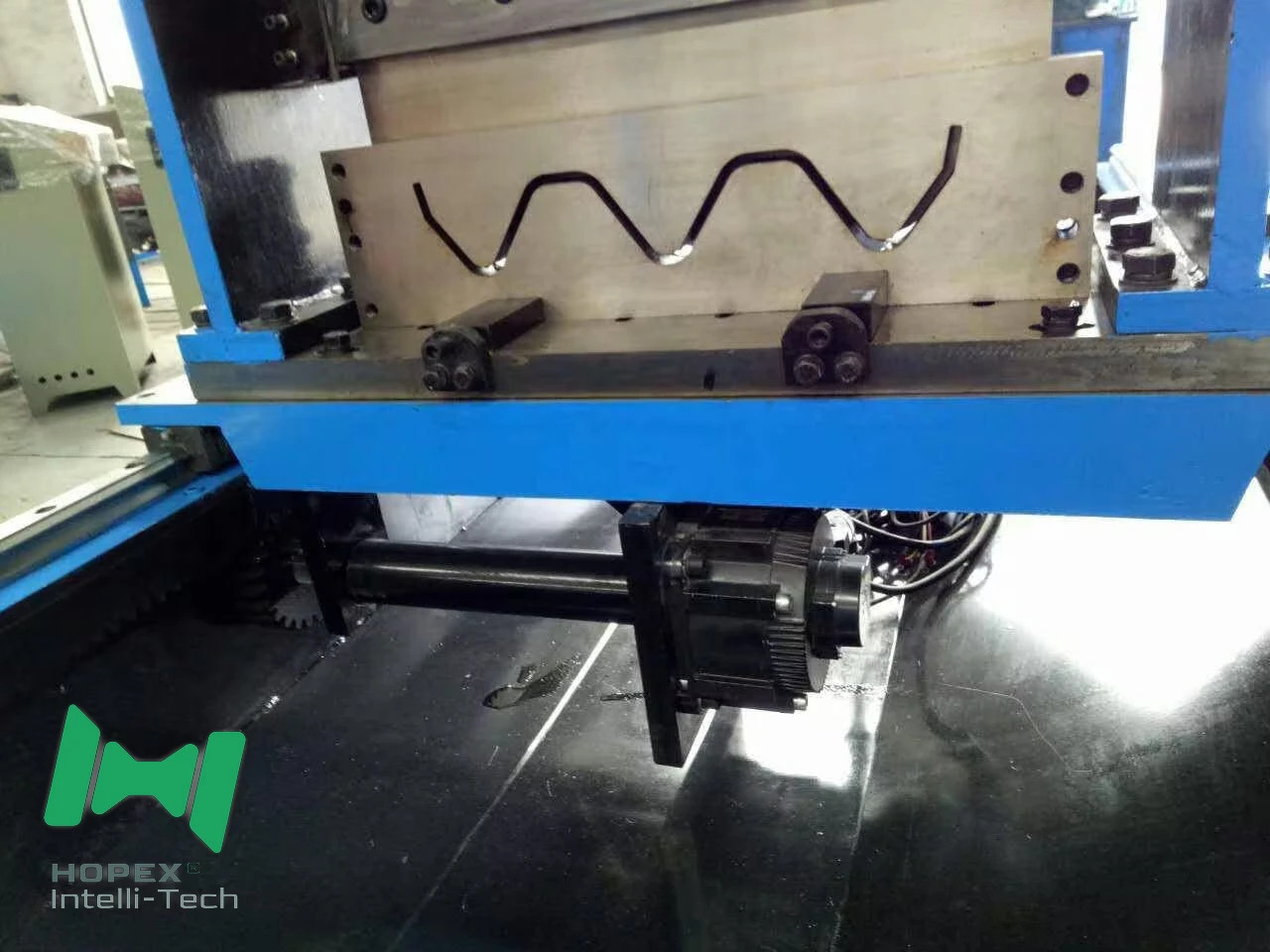

Cutting blade	Cr12, quenched treatment HRC 58–62	Edge hardness for long runs
Diameter of shaft	120 mm	Low deflection under forming load
Main motor power	Dual 22 kW motors with K107 reducer	Steady torque across speed range
Voltage	380 V	Three phase supply
Dimension (L×W×H)	14000 × 2400 × 1200 mm (551.18 × 94.49 × 47.24 in)	Line footprint
Weight	60000 kg (132277.36 lb)	Frame mass for vibration damping
Core components	Engine, PLC, Gearbox, Gear, Pump, Bearing, Motor, Pressure Vessel	Established component suppliers
Warranty	2 years	Parts replacement and repair
Place of origin	Tianjin, China	HOPEX manufacturing base

Delivery and Support

Quantity	Lead time
1 set	30 days
2 – 5 sets	45 days
Above 5 sets	Confirmed with our engineers

Every machine leaves Tianjin with video outgoing inspection and a machinery test report. Delivery includes installation guidance, operator training and a 2-year warranty.
