Highway Guardrail Roll Forming Machine — 720 mm W-Beam Line

Highway Guardrail Roll Forming Machine — 720 mm W-Beam Line

Product ID : highway guardrail roll forming machine

Product Tags :

Product Attributes :

Hopex highway guardrail roll forming machine: 15-18 stations, 2.4-4.0mm strip, 720mm feed, 5-15m/min forming, dual 22kW motors, PLC control, 2-year warranty.

Product Description

HOPEX-Highway Guardrail

Road safety starts with a barrier that holds its line under impact. The HOPEX highway guardrail roll forming machine turns flat steel coil into finished W-profile panels in one continuous pass, combining 15–18 forming stations, synchronized punching and automatic cut-to-length into a single integrated line.

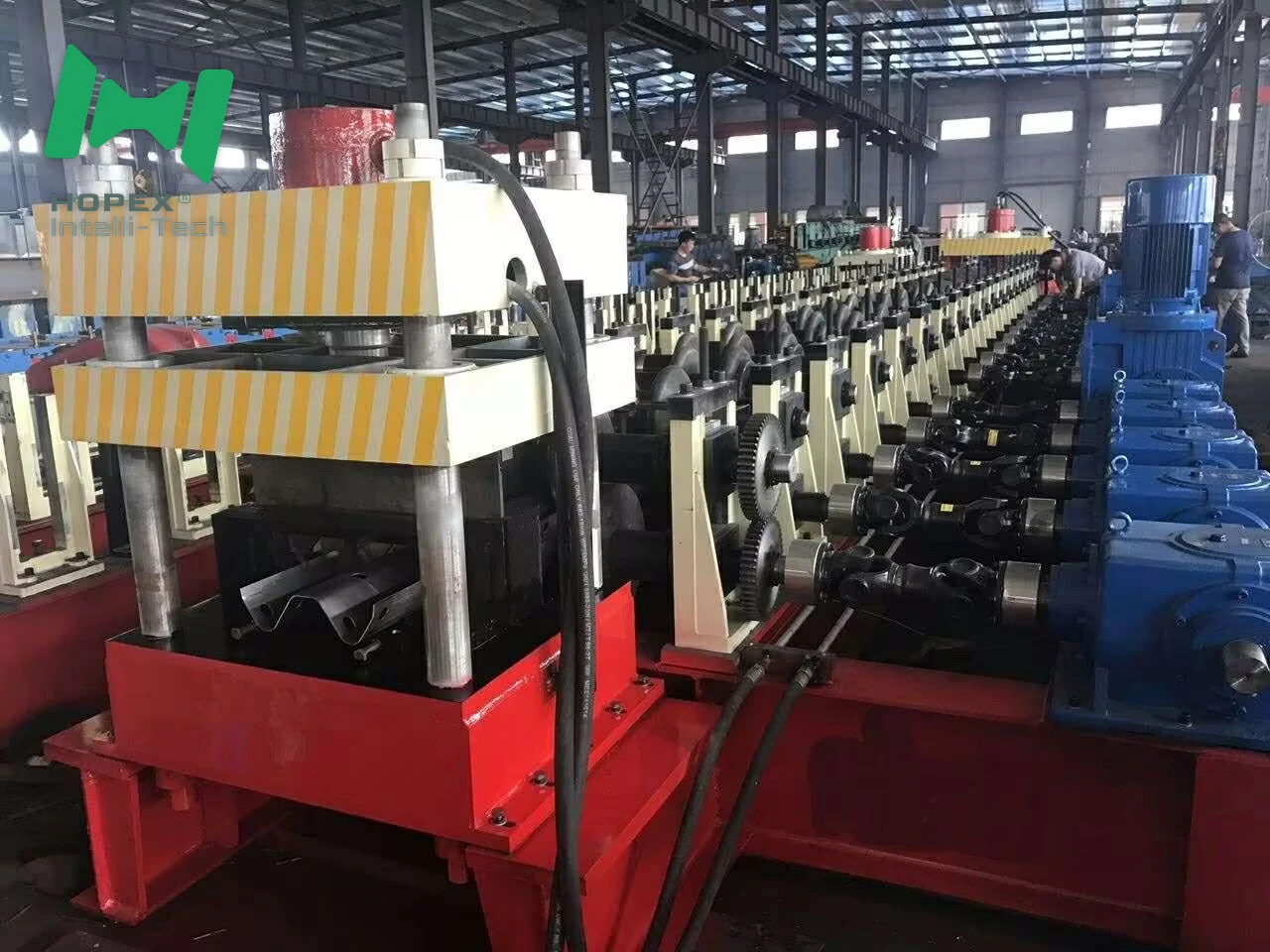

highway guardrail roll forming machine complete production line

Full Specification Sheet

Parameter	Value	Note
Product name	highway guardrail roll forming machine	W-profile highway barrier panels
Model number	hopex-guardrail roll forming machine	HOPEX standard configuration
Machine type	Roll Forming Machine	Cold roll forming, continuous line
Suitable material	Q235, galvanized steel / stainless steel / zinc-aluminum-magnesium alloy	Four material groups, no tooling change
Forming thickness	2.4 – 4.0 mm (0.09 – 0.16 in)	Covers common guardrail standards
Feeding width	720 mm (28.35 in)	Customizable to your coil width
Forming speed	5 – 15 m/min (16.40 – 49.21 ft/min)	Adjustable to material grade
Rolling station	15 – 18 rows	Progressive forming sequence
Cutting blade	Cr12, quenched treatment HRC 58–62	Edge hardness for long runs
Diameter of shaft	120 mm	Low deflection under forming load
Main motor power	Dual 22 kW motors with K107 reducer	Steady torque across speed range
Voltage	380 V	Three phase supply
Dimension (L×W×H)	14000 × 2400 × 1200 mm (551.18 × 94.49 × 47.24 in)	Line footprint
Weight	60000 kg (132277.36 lb)	Frame mass for vibration damping
Core components	Engine, PLC, Gearbox, Gear, Pump, Bearing, Motor, Pressure Vessel	Established component suppliers
Warranty	2 years	Parts replacement and repair
Place of origin	Tianjin, China	HOPEX manufacturing base

Core Highlights

15–18 progressive forming stations deliver consistent profile geometry across the full run
Cr12 quenched blades (HRC 58–62) shear cleanly through 2.4–4.0 mm steel
Dual 22 kW motors with K107 reducers hold torque steady from 5 to 15 m/min
120 mm shaft diameter keeps forming rollers rigid under continuous load
Accepts Q235, galvanized steel, stainless steel and zinc-aluminum-magnesium alloy
2-year warranty, video outgoing inspection and machinery test report before shipment

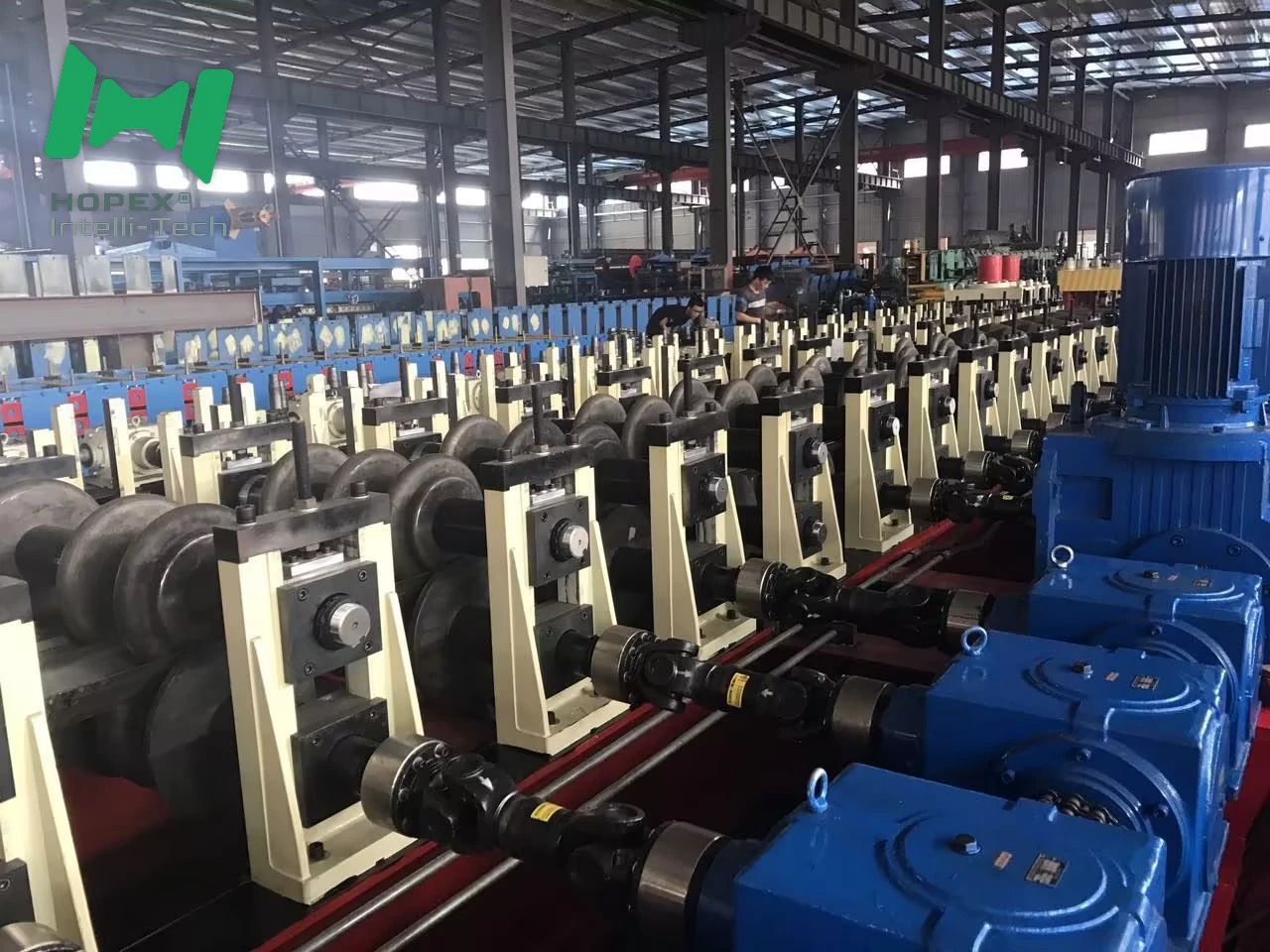

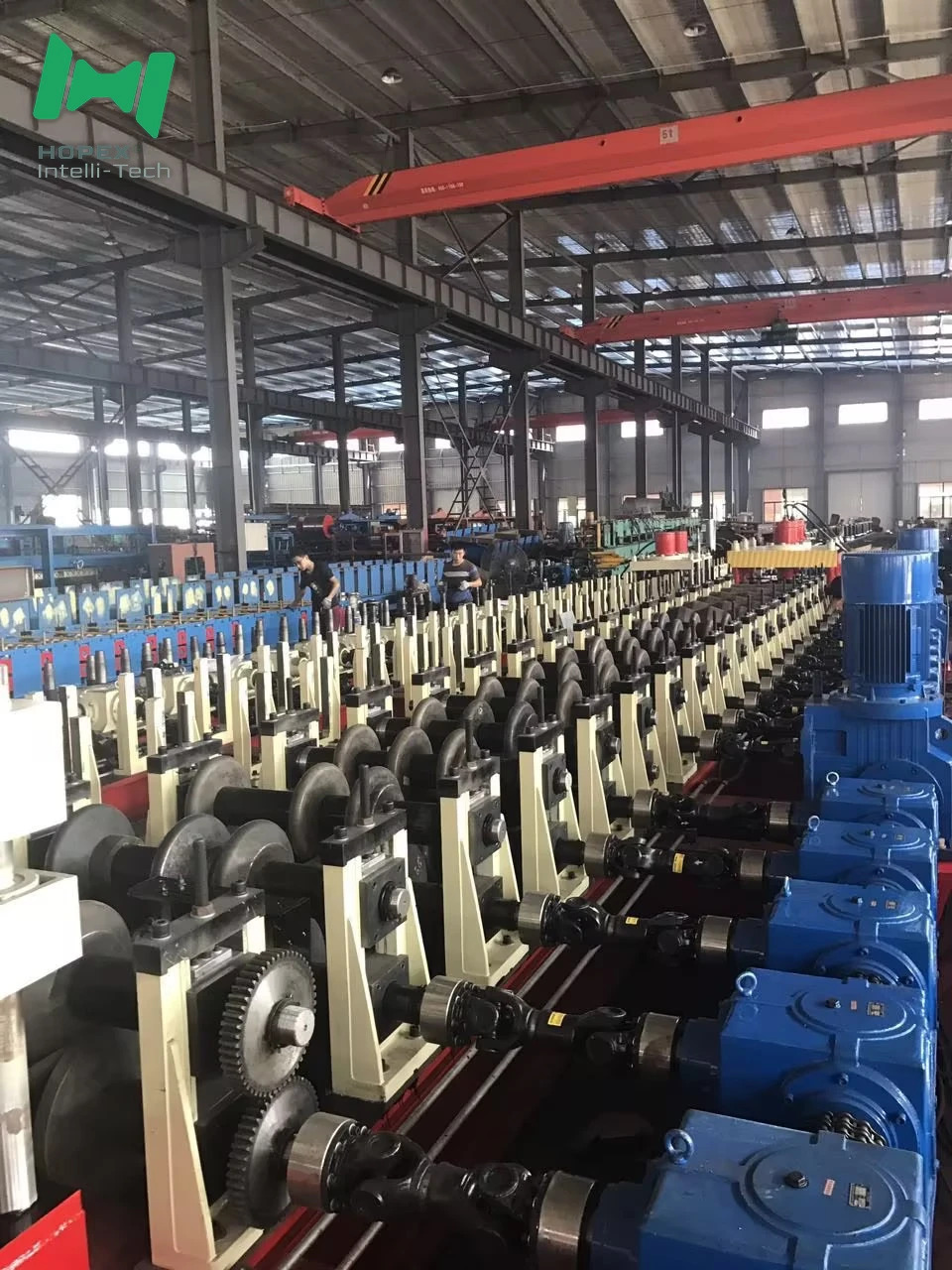

guardrail roll forming machine forming stations close-up

Production Sequence

Coil holder unwinds the strip and the leveling unit removes residual curvature.
15–18 forming stations progressively bend the strip into the W-profile.
Synchronized punching places mounting holes in line with strip speed.
Cr12 blade cuts each panel to length on the fly.
Finished panels stack at the discharge end for handling.

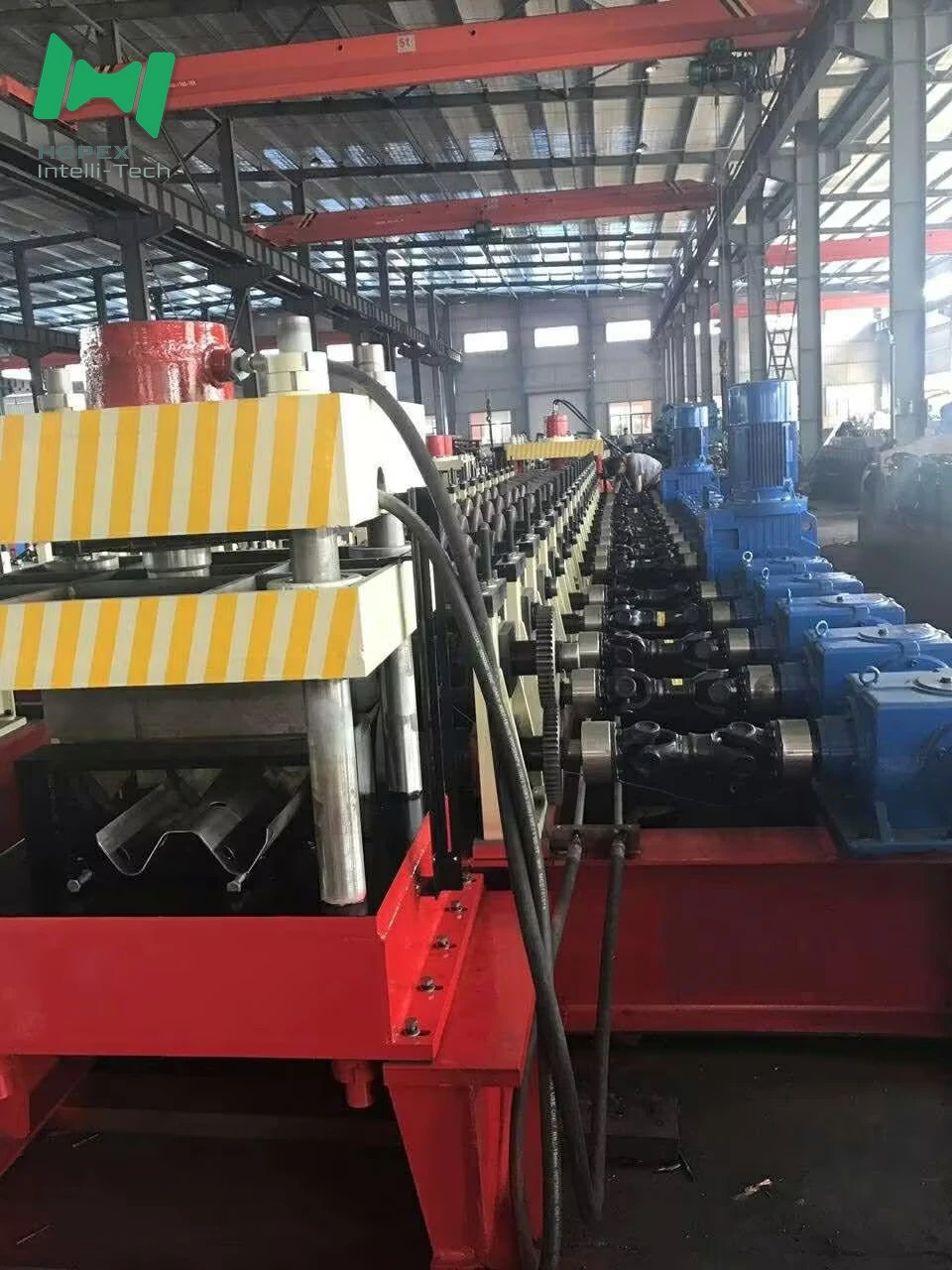

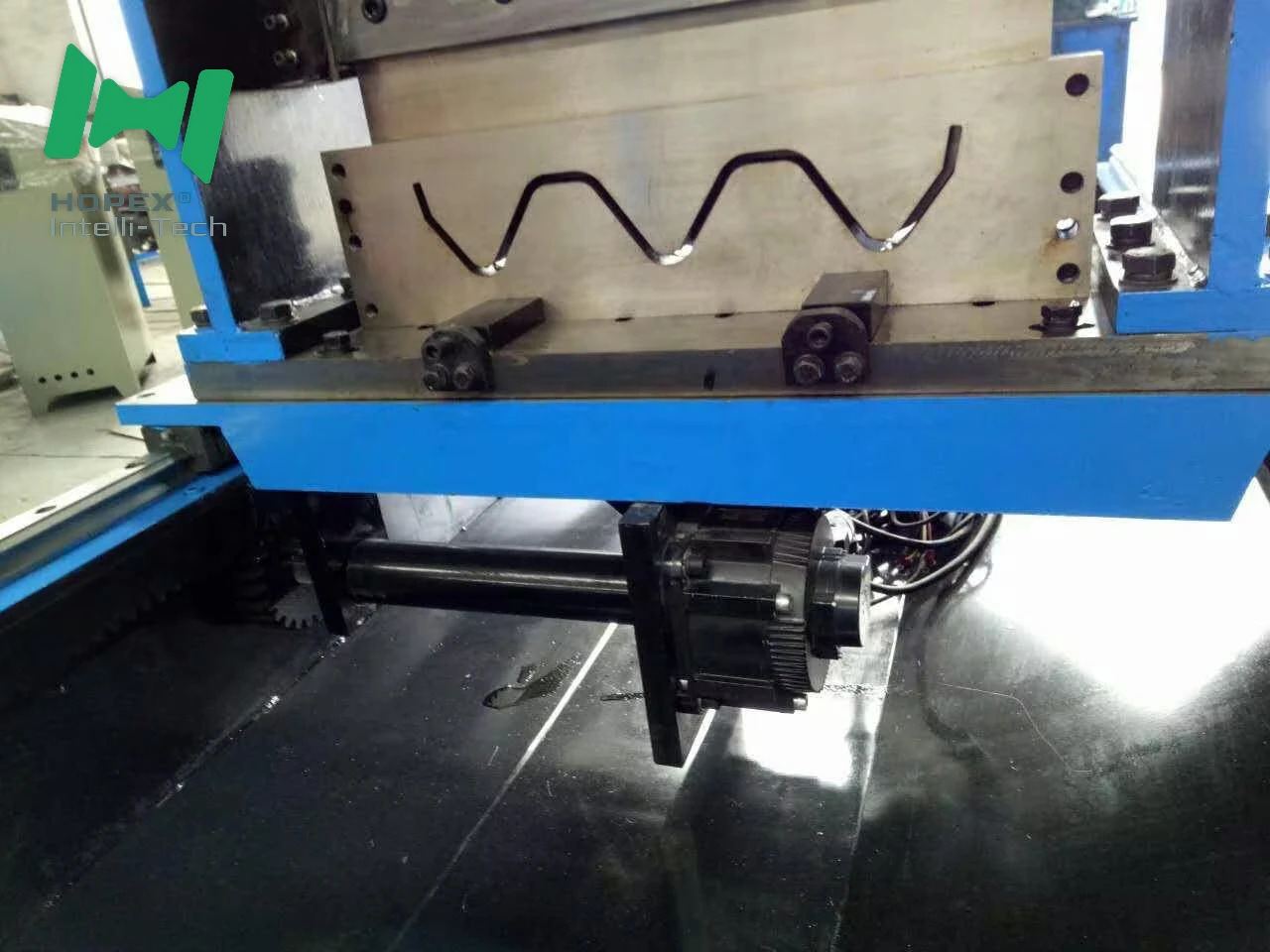

highway guardrail roll forming machine punching and cutting unit

Delivery Terms

Quantity	Lead time
1 set	30 days
2 – 5 sets	45 days
Above 5 sets	Confirmed with our engineers

highway guardrail roll forming machine packaging and container loading

Quality Assurance

Every machine is proven before it leaves Tianjin. Video outgoing inspection lets you watch the line run, and a machinery test report documents the acceptance results. The 2-year warranty covers parts replacement and repair after delivery.

HOPEX highway guardrail machine certifications
