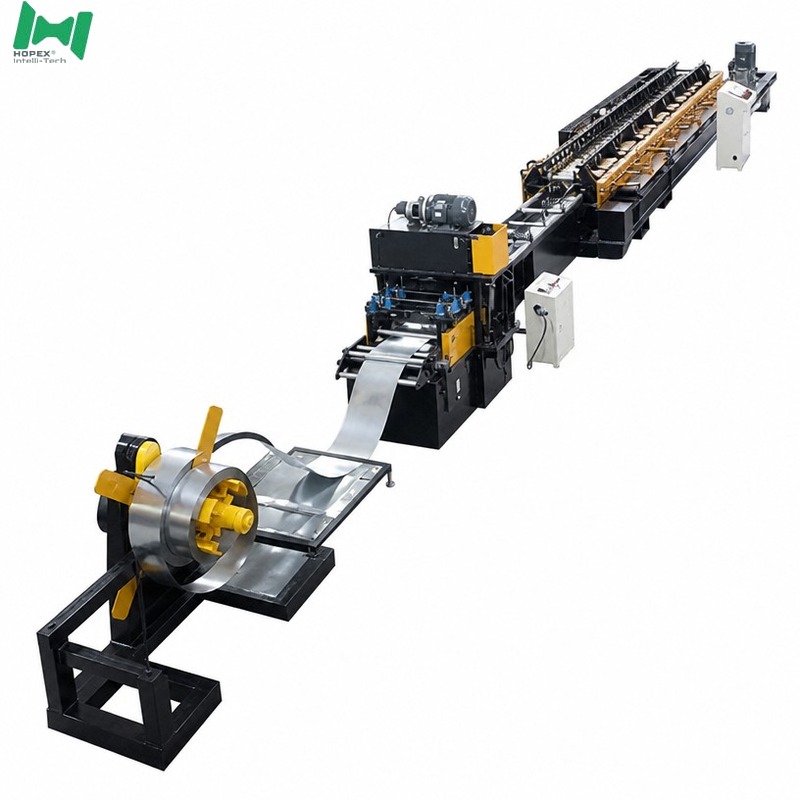

Cable Tray Machine Buyer Guide — Ten Questions Before Ordering

HOPEX-Cable Tray Buyer Guide

Ten questions decide whether a cable tray line fits your business. Each one is answered below against the HOPEX configuration, so the comparison with other quotations is direct.

Question 1 — What Tray Widths Must You Cover?

This line runs 200 – 650 mm. Confirm your full width range before comparing quotations, because a narrower mill cannot be widened later.

Question 2 — What Strip Thickness?

0.8 – 1.5 mm, held to ±0.03 mm. Thin gauge needs more forming rows, not fewer.

Question 3 — How Many Forming Rows?

26 rows. On thin strip this is what prevents flange buckling.

Question 4 — Is Punching In Line?

Yes. A two-position punching machine handles Z-hook punching and marking before the forming mill.

Question 5 — What Is the Real Speed?

8 – 16 m/min, with punching of connecting holes already included in that figure.

Question 6 — What Length Can It Produce?

2000 – 3000 mm per workpiece.

Question 7 — Will It Fit Your Building?

Footprint is 30 × 2.5 × 2.2 m and weight is 50000 kg, so coil access and run-out space must be planned in addition to the machine itself.

Question 8 — What Power Supply Is Needed?

400 V ±5%, 60 Hz, with total installed capacity of about 50 KW and 7.5 KW × 3 main motors.

Question 9 — Which Materials Can It Run?

Q235 galvanized steel, stainless steel or zinc-aluminium-magnesium alloy.

Question 10 — What Happens After Delivery?

2 years warranty, 18 months free maintenance including parts and freight, installation training and lifetime technical support.

Answers in One Table

Lead Time

Buyer Guide FAQ

Q1. Which question is most often skipped?

Width range. A mill tooled for a narrower range cannot be widened afterwards, so confirm 200 – 650 mm covers your product list.

Q2. Should we prioritise speed or row count?

On 0.8 – 1.5 mm strip, row count protects quality. 26 rows with a speed of 8 – 16 m/min is the balance this line takes.

Q3. Do we need a separate punching machine?

No. Punching runs in line ahead of the forming mill.

Q4. What should we check about our building?

Floor capacity for 50000 kg, the 30 × 2.5 × 2.2 m footprint, plus coil access and run-out space.

Q5. Can the line handle stainless steel?

Yes. Q235 galvanized steel, stainless steel or zinc-aluminium-magnesium alloy are all supported.

Q6. What is included after delivery?

2 years warranty, 18 months free maintenance with parts and freight, installation training and lifetime technical support.
