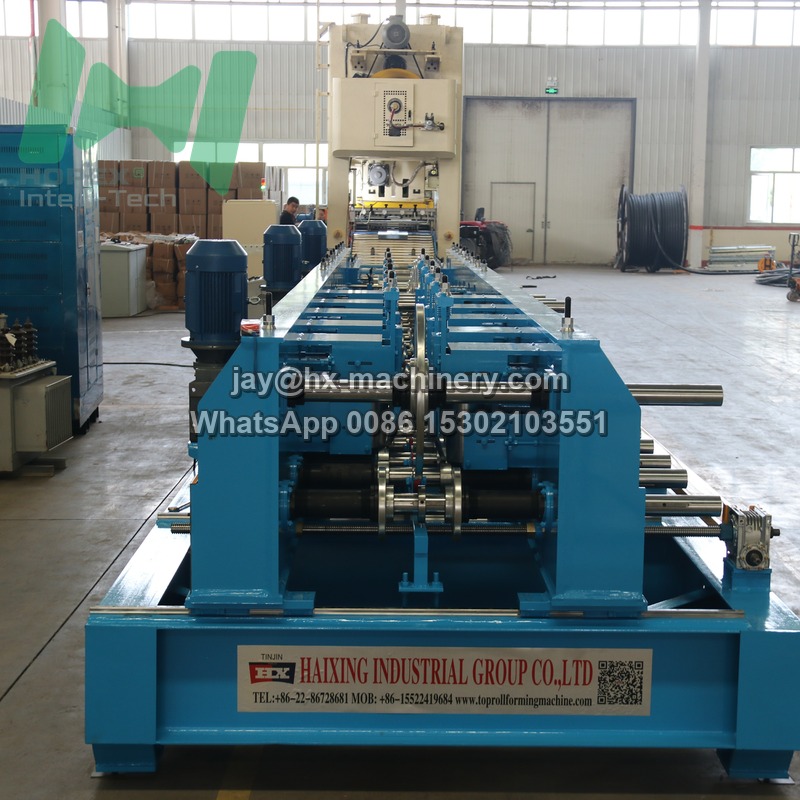

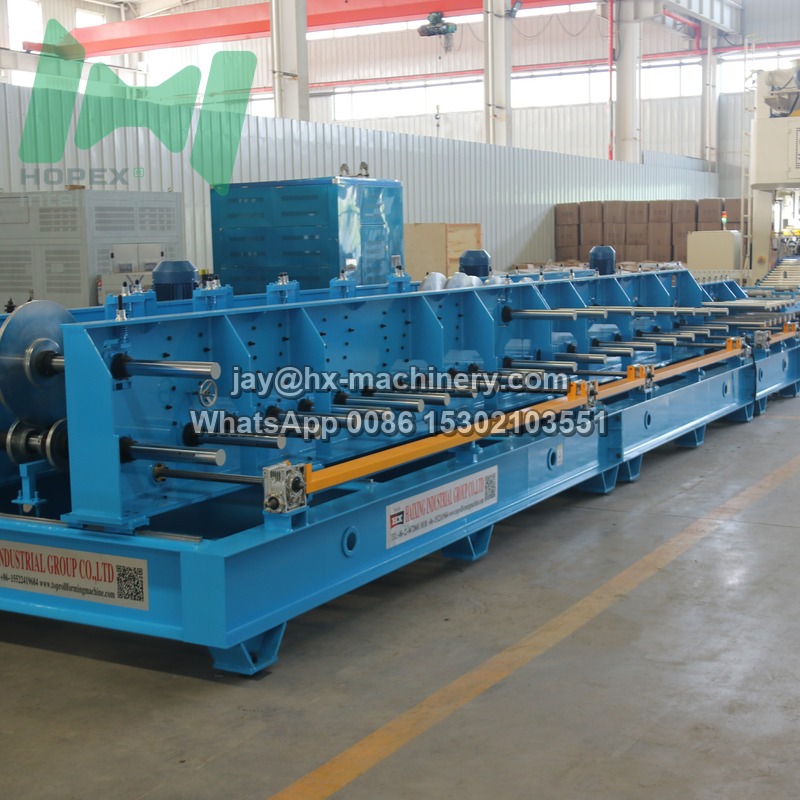

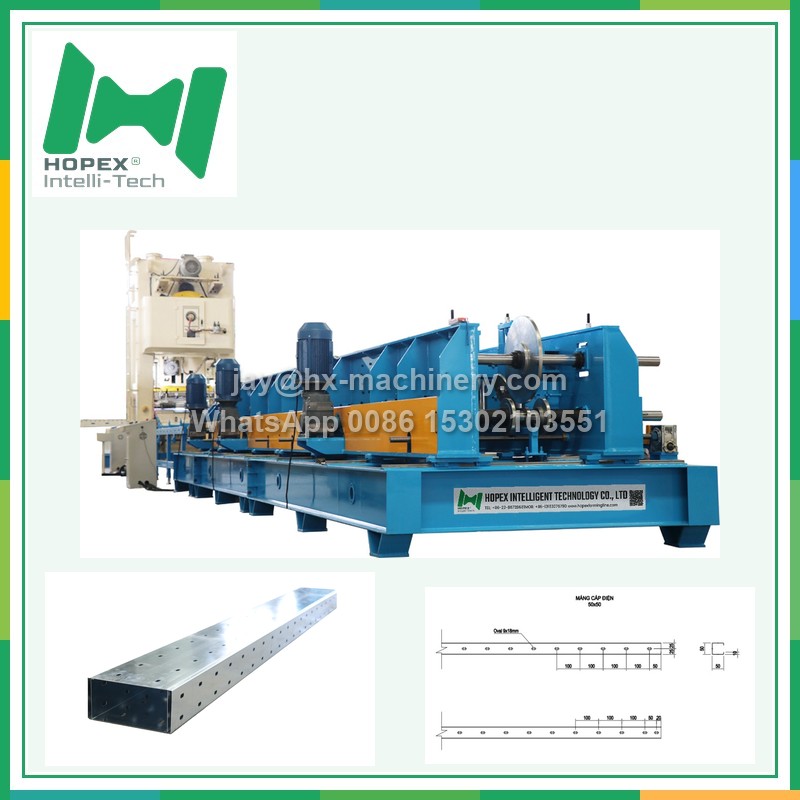

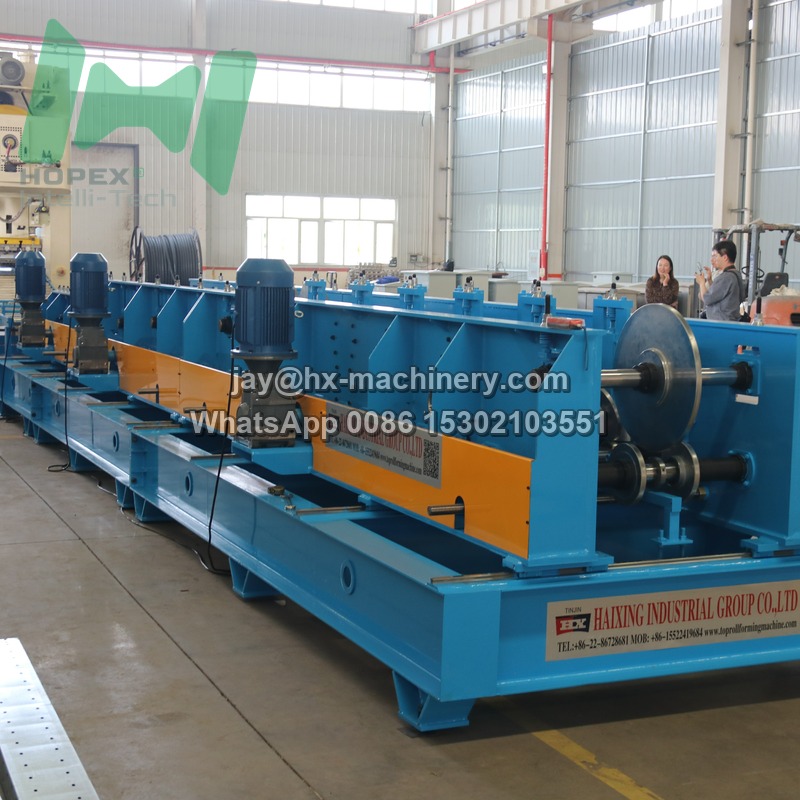

50×50-600×100 cable tray machine
High-speed cable tray manufacturing machine for cable tray production line work. Automatic stations punch, form, and cut without manual handling. This cable tray making machine lifts output quality and cuts labor and material waste. Custom widths and hole patterns are offered. PLC control and safety guards are standard. Training is included.
50×50-600×100 cable tray making machine
Detail
50×50-600×100Cable tray forming machine
|
No.
|
50×50-600×100perforated cable tray machine
|
|
|
1
|
Input material width
|
150–850 mm
|
|
2
|
Input material thickness
|
0.7 (±0.03)–2.0 (±0.03) mm
|
|
3
|
Input material type | Q235B cold-rolled strip steel, hot-rolled strip steel, galvanized sheet |
|
4
|
Inline punching; production speed | 8–12 m/min. |
|
5
|
Rolled product length | 3000 mm |
|
6
|
Equipment footprint | 40 × 1.5 × 1.6 m (L × W × H) |
|
7
|
Voltage specifications | 380V, 50Hz, 3-phase. |
|
8
|
Hydraulic oil | No. 46 hydraulic oil |
Q: 1. How do I adjust the machine for different widths and heights?
For standard lines, it can be adjusted via high-precision manual spacers. However, for our premium series (like the HOPEXcustomized lines), we integrate an automatic motorized width-adjustment system controlled entirely through the PLC touchscreen, moving the forming rollers smoothly to your desired dimensions within seconds.
Q: 2. Is the width adjustment manual or fully automatic via PLC?
We offer both options based on your budget. Our advanced cable tray and housing profile lines feature fully automatic PLC one-key changeover. The operator simply inputs the parameters on the screen, and the machine adjusts itself automatically, eliminating human error.
3. How long does a standard size/profile changeover take?
With our traditional manual adjustment lines, it takes about 1-2 hours. With our upgraded Smart PLC One-Key Changeover System, a complete width adjustment (e.g., from 100mm to 600mm for cable trays) takes less than 2 minutes, drastically reducing your downtime and boosting factory productivity.
