Cable Tray Bending Machine | HOPEX 100-600 Line
Get a competitive cable tray roll forming machine price for trays from 100-600 mm width. The perforated cable tray roll forming machine delivers smooth tray roll forming machine performance with continuous output. Add a cable tray bending machine and a cable tray cutting machine to build a complete workshop line for every project.

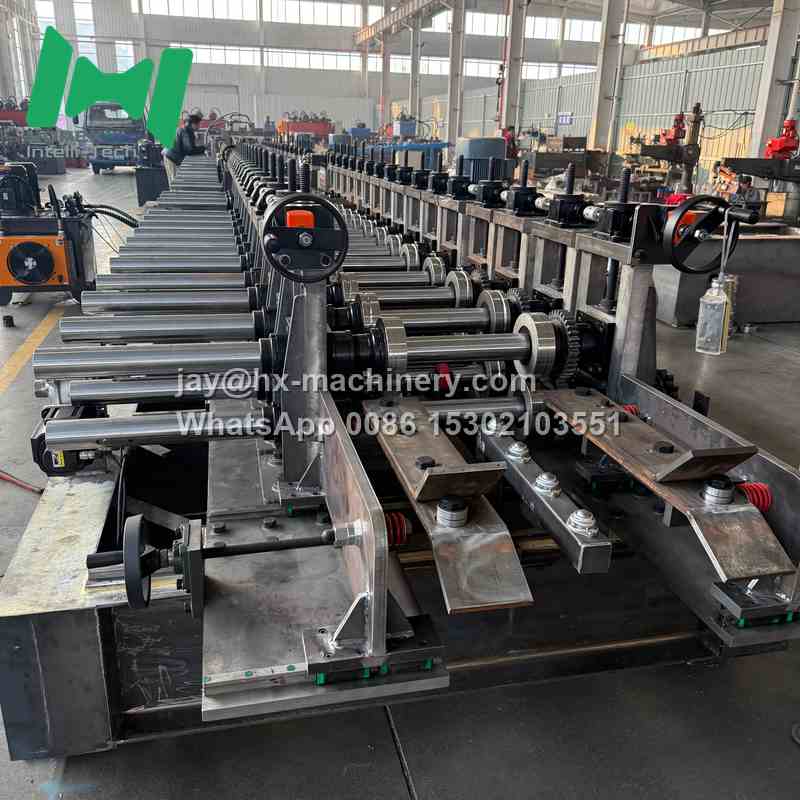

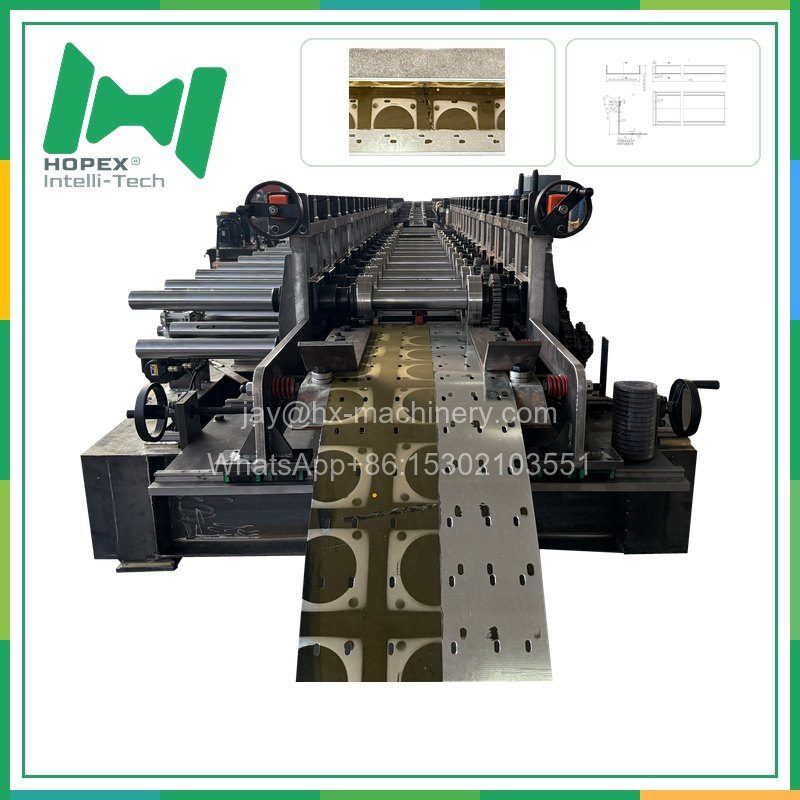

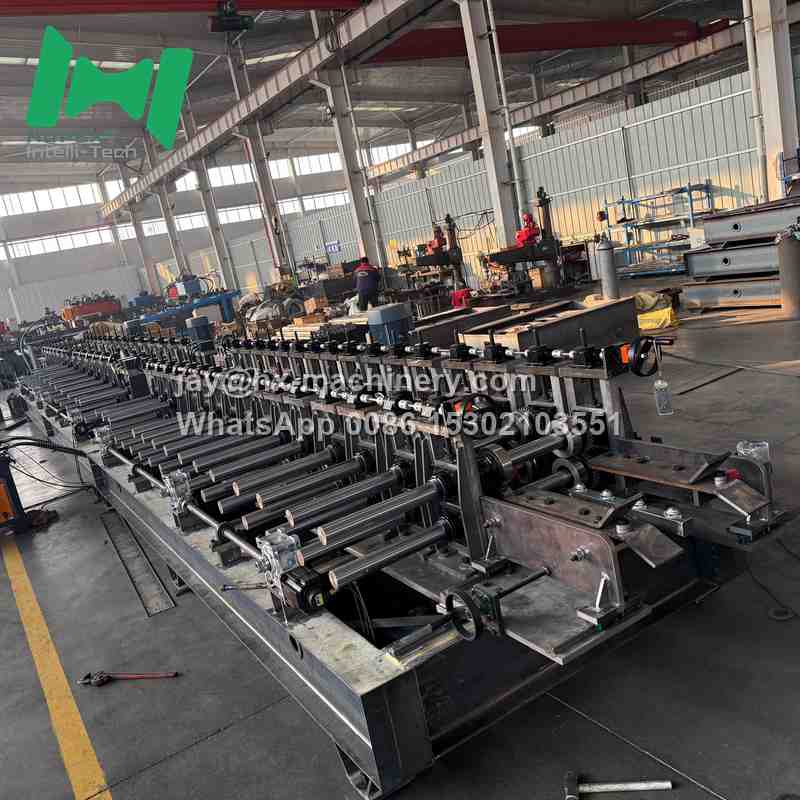

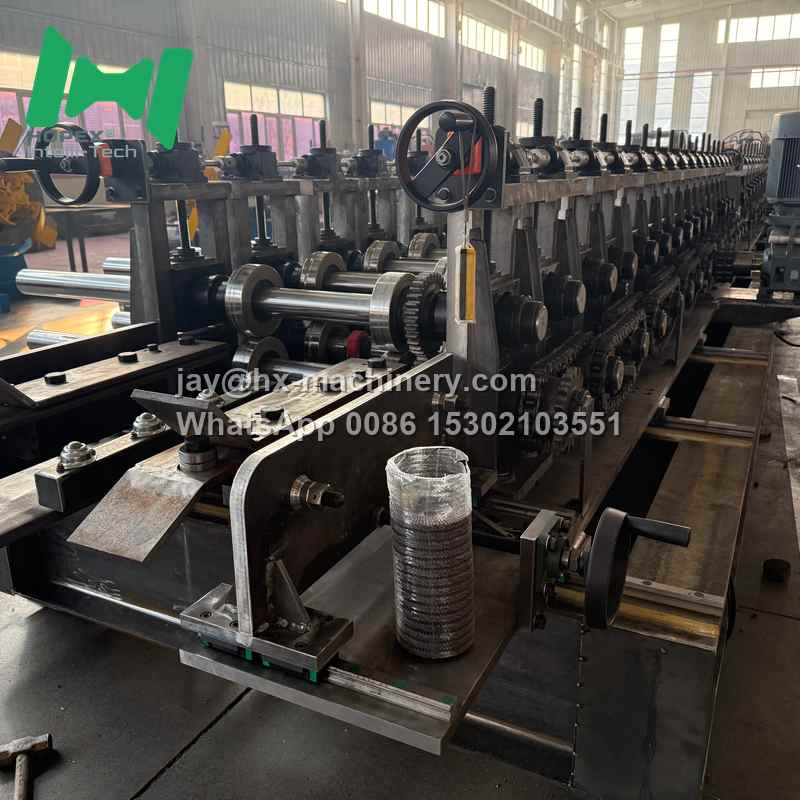

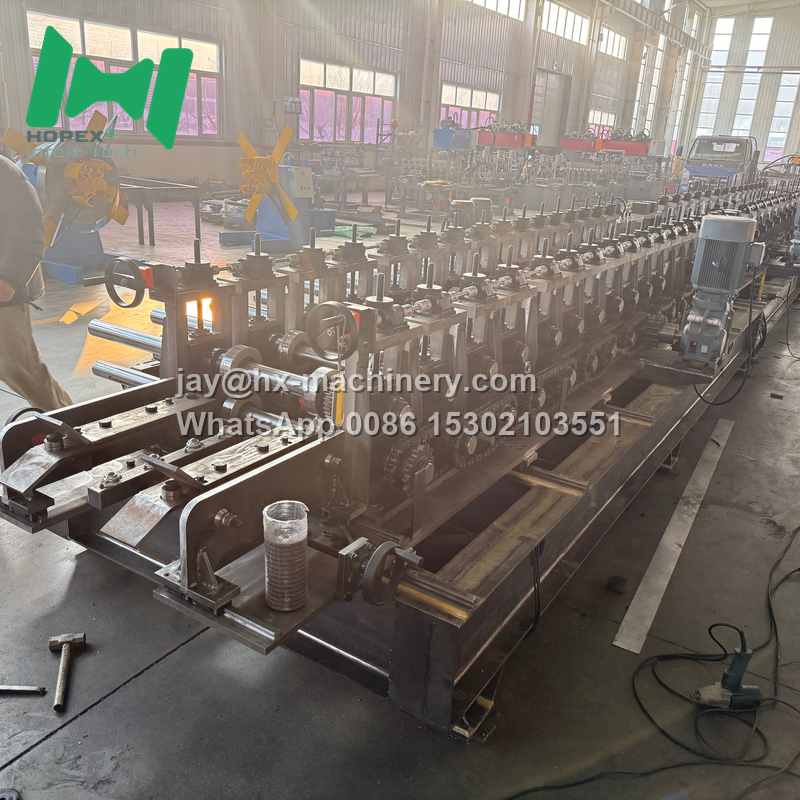

100-600Tray roll forming machine
Detail
100-600cablecable tray roll forming machine price
|
No.
|
cable tray rolling machine
|
|
|
1
|
Product name | cable ladder machine |
|
2
|
Equipment footprint | 20m × 1.5m × 1.6m. |
|
3
|
Feed width | 194-814 mm |
|
4
|
Feed thickness | 1.2(±0.03)-2.0(±0.03)mm |
|
5
|
Material of raw materials | Q235B cold-rolled strip, hot-rolled strip, galvanized sheet. |
|
6
|
Online punching, production speed | 8-16 meters/minute. |
|
7
|
Voltage parameters | 380, 50Hz, 3 phases. |
Q: 1. How do I adjust the machine for different widths and heights?
For standard lines, it can be adjusted via high-precision manual spacers. However, for our premium series (like the HOPEXcustomized lines), we integrate an automatic motorized width-adjustment system controlled entirely through the PLC touchscreen, moving the forming rollers smoothly to your desired dimensions within seconds.
Q: 2. Is the width adjustment manual or fully automatic via PLC?
We offer both options based on your budget. Our advanced cable tray and housing profile lines feature fully automatic PLC one-key changeover. The operator simply inputs the parameters on the screen, and the machine adjusts itself automatically, eliminating human error.
3. How long does a standard size/profile changeover take?
With our traditional manual adjustment lines, it takes about 1-2 hours. With our upgraded Smart PLC One-Key Changeover System, a complete width adjustment (e.g., from 100mm to 600mm for cable trays) takes less than 2 minutes, drastically reducing your downtime and boosting factory productivity.
