Brand: Hopex-cable trays 100-600
FOB Price: Get Latest Price from inquiry
Min.Order Quantity: 1 set
Supply Ability: 30 sets per Month
Port: TIANJIN
Payment Terms: 30% deposit, the balanced money after the machine finish.
Product Time: 45-60 working days after received the deposit.

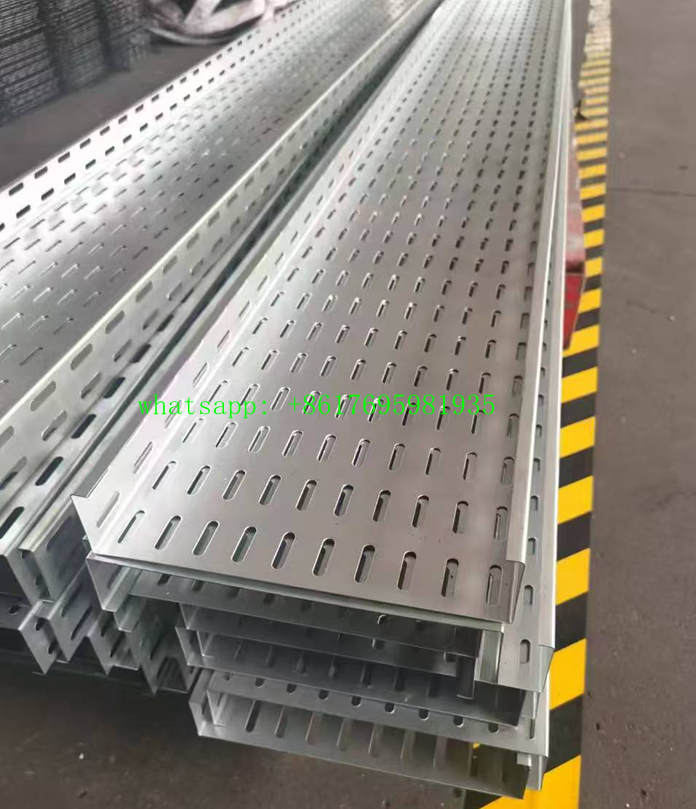

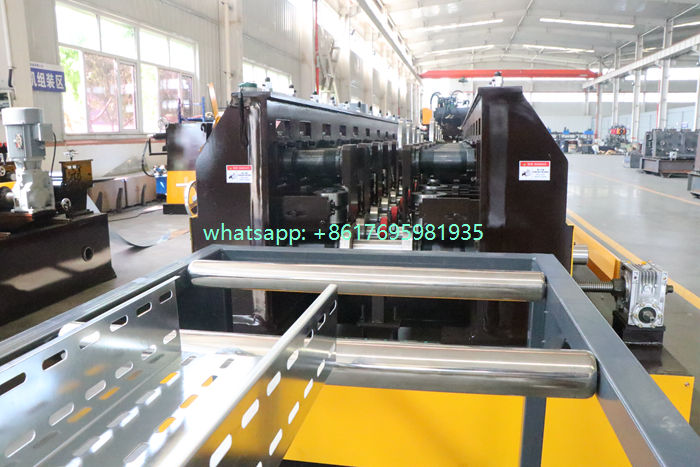

cable tray roll forming machine products display
The precision-engineered trough cable trays, essential for organizing and protecting cables, are reliably produced by the cable tray roll forming machine. This advanced equipment operates with exceptional accuracy, ensuring each component meets exact specifications for seamless assembly. Furthermore, the robust cable tray roll forming machine is built for endurance, enabling continuous, high-volume production without compromising on the consistent quality required for safe and durable electrical installations.

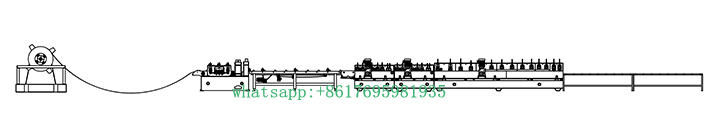

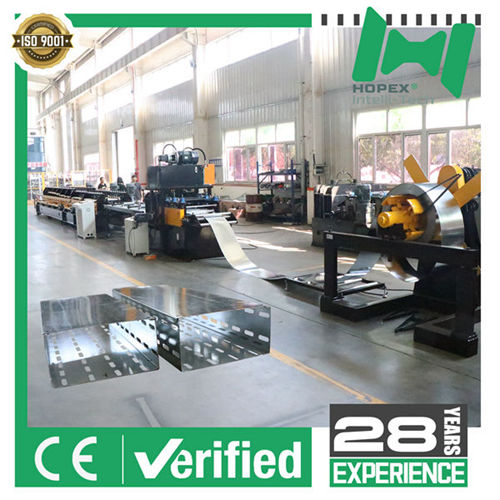

Cable tray roll forming machine process flow
|
Raw Material Specifications |
Material Type | Galvanized / Cold-Rolled / Stainless Steel |
| Material Thickness | 0.8–2.5 mm (Customizable) | |
| Material Width | Customized according to tray size | |
| Yield Strength | G250–G550 | |
|

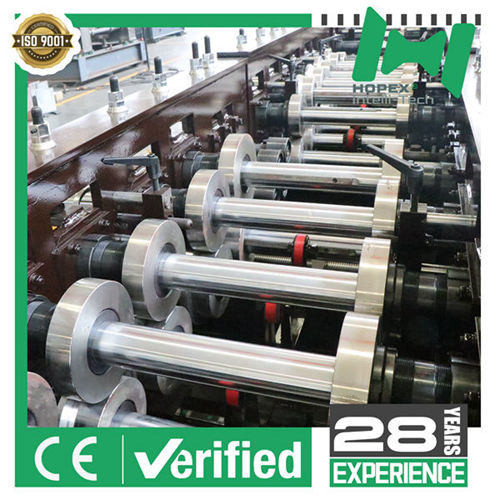

Roll Forming System |
Forming Stations | 18–24 stations |
| Roller Material | GCr15, heat treated | |
| Shaft Material | 45# steel, heat treate | |
| Shaft Diameter | Φ70–90 mm | |
| Drive System | Chain drive | |
|

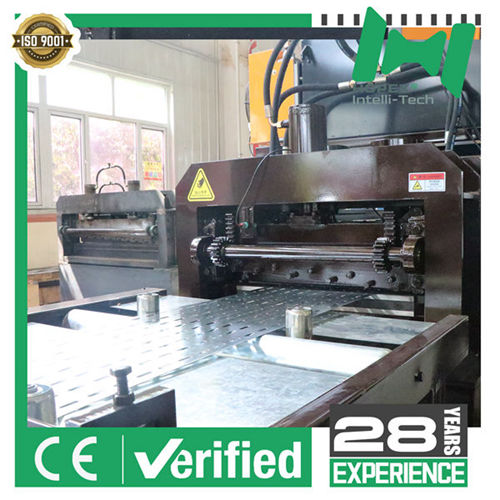

Punching System |
Punching Type | Hydraulic Punching |
| Punching Position | Before forming | |
| Hole Type | Round / Slotted / Customized | |
| Punching Accuracy | ±0.5 mm | |
|
Control System |
Operation Interface | Touch Screen (CN / EN) |
| Inverter | Famous brand | |
| Electrical Components | Siemens or Schnedier | |
| Data Memory | Parameter memory | |
| Motor & Hydraulic System | Main Motor Power | 11 kW *3 sets |
| Hydraulic Power | 7.5 kW | |
| Power Supply | 380V / 50Hz / 3Ph (Custom) | |
| Hydraulic Oil | 46# Anti-wear Hydraulic Oil | |
| Production size | Line Length | 35 meters |
| Machine Width | 2.5 meters | |
| Machine Weight | 25ton |
This cable tray roll forming machine adopts proven cold roll forming technology, offering flexible customization in size, structure, and configuration. It ensures stable operation, reliable performance, and compatibility with various international standards for long-term industrial production.
Our client photo
