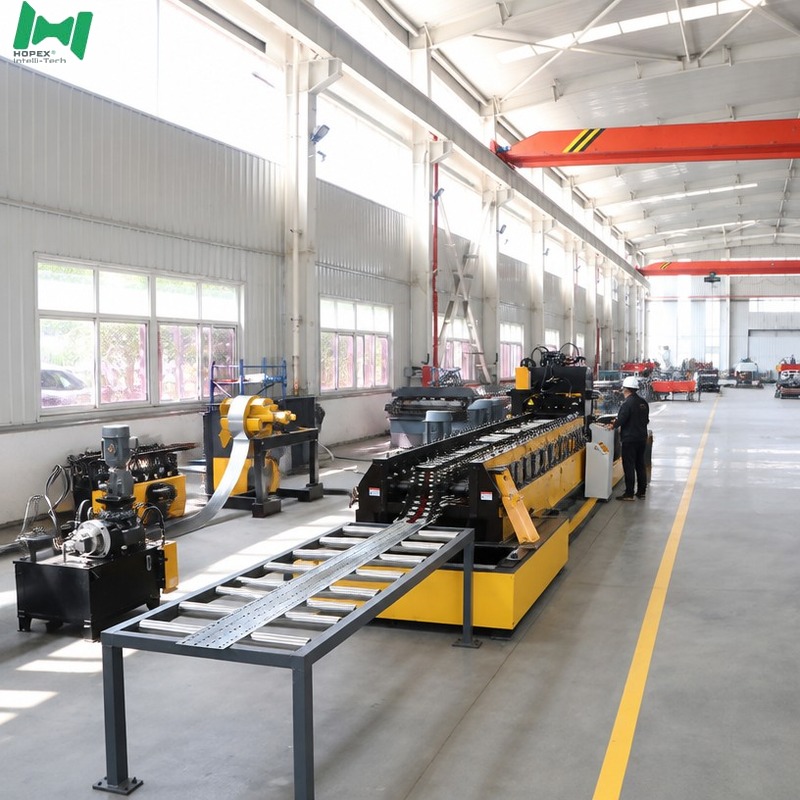

HOPEX-Electric Cable Tray Machine

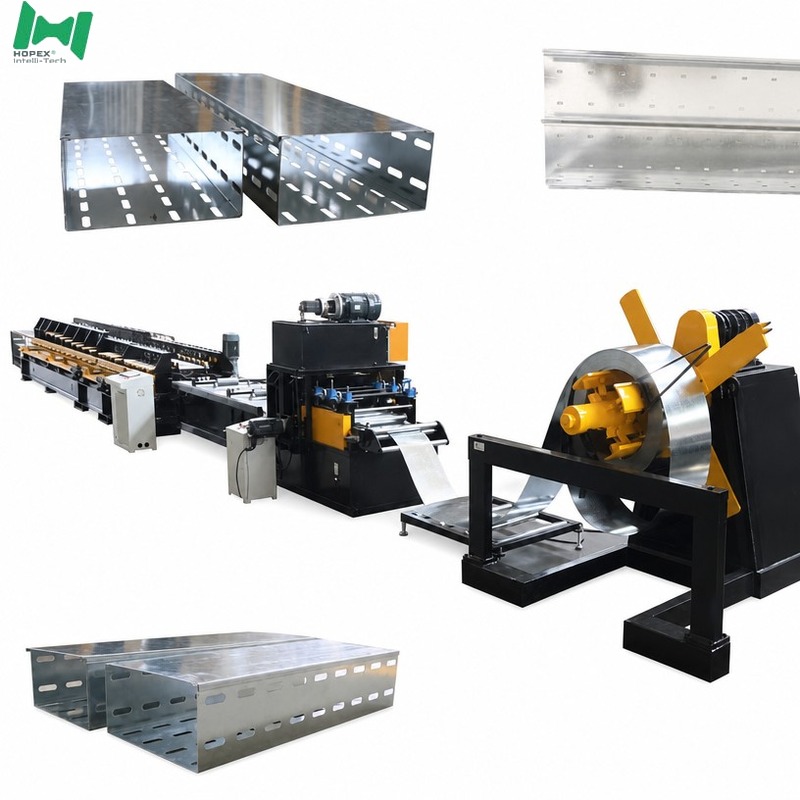

An electric cable tray machine is not a single mill. It is six sections working to one timing, and a weakness in any of them shows up in the finished tray. This page walks through each section and states what it contributes.
The line forms trays 200 – 650 mm wide from strip 0.8 – 1.5 mm thick, running at 8 – 16 m/min.
An electric decoiler, 10 t maximum loading carries the coil. Loading capacity matters because a heavy coil that has to be split adds a changeover for every tonne saved.

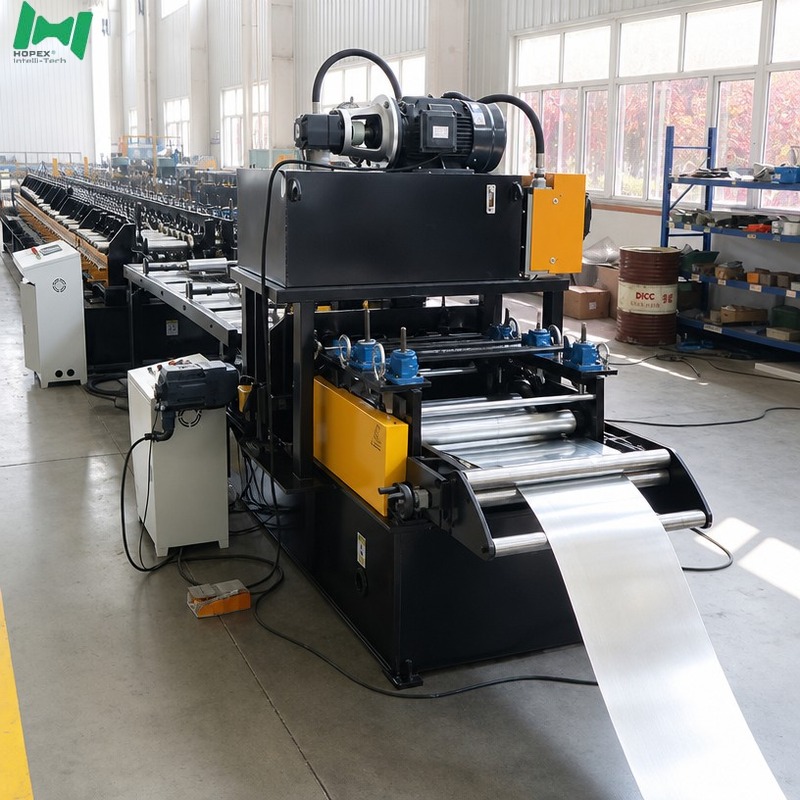

A 12-roller leveller with lifter linkage system removes coil set before the strip reaches any tooling. The lifter linkage lets the operator change levelling pressure as a single adjustment rather than roller by roller.
Curvature left in the strip is locked into the tray by the forming mill. No downstream station can remove it, which is why this section sits before punching rather than after.
A two-position punching machine handles Z-hook punching and marking in the same pass. Optional patterns include large-span Z-hook holes and pallet holes.
| Attribute | Specification |
|---|---|
| Roller rows | 26 rows |
| Roller material | 45# steel, quenched and hard chromed |
| Shaft | 70 mm solid shaft |
| Shaft material | 45# steel, tempered |
| Wheel speed | 8 – 16 m/min |
Finished workpiece length runs 2000 – 3000 mm, set from the control system rather than by mechanical stop.
| Item | Parameter |
|---|---|
| Rolling strip width | 200 – 650 mm |
| Rolling strip thickness | 0.8 – 1.5 mm (±0.03 mm) |
| Production speed | 8 – 16 m/min |
| Roller rows | 26 |
| Workpiece length | 2000 – 3000 mm |
| Equipment footprint | 30 × 2.5 × 2.2 m |
| Machine weight | 50000 kg |
| Main motor | 7.5 KW × 3 |
| Total installed capacity | about 50 KW |
| Power supply | 400 V ±5%, 60 Hz |
| Strip material | Q235 galvanized steel, stainless steel or zinc-aluminium-magnesium alloy |
| Place of origin | Tianjin, China |
| Warranty | 2 years |
| Quantity | Lead time |
|---|---|
| 1 set | 30 days |
| 2 – 5 sets | 45 days |
| Above 5 sets | To be negotiated with our engineers |
Every line is built in Tianjin, China and carries a 2 years warranty with 18 months of free maintenance covering parts and freight.
Q1. Why does the line need a separate levelling section?
Because curvature left in the strip is locked into the tray by the forming mill. The 12-roller leveller with lifter linkage system removes it before any tooling touches the material.
Q2. What tray widths can be produced?
200 – 650 mm.
Q3. What strip thickness is supported?
0.8 – 1.5 mm, held to ±0.03 mm.
Q4. How fast does the line run with punching included?
8 – 16 m/min, including punching of connecting holes.
Q5. What is the coil loading capacity?
The electric decoiler, 10 t maximum loading carries up to 10 tonnes.
Q6. What control system is fitted?
PLC, Taiwan Delta or Siemens, with English and Spanish language options.
