Guardrail Forming Equipment — One Line Replaces Many

Guardrail Forming Equipment — One Line Replaces Many

Product ID : guardrail forming equipment

Product Tags :

Product Attributes :

Hopex guardrail forming equipment: one integrated line, 5-15m/min speed, 15-18 stations, dual 22kW motors, energy saving PLC control, 2-year warranty.

Product Description

HOPEX-Highway Guardrail

Guardrail production is a volume business, and volume decides which guardrail forming equipment makes sense. One continuous line replaces several separate machines, and one operator replaces a larger crew.

Separate Machines vs. Integrated Line

Work step	Separate machines	Integrated roll forming line
Material transfer	Manual handling, alignment risk	Continuous strip flow, no re-handling
Profile consistency	Depends on operator skill	Set by 15 – 18 fixed forming stations
Hole spacing	Manual marking and punching	Punching synchronized with strip speed

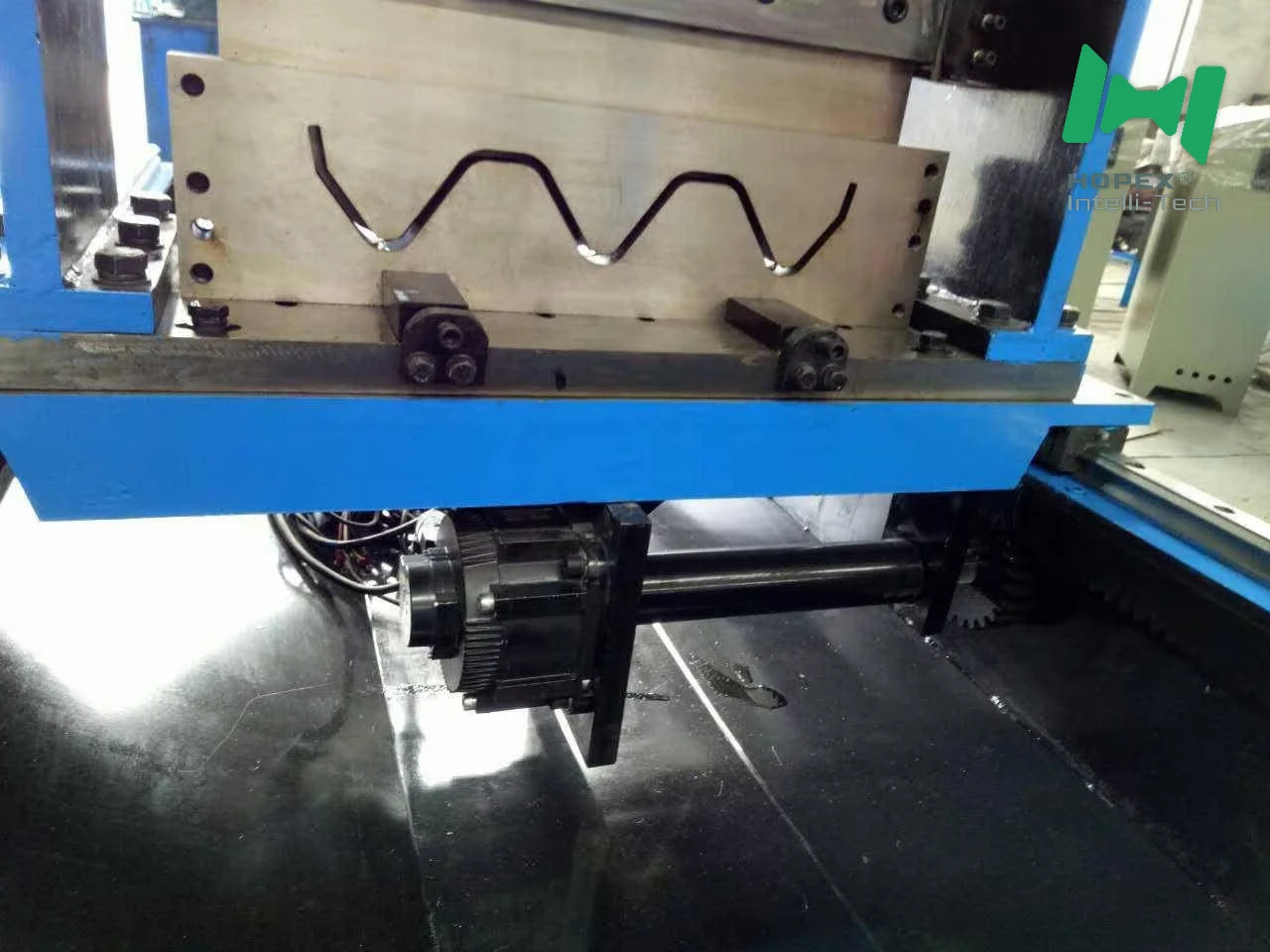

Cutting	Separate shear, extra setup	In-line Cr12 blade, automatic cut-to-length
Operator requirement	Multiple stations, multiple workers	Single line, PLC-monitored

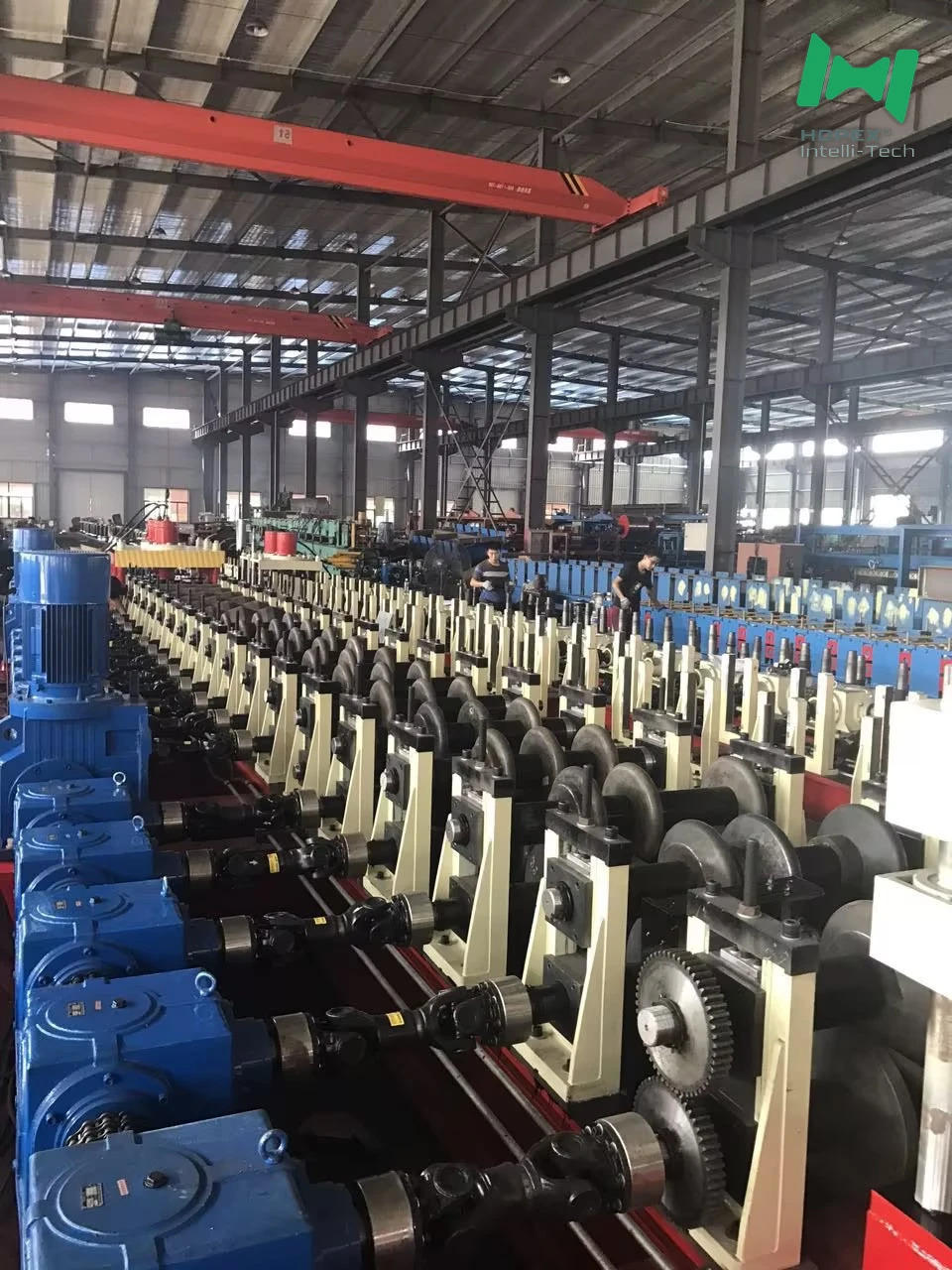

integrated guardrail forming equipment production line

Speed That Holds the Schedule

The line forms at 5 – 15 m/min on dual 22 kW motors with K107 reducers. At the top of the range long highway contracts are covered quickly; at the lower end thick or hard material gets the torque it needs. The same line runs all four material groups from 2.4 to 4.0 mm, so schedule pressure never forces a material compromise.

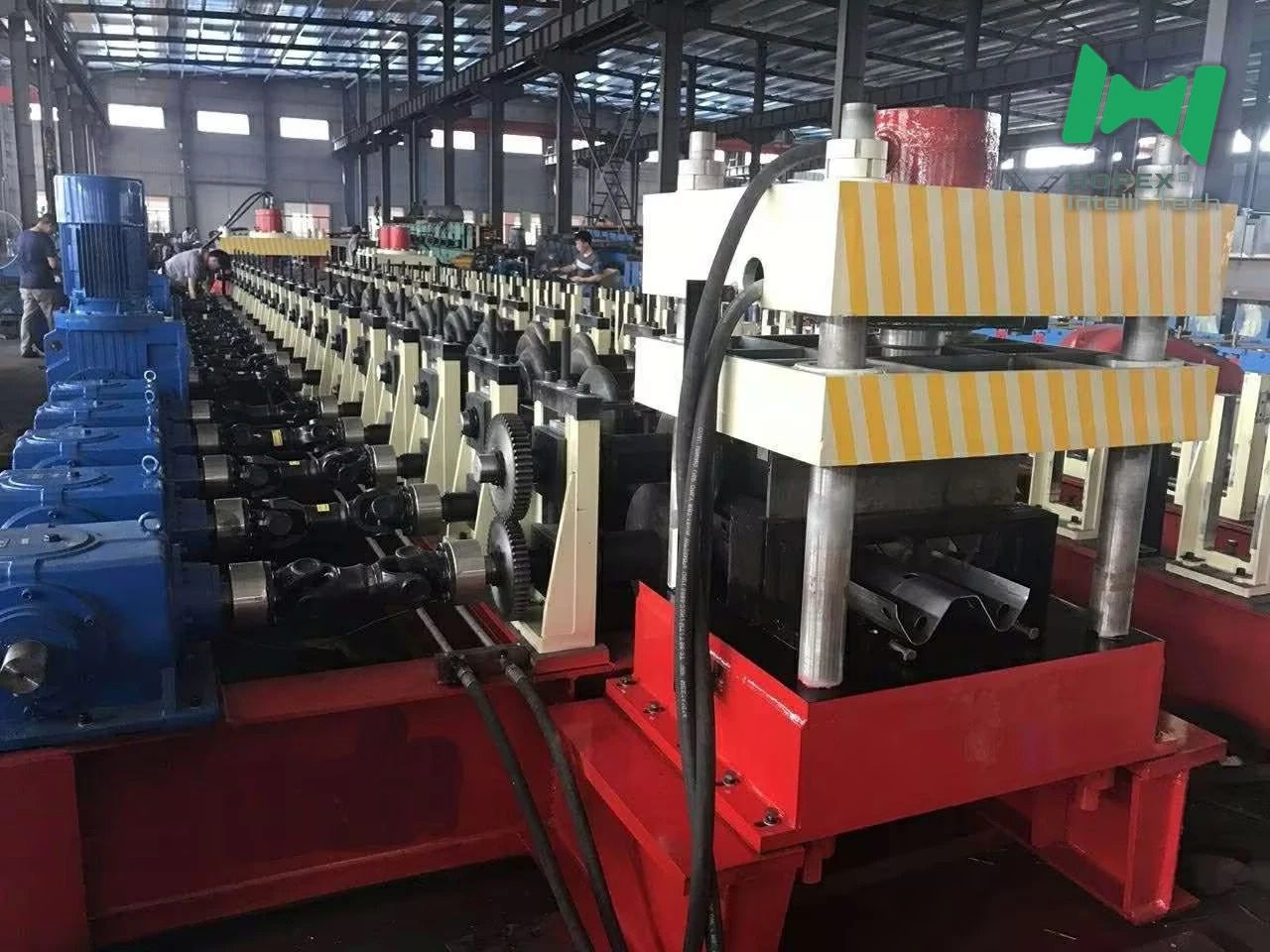

guardrail forming equipment running in the workshop

Energy Saving by Design

Energy efficiency is a listed key selling point. The dual-motor drive distributes load evenly across the forming stations, the PLC matches motor speed to line demand instead of running components at a fixed rate, and the gear, bearing and K107 reducer layout keeps transmission losses low. The effect shows in power consumption per meter of guardrail produced.

Equipment Data Sheet

Parameter	Value	Note
Product name	highway guardrail roll forming machine	W-profile highway barrier panels
Model number	hopex-guardrail roll forming machine	HOPEX standard configuration
Machine type	Roll Forming Machine	Cold roll forming, continuous line
Suitable material	Q235, galvanized steel / stainless steel / zinc-aluminum-magnesium alloy	Four material groups, no tooling change
Forming thickness	2.4 – 4.0 mm (0.09 – 0.16 in)	Covers common guardrail standards
Feeding width	720 mm (28.35 in)	Customizable to your coil width
Forming speed	5 – 15 m/min (16.40 – 49.21 ft/min)	Adjustable to material grade
Rolling station	15 – 18 rows	Progressive forming sequence
Cutting blade	Cr12, quenched treatment HRC 58–62	Edge hardness for long runs
Diameter of shaft	120 mm	Low deflection under forming load
Main motor power	Dual 22 kW motors with K107 reducer	Steady torque across speed range
Voltage	380 V	Three phase supply
Dimension (L×W×H)	14000 × 2400 × 1200 mm (551.18 × 94.49 × 47.24 in)	Line footprint
Weight	60000 kg (132277.36 lb)	Frame mass for vibration damping
Core components	Engine, PLC, Gearbox, Gear, Pump, Bearing, Motor, Pressure Vessel	Established component suppliers
Warranty	2 years	Parts replacement and repair
Place of origin	Tianjin, China	HOPEX manufacturing base

Scope of Delivery

Complete line: uncoiling, leveling, 15–18 forming stations, synchronized punching, cut-to-length
PLC control cabinet with full drive system (dual 22 kW motors, K107 reducers, gearbox, bearings)
Video outgoing inspection and machinery test report
Installation guidance and operator training
2-year warranty on parts replacement and repair
