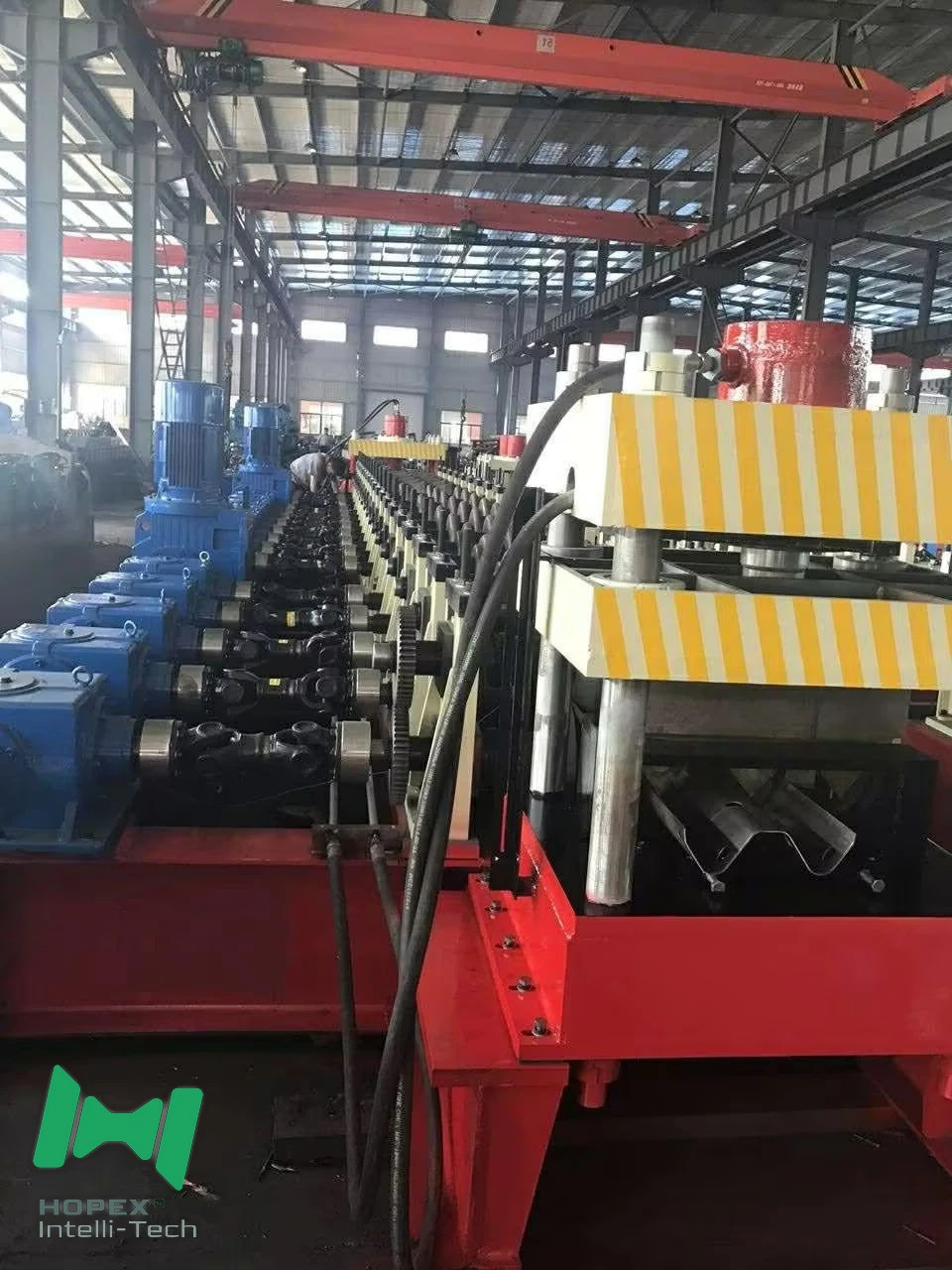

Highway Guardrail Machine Manufacturer

Product ID : highway guardrail machine manufacturer

Product Tags :

Product Attributes :

Highway guardrail machine from Hopex, custom manufacturer in Tianjin: 30-day lead time, video inspection, test report, 2-year warranty, full customization.

Product Description

HOPEX-Highway Guardrail

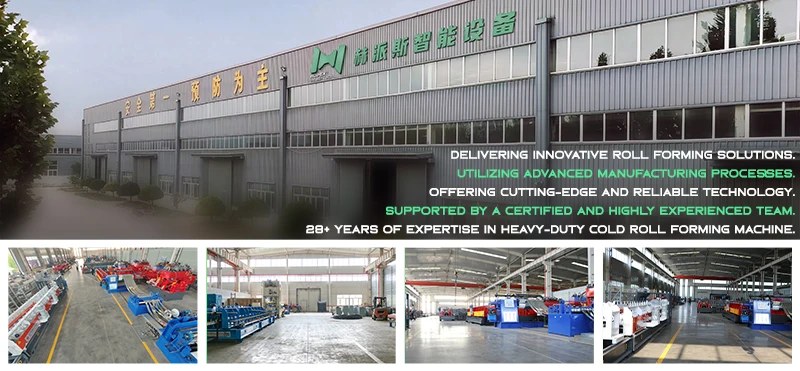

A roll forming line is a long-term investment, and the company behind it matters as much as the machine. HOPEX (Tianjin) Intelligent Technology is a custom manufacturer of steel roll forming equipment. This page covers what you get when you buy a highway guardrail machine from the factory directly.

Customization Capability

Option	Scope	Minimum order
Name plate	Machine identification to your specification	1 set
Logo and graphic design	Machine livery and markings in your brand style	1 set
Feeding width	Line adjusted to your coil width	1 set

Beyond these options, drawing-based and sample-based customization adapt the line to your panel profile and production requirements.

Inspected Before Shipment

Video outgoing inspection — watch the line run forming trials before dispatch
Machinery test report — documented acceptance results supplied with the machine
Forming stations, punching unit and Cr12 blade performance all verified in the test run

HOPEX highway guardrail machine certifications

Production Schedule

Quantity	Lead time
1 set	30 days
2 – 5 sets	45 days
Above 5 sets	Confirmed with our engineers

The first set is typically ready in 30 days and multi-set orders follow a 45-day schedule. For larger programs a delivery plan is agreed at order confirmation.

Warranty and Support

The machine carries a 2-year warranty covering parts replacement and repair. Core components — engine, PLC, gearbox, gear, pump, bearing, motor and pressure vessel — come from established suppliers, so spare parts stay available and maintenance stays predictable. Installation guidance and operator training are included.

HOPEX at international roll forming machinery exhibitions

Standard Configuration Data

Parameter	Value	Note

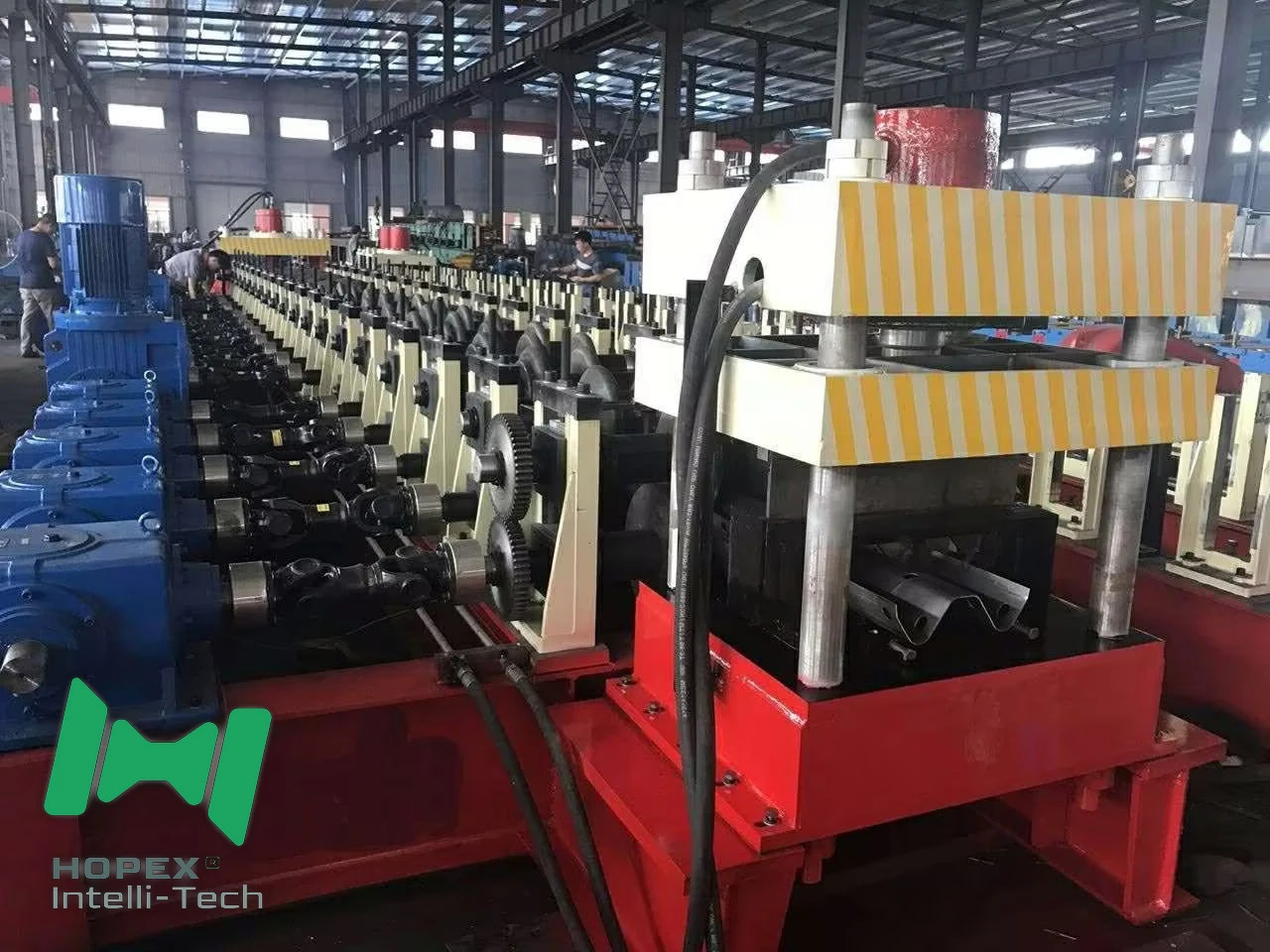

Product name	highway guardrail roll forming machine	W-profile highway barrier panels
Model number	hopex-guardrail roll forming machine	HOPEX standard configuration
Machine type	Roll Forming Machine	Cold roll forming, continuous line
Suitable material	Q235, galvanized steel / stainless steel / zinc-aluminum-magnesium alloy	Four material groups, no tooling change
Forming thickness	2.4 – 4.0 mm (0.09 – 0.16 in)	Covers common guardrail standards
Feeding width	720 mm (28.35 in)	Customizable to your coil width
Forming speed	5 – 15 m/min (16.40 – 49.21 ft/min)	Adjustable to material grade

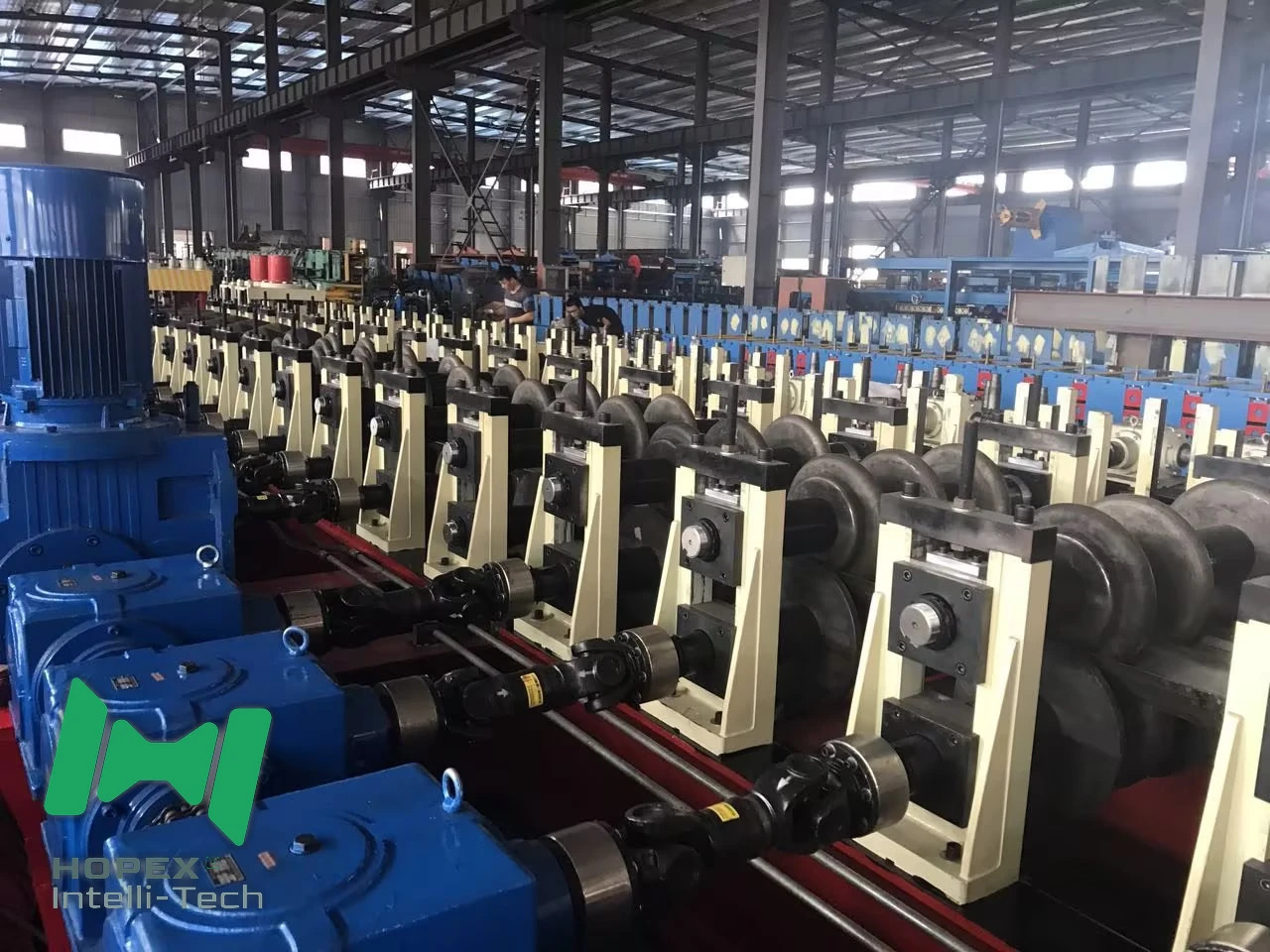

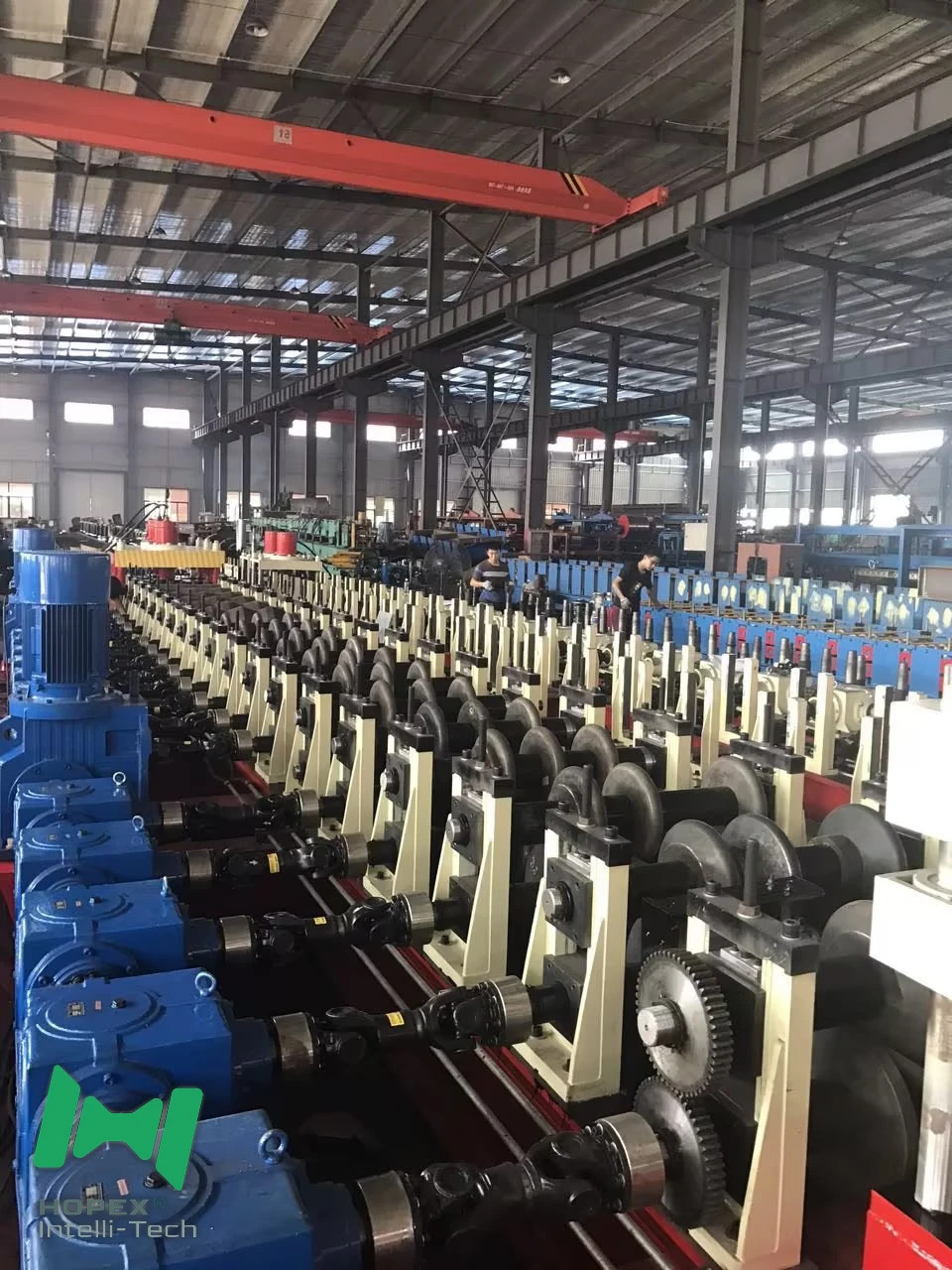

Rolling station	15 – 18 rows	Progressive forming sequence

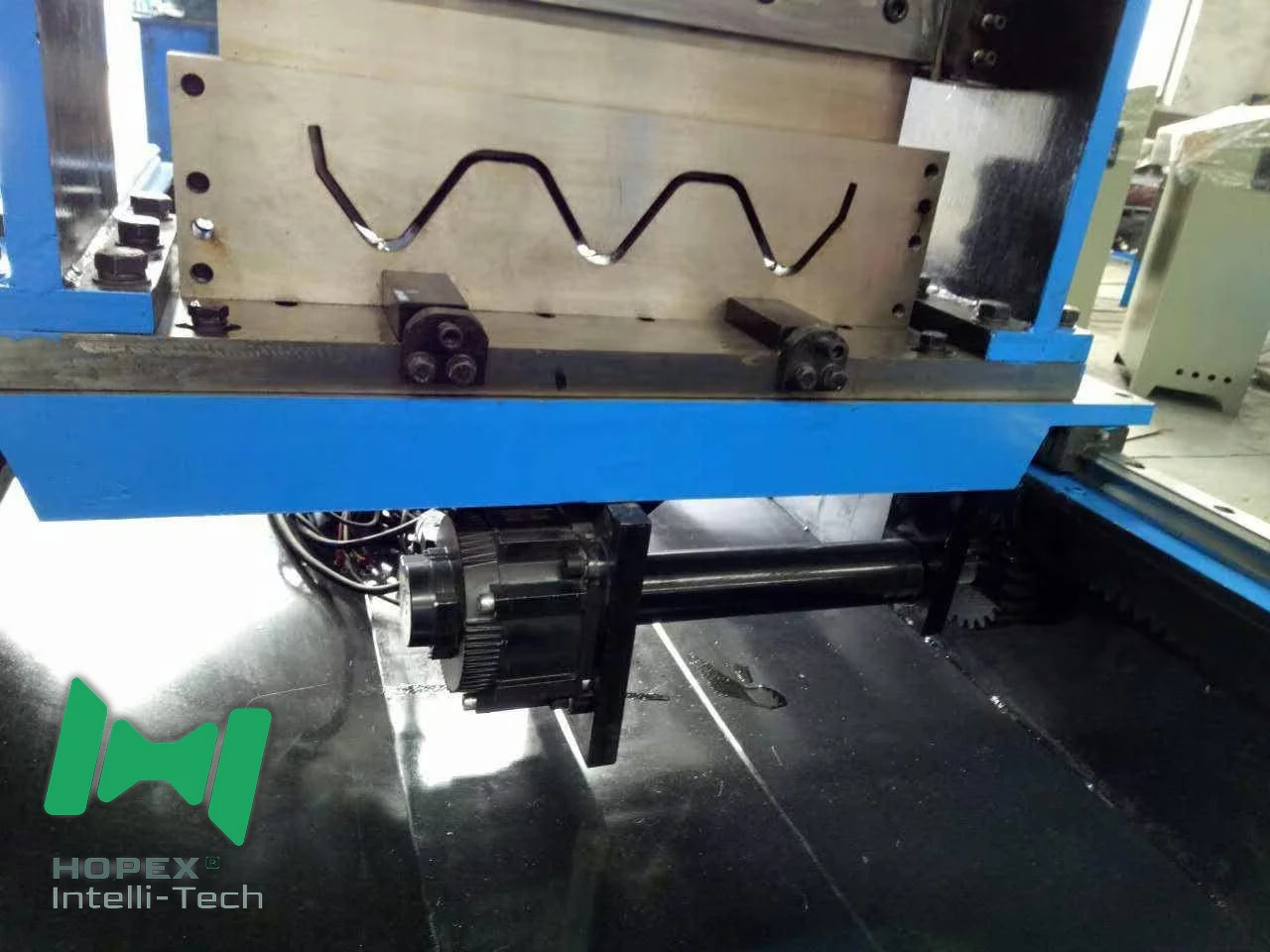

Cutting blade	Cr12, quenched treatment HRC 58–62	Edge hardness for long runs
Diameter of shaft	120 mm	Low deflection under forming load
Main motor power	Dual 22 kW motors with K107 reducer	Steady torque across speed range
Voltage	380 V	Three phase supply
Dimension (L×W×H)	14000 × 2400 × 1200 mm (551.18 × 94.49 × 47.24 in)	Line footprint
Weight	60000 kg (132277.36 lb)	Frame mass for vibration damping
Core components	Engine, PLC, Gearbox, Gear, Pump, Bearing, Motor, Pressure Vessel	Established component suppliers
Warranty	2 years	Parts replacement and repair
Place of origin	Tianjin, China	HOPEX manufacturing base
