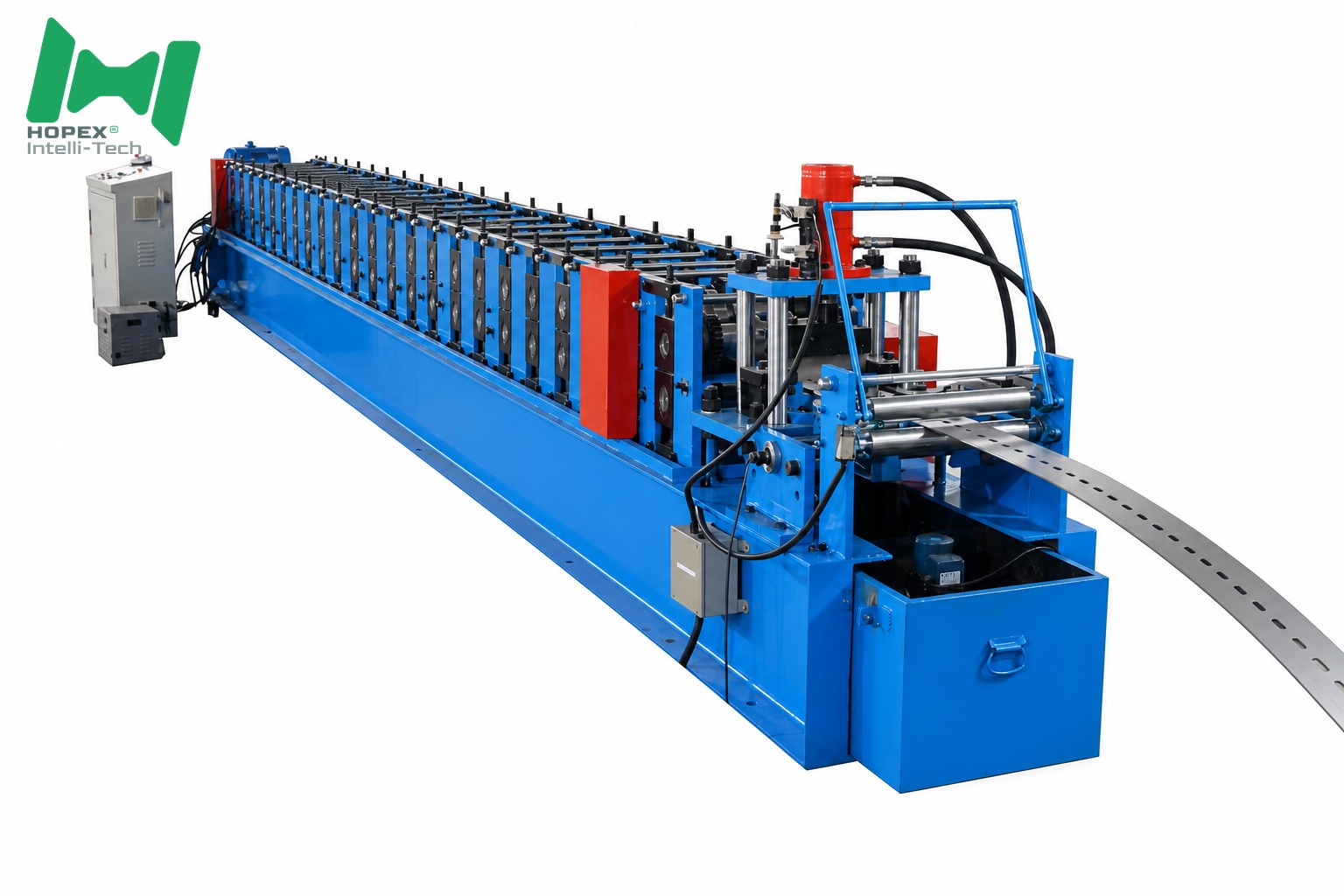

Solar Panel Bracket Roll Forming Machine — 210 mm Strut Line

Solar Panel Bracket Roll Forming Machine — 210 mm Strut Line

Product ID : solar panel bracket roll forming machine

Product Tags :

Product Attributes :

Solar panel bracket roll forming machine forming 210mm strip 2.0-3.0mm thick at 10-20 m/min with 26 roller stations and 80mm solid shafts.

Product Description

HOPEX-Solar Panel Bracket

Specification sheet first. Below is the full technical definition of the HOPEX solar panel bracket roll forming machine, followed by what each number means on the shop floor.

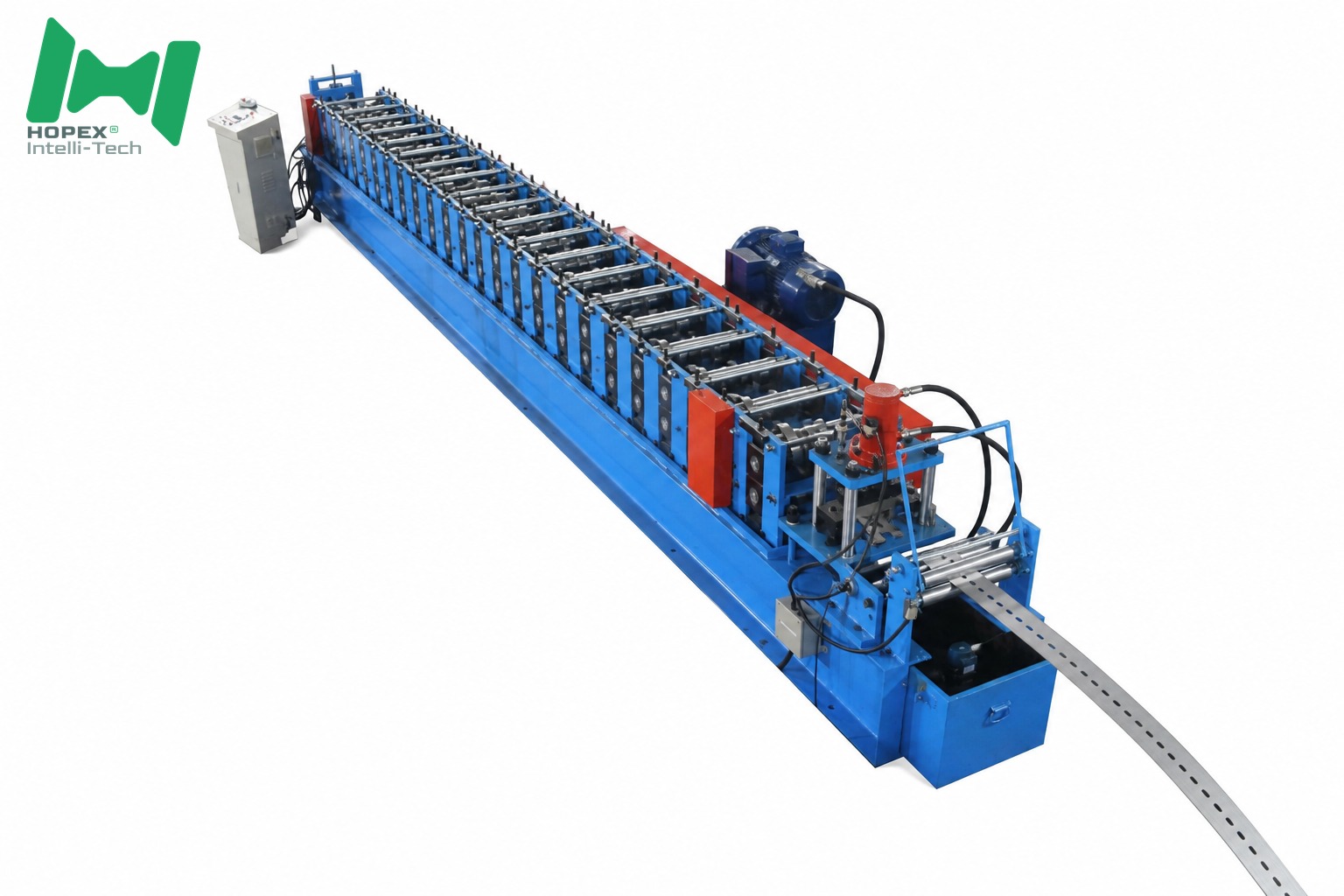

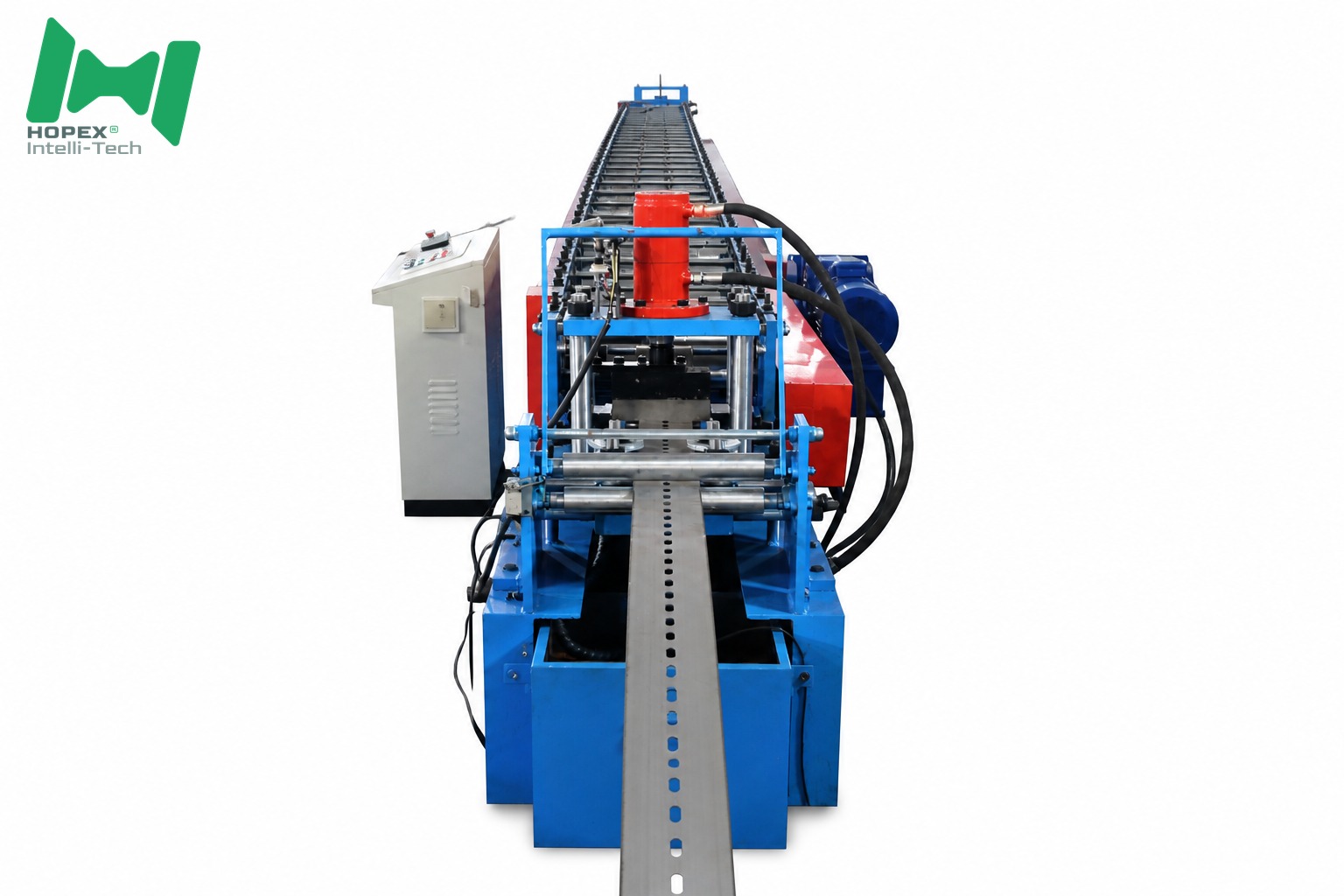

solar panel bracket roll forming machine complete production line

Full Specification Sheet

Parameter	Value	Note
Feeding strip width	210 mm	Fixed tooling configuration
Forming thickness	2.0 – 3.0 mm	Galvanized or carbon steel coil
Production capacity	10 – 20 m/min	Sustained output rate
Molding speed	15 – 30 m/min	Mill speed excluding punch dwell
Roller stations	26 lines	Progressive forming sequence
Main shaft	80 mm solid shaft	45# steel, forged, 0.05 mm chrome plated
Roller material	Cr12MoV, quenched HRC 58–62	Surface hardness for tooling life
Overall dimensions	12000 × 1550 × 1600 mm	Length × width × height
Machine weight	8000 kg	Frame mass for vibration damping
Power supply	380 V	Three phase
Installed power	18.5 KW × 2 + 11 KW × 2 + 4 KW + 3 KW	Drive + punch + cut + press
Origin	Tianjin, China	HOPEX manufacturing base
Warranty	2 years	Parts support included

Reading the Specification

Why 210 mm matters

The 210 mm feeding width fixes the developed blank length of the bracket. Because tooling is dedicated rather than adjustable, the pass design can be optimised for one section instead of compromised across several.

Why 26 stations rather than fewer

Bending 2.0 – 3.0 mm steel in few aggressive passes causes springback and edge wave. Spreading the same total deformation over 26 stations keeps each step small, so corners stay square and the zinc layer survives.

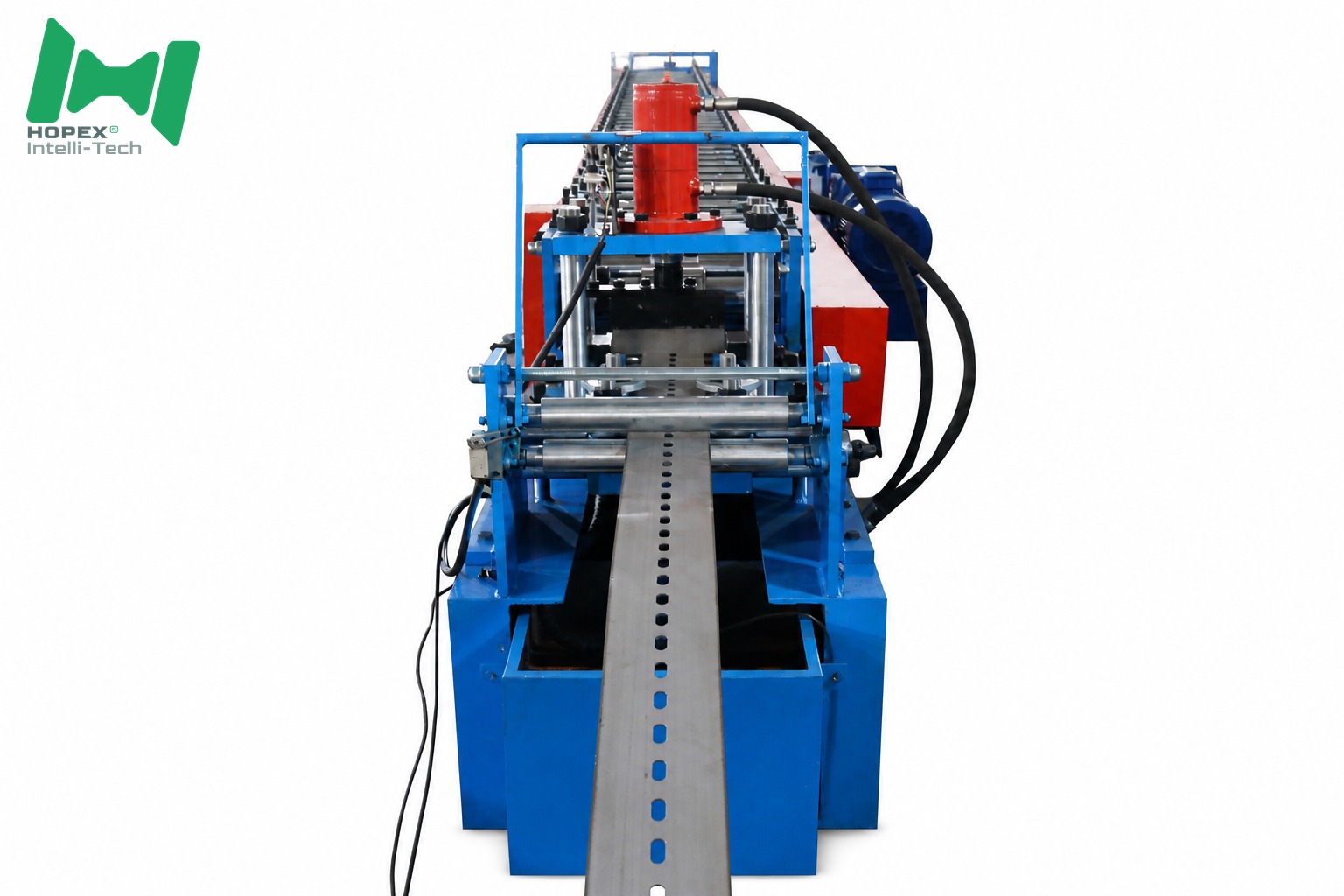

solar panel bracket roll forming machine 26-station forming rollers

Why an 80 mm solid shaft

Shaft deflection shows up directly as profile variation. An 80 mm solid shaft in 45# steel, forged, 0.05 mm chrome plated resists bending under the roll separating force generated at 3.0 mm thickness.

Line Sequence

Decoiler loads and pays off the galvanized coil.
Levelling unit removes coil set before forming.
Servo feeder positions the strip for each punch cycle.
Hydraulic punching places mounting holes in line.
26 forming stations roll the finished bracket section.
Tracking cut-off separates parts at line speed.
Output platform receives the finished brackets.

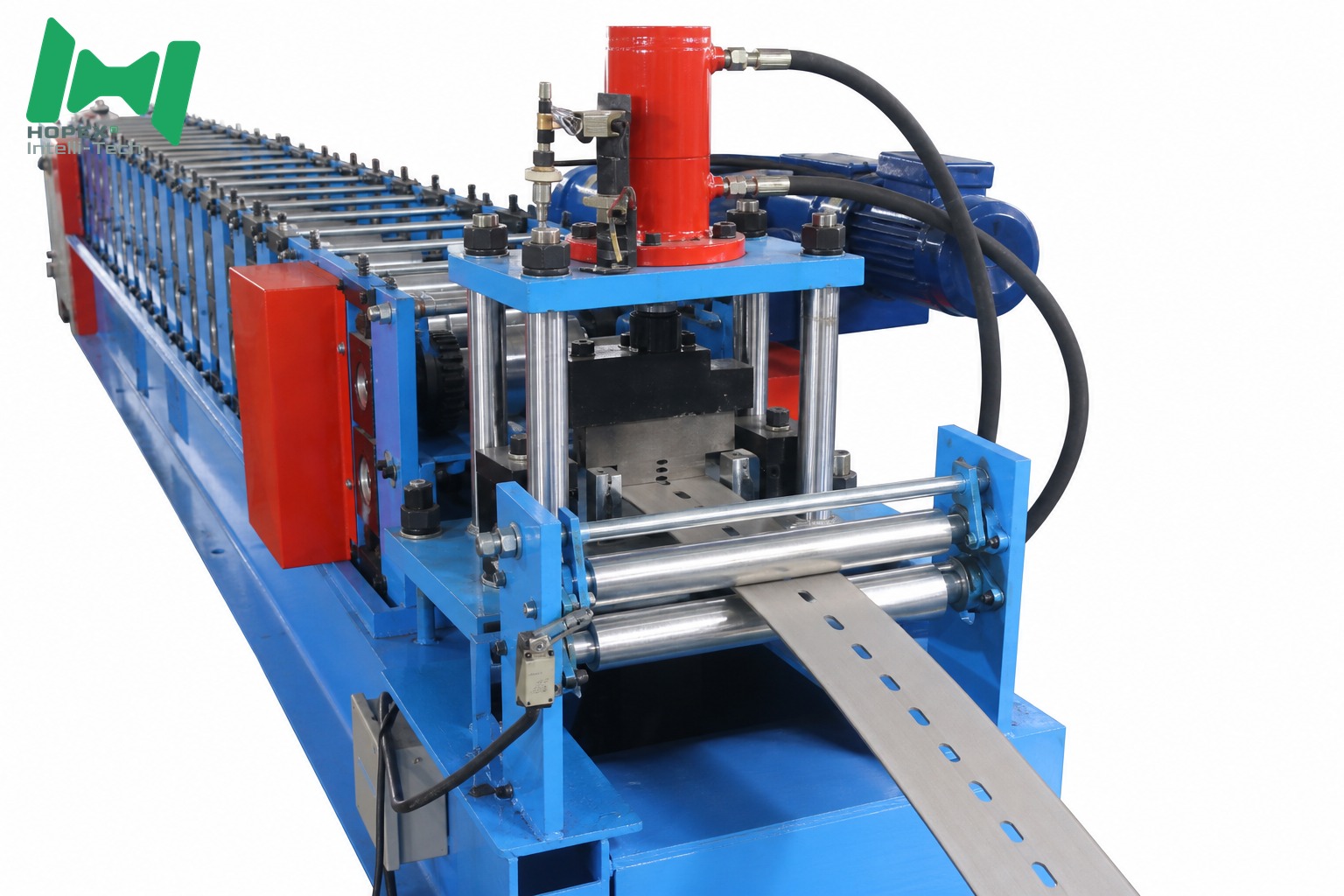

solar panel bracket roll forming machine forming station close-up

Power Distribution

Station	Rating	Function
Main forming drive	18.5 KW × 2	Drives the 26 roller stations
Punching hydraulics	11 KW × 2	In-line hole punching
Cutting hydraulics	4 KW	Tracking cut-off
Pressing hydraulics	3 KW	Material hold-down

solar panel bracket roll forming machine hydraulic power unit

Delivery Terms

Quantity	Lead time
1 set	30 days
2 – 5 sets	45 days
Above 5 sets	Confirmed with our engineers

solar panel bracket roll forming machine export packaging and container loading

Specification FAQ

Q1. Is the 210 mm width adjustable?

The line is tooled for 210 mm. Additional tooling sets can be produced against your section drawing.

Q2. What is the difference between capacity and molding speed?

Molding speed 15 – 30 m/min is the mill speed; production capacity 10 – 20 m/min is the sustained output once punching and cutting cycles are included.

Q3. How hard are the rollers?

Cr12MoV, quenched HRC 58–62.

Q4. What foundation is needed?

A level floor able to carry approximately 8000 kg over a 12000 × 1550 × 1600 mm footprint.

Q5. What supply voltage?

380 V three phase.

Q6. What documentation is supplied?

Machinery test report and video outgoing inspection, plus operation and maintenance manuals.
