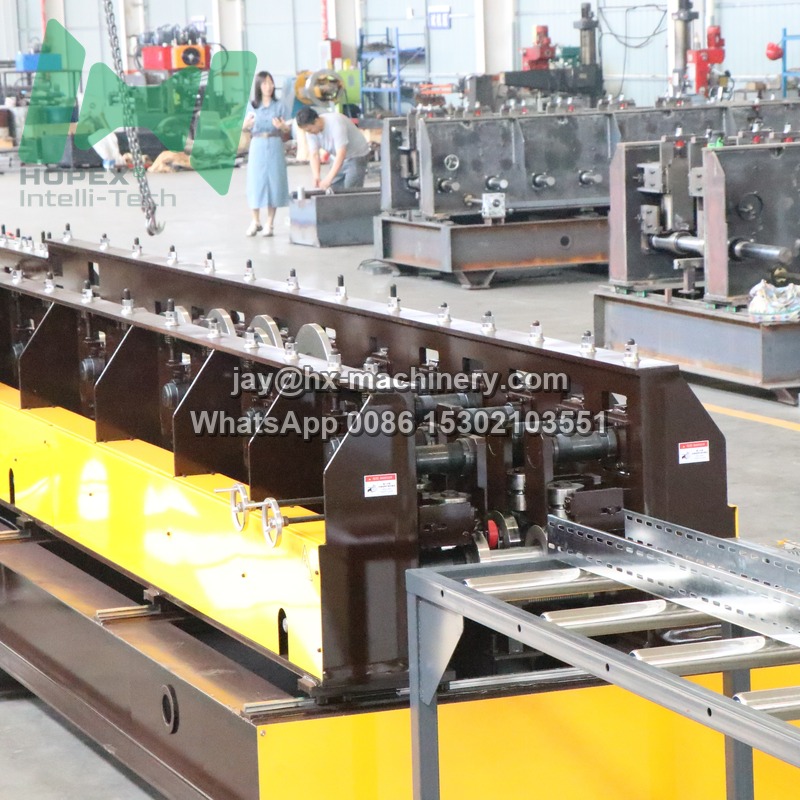

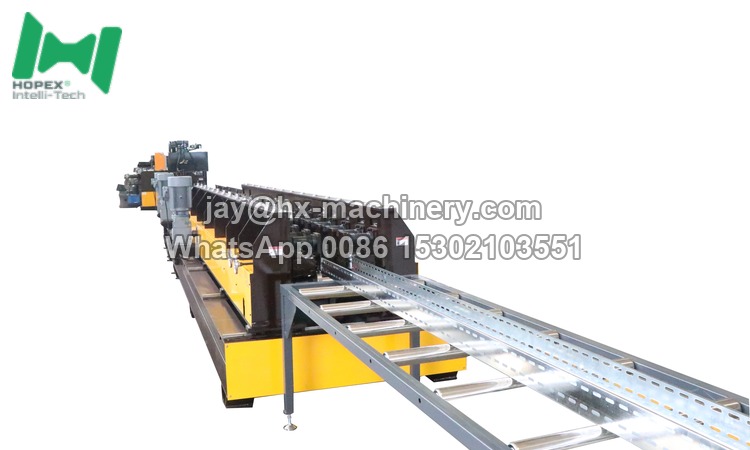

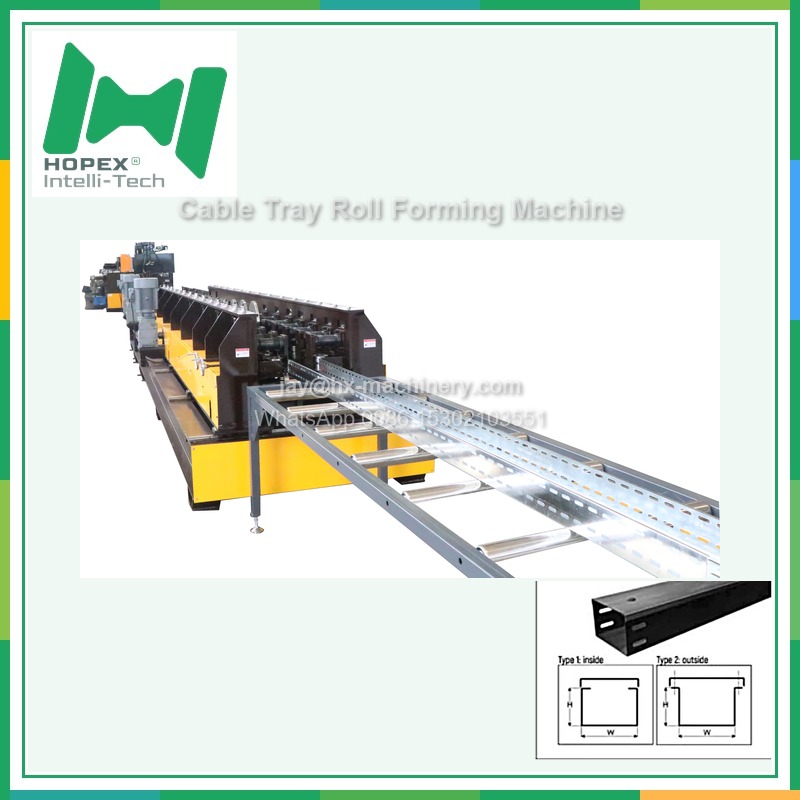

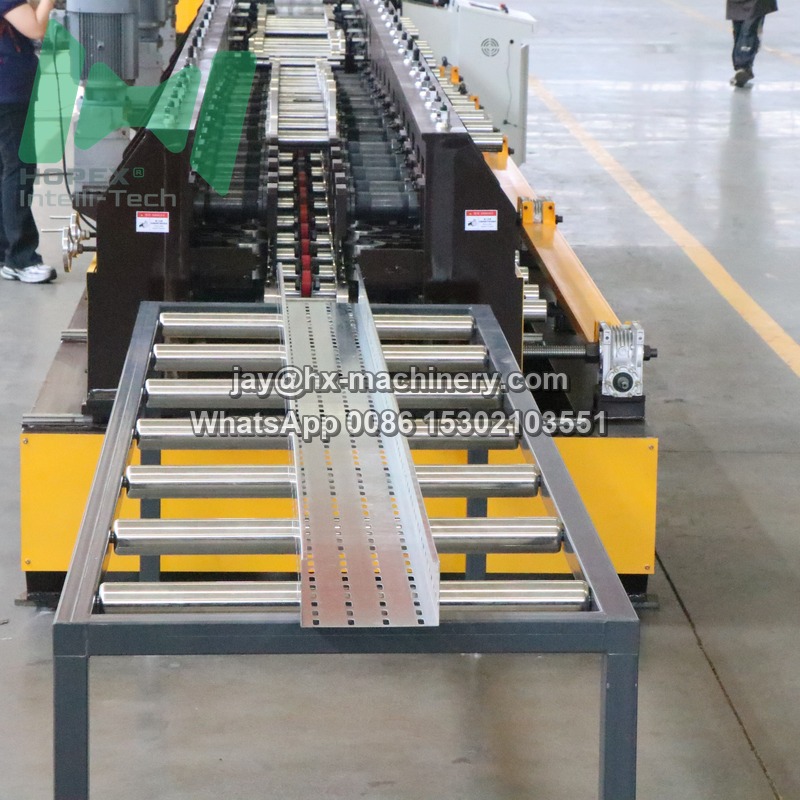

Precision cable tray punching machine with servo-driven indexing for even hole spacing and clean edges. Adjustable dies fit several tray widths, and the strong frame handles daily heavy use. Maintenance is simple, and die change is fast. Ask for the cable tray punching machine price to get a factory-direct quote. Quick delivery is guaranteed.
50-400Cable tray manufacturing machine price
Detail
50-400Cable tray forming machine manufacturers
|
No.
|
50-400Cable tray punching machine
|
|
|
1
|
Input material width | 150–850 mm |
|
2
|
Input material thickness | 0.7 (±0.03)–2.0 (±0.03) mm |
|
3
|
Input material type | Q235B cold-rolled strip steel, hot-rolled strip steel, galvanized sheet. |
|
4
|
In-line punching; production speed | 8–16 m/min |
|
5
|
Equipment footprint | 30 × 2.5 × 2.2 m (L × W × H) |
|
6
|
Material feed direction | Left-in, right-out |
|
7
|
Voltage specifications | 400V ±5%, 60Hz, 3-phase |
|
8
|
Total installed power capacity | Approx. 50 kW |
Q: 1. How do I adjust the machine for different widths and heights?
For standard lines, it can be adjusted via high-precision manual spacers. However, for our premium series (like the HOPEXcustomized lines), we integrate an automatic motorized width-adjustment system controlled entirely through the PLC touchscreen, moving the forming rollers smoothly to your desired dimensions within seconds.
Q: 2. Is the width adjustment manual or fully automatic via PLC?
We offer both options based on your budget. Our advanced cable tray and housing profile lines feature fully automatic PLC one-key changeover. The operator simply inputs the parameters on the screen, and the machine adjusts itself automatically, eliminating human error.
3. How long does a standard size/profile changeover take?
With our traditional manual adjustment lines, it takes about 1-2 hours. With our upgraded Smart PLC One-Key Changeover System, a complete width adjustment (e.g., from 100mm to 600mm for cable trays) takes less than 2 minutes, drastically reducing your downtime and boosting factory productivity.
