HOPEX-Cable Tray Equipment Support
A production line is a ten-year commitment. What happens after commissioning matters as much as the specification. This page sets out the support that comes with the cable tray equipment.
| Item | Cover |
|---|---|
| Warranty period | 2 years |
| Free maintenance | 18 months, including parts and freight |
| Technical support | Lifetime |
| After-sales service | Online support provided |

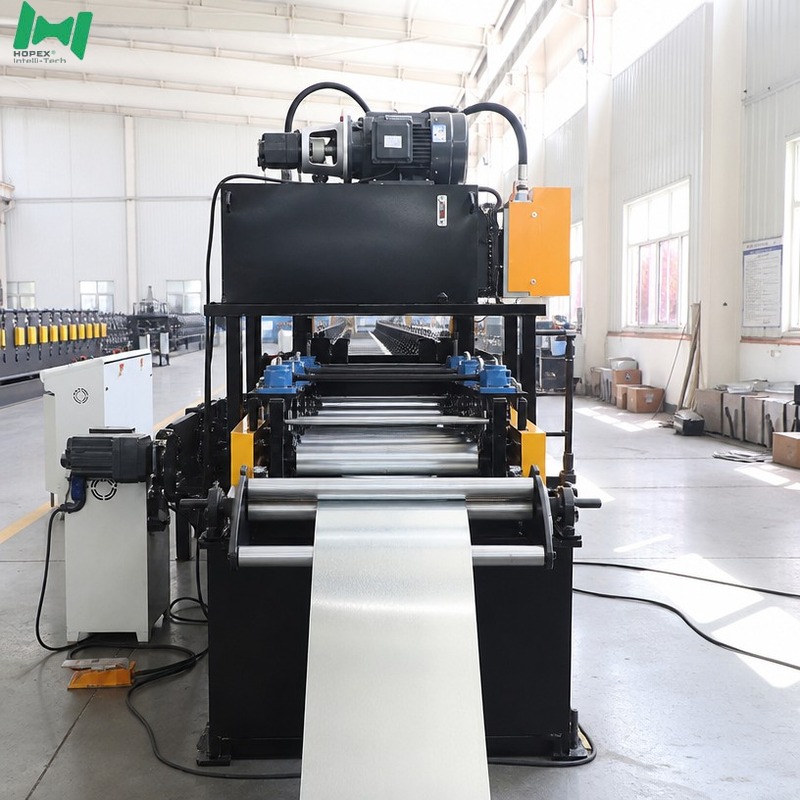

One worker is sufficient to run the line in normal production. Routine attention focuses on the roller surfaces, the hydraulic circuit and the levelling section, since those govern tray quality on 0.8 – 1.5 mm strip.
| Item | Parameter |
|---|---|
| Strip width | 200 – 650 mm |
| Strip thickness | 0.8 – 1.5 mm (±0.03 mm) |
| Speed | 8 – 16 m/min |
| Roller rows | 26 |
| Roller material | 45# steel, quenched and hard chromed |
| Shaft | 70 mm solid shaft, 45# steel, tempered |
| Workpiece length | 2000 – 3000 mm |
| Main motor | 7.5 KW × 3 |
| Footprint | 30 × 2.5 × 2.2 m |
| Weight | 50000 kg |
| Installed capacity | about 50 KW |
| Supply | 400 V ±5%, 60 Hz |
| Suitable material | Q235 galvanized steel, stainless steel or zinc-aluminium-magnesium alloy |
| Quantity | Lead time |
|---|---|
| 1 set | 30 days |
| 2 – 5 sets | 45 days |
| Above 5 sets | To be negotiated |
Q1. What warranty period applies?
2 years, covering engine, PLC, gearbox, gear, pump, bearing, motor and pressure vessel.
Q2. Is maintenance really free for 18 months?
18 months of free maintenance is provided, including the parts and their freight.
Q3. What documents come with the machine?
Machinery test report and video outgoing-inspection, together with CE certification.
Q4. Is installation training included?
Yes, together with operator training on the control interface.
Q5. How long does technical support last?
Lifetime technical support, with online after-sales support.
Q6. Can the line be customised to our tray profile?
Minor, drawing-based, sample-based and full customisation are all available.
