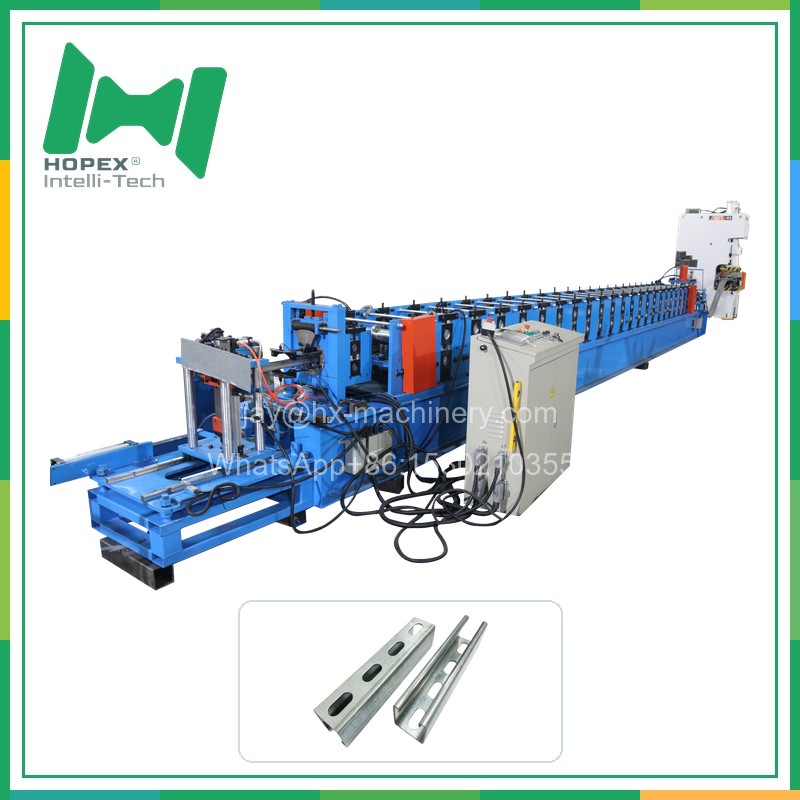

Photovoltaic Bracket Roll Forming Machine | HOPEX 41x21-72

Photovoltaic Bracket Roll Forming Machine | HOPEX 41x21-72

Combine solar bracket roll forming machine with photovoltaic bracket roll forming machine for dual-purpose lines. The solar structure making machine creates mounts and frames from coil. Strut channel roll forming machine, unistrut roll forming machine and strut channel machine complete the 41*21/41/62/72mm program.

Come and add WhatsApp for consultation, exclusive customer service online answers, limited-time discounts are waiting for you!

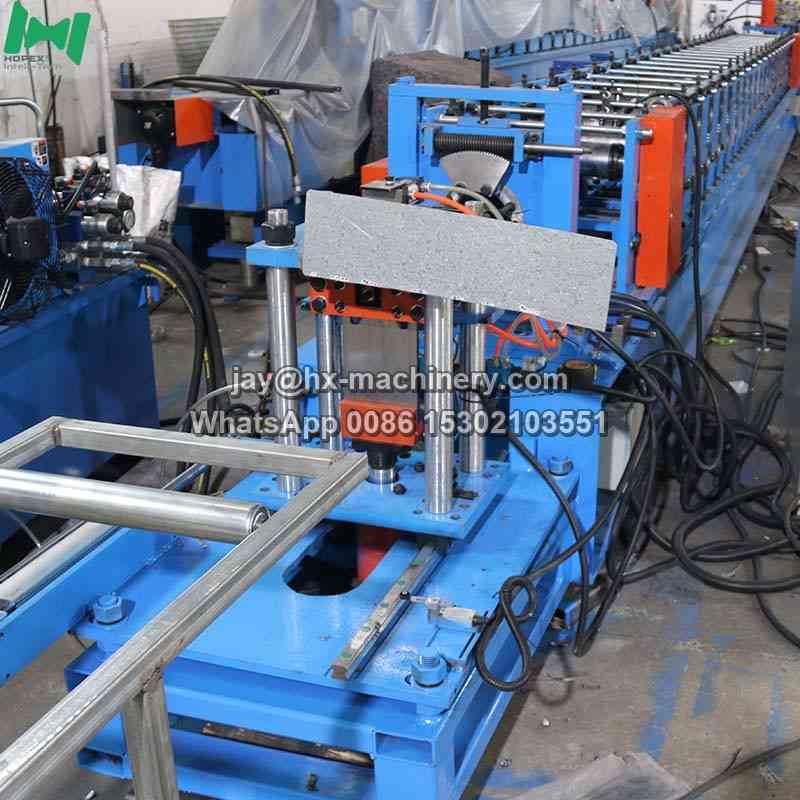

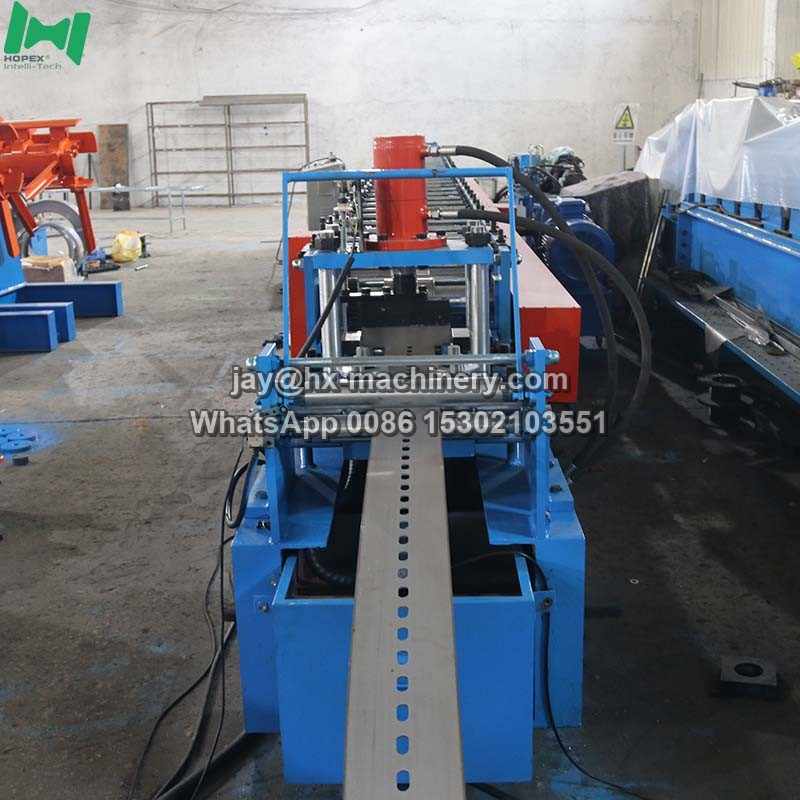

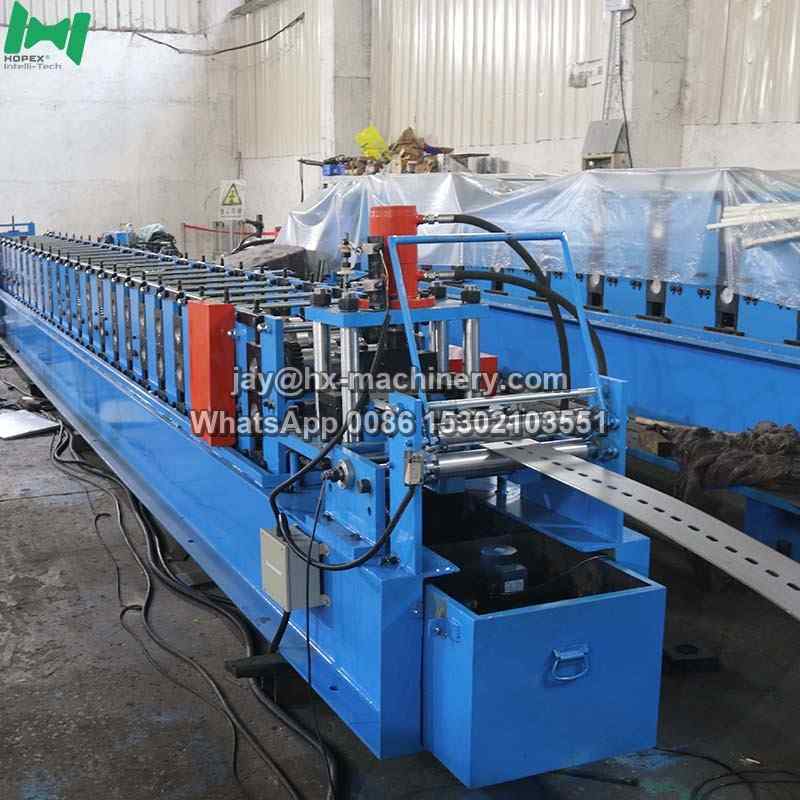

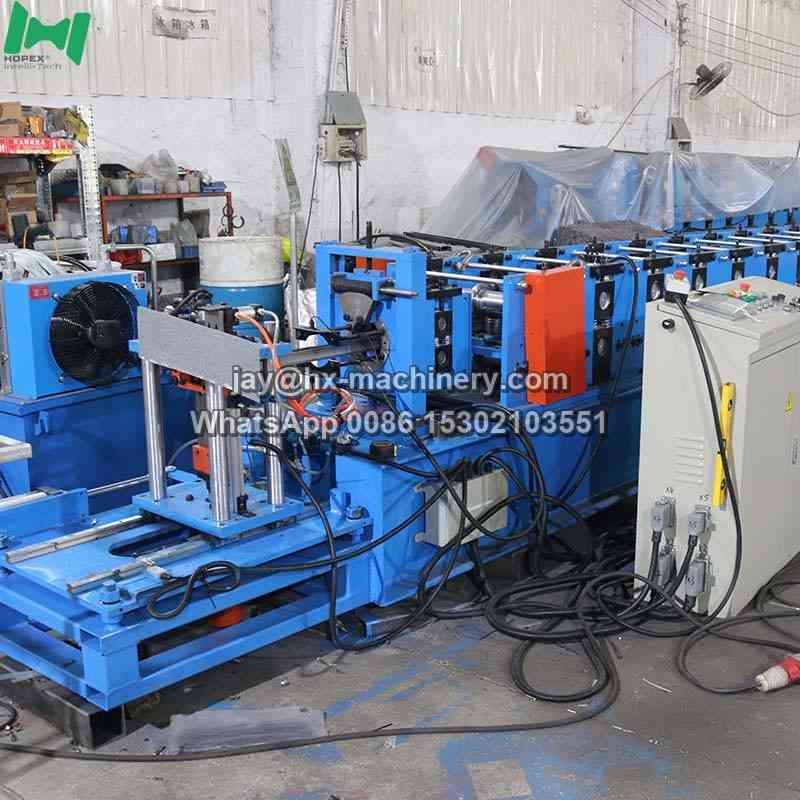

solar structure making machine

Detail

solar structure machine

Q: 1. How do I adjust the machine for different widths and heights?

For standard lines, it can be adjusted via high-precision manual spacers. However, for our premium series (like the HOPEXcustomized lines), we integrate an automatic motorized width-adjustment system controlled entirely through the PLC touchscreen, moving the forming rollers smoothly to your desired dimensions within seconds.

Q: 2. Is the width adjustment manual or fully automatic via PLC?

We offer both options based on your budget. Our advanced cable tray and housing profile lines feature fully automatic PLC one-key changeover. The operator simply inputs the parameters on the screen, and the machine adjusts itself automatically, eliminating human error.

3. How long does a standard size/profile changeover take?

With our traditional manual adjustment lines, it takes about 1-2 hours. With our upgraded Smart PLC One-Key Changeover System, a complete width adjustment (e.g., from 100mm to 600mm for cable trays) takes less than 2 minutes, drastically reducing your downtime and boosting factory productivity.
