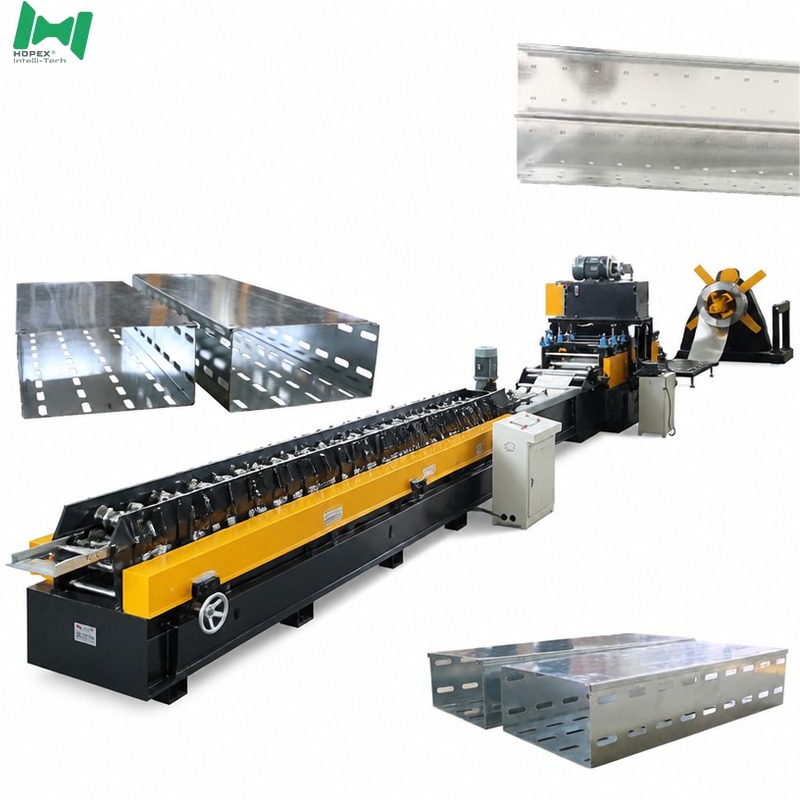

PLC Cable Tray Making Line — Control, Recipes and Language

HOPEX-PLC Cable Tray Line

The control system decides how much of the operator's knowledge has to be re-entered every morning. On this PLC cable tray making line the settings live in the controller, not in the operator's notebook.

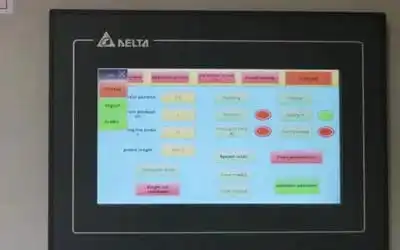

Controller

What the Operator Sets

1. Tray width within 200 – 650 mm.
2. Strip thickness within 0.8 – 1.5 mm.
3. Workpiece length within 2000 – 3000 mm.
4. Hole pattern for the punching station.
5. Batch quantity.

Why Language Switching Matters

A line delivered to a Spanish-speaking plant with an English-only interface loses half its usability on day one. The controller switches between English and Spanish, and other languages can be arranged on request.

What the Control System Governs

Hydraulic Interface

• Two solenoid valve sets driven from the control system.
• #46 hydraulic oil, blue, or to your specification.

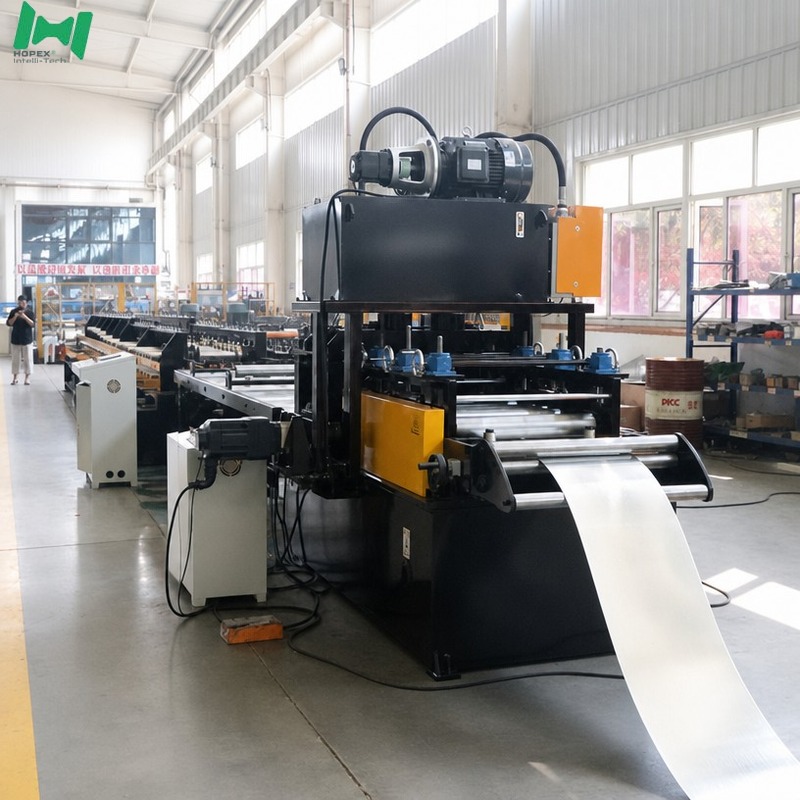

• Hydraulic station operation for punching and cutting.

Mechanical Data Behind the Control

Training and Support

• Installation training provided.
• 2 years warranty with 18 months free maintenance covering parts and freight.
• Lifetime technical support.
• Online support after sales.

Control FAQ

Q1. Which PLC is fitted?

PLC, Taiwan Delta or Siemens.

Q2. Can the interface run in Spanish?

Yes. English and Spanish are switchable, and other languages can be arranged.

Q3. Are settings stored between shifts?

Width, thickness, length, hole pattern and batch quantity are entered and held in the controller.

Q4. How many operators does the line need?

One worker is sufficient in normal production.

Q5. What power supply does the control system require?

400 V ±5%, 60 Hz, with total installed capacity of about 50 KW.

Q6. Is training included?

Installation training is provided, together with lifetime technical support.
