PV Seismic Bracket Making Machine — Who Buys This Line and Why

HOPEX-PV Seismic Bracket

Four types of business buy a pv seismic bracket making machine, for four different reasons. Identifying which one you are usually clarifies the specification.

Buyer 1 — Mounting System Brands

Brands that sell a catalogue of mounting components need consistent sections across years of production, because their fittings must remain compatible with channel produced long after the original batch.

What matters most to them

• Dimensional repeatability over long periods.
• Cr12 tooling that resists gradual profile drift.
• Ability to run 135 mm, 157 mm, 177 mm and 197 mm for a full product range.

Buyer 2 — EPC Contractors

Contractors producing for their own projects care about schedule certainty. A delay in bracket supply stops installation crews.

What matters most to them

• 10 – 15 m/min sustained forming speed for project volumes.

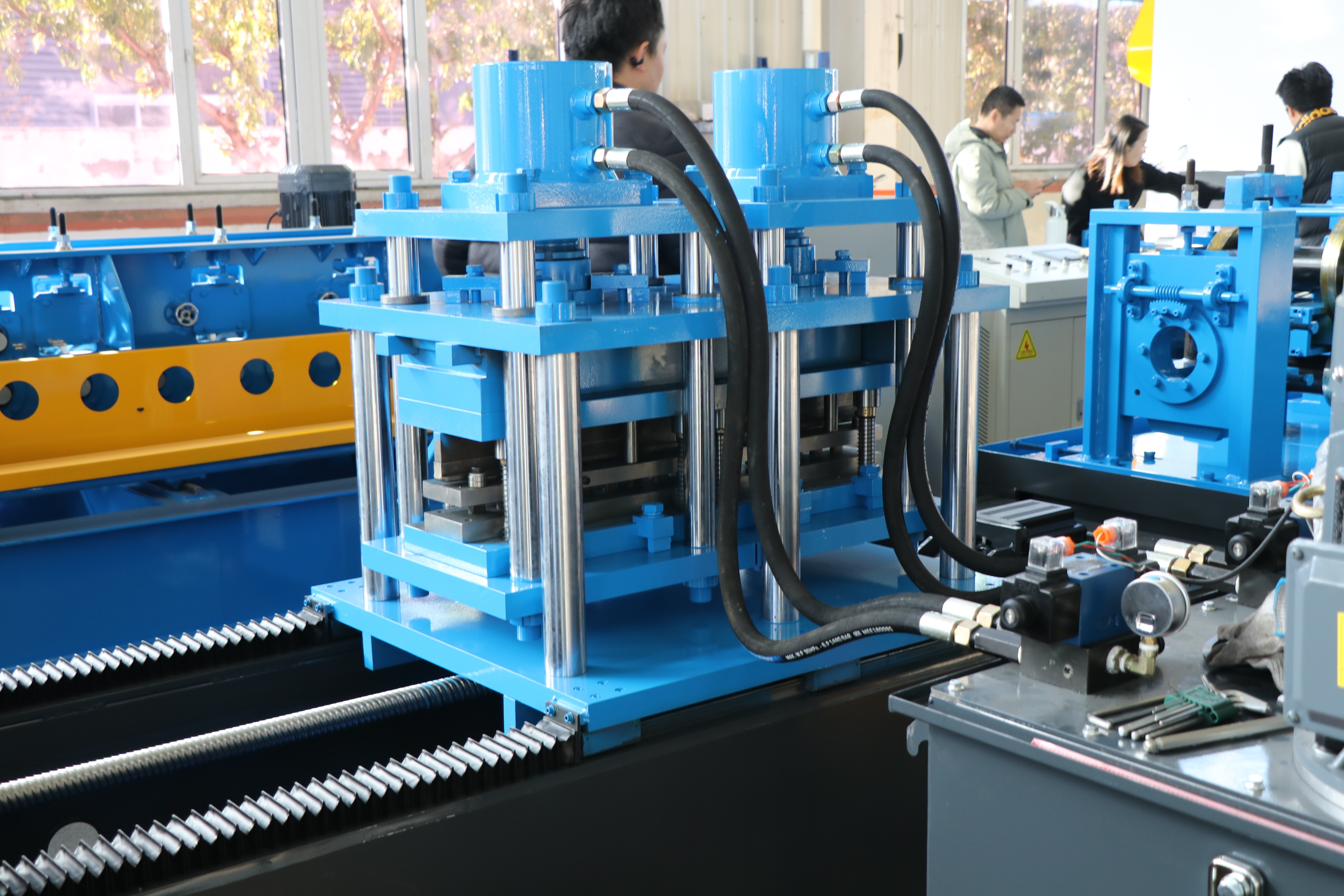

• In-line punching so parts arrive on site ready to bolt.
• Lead time of 75 days for a single set, planned into the project.

Buyer 3 — Channel and Strut Fabricators

Fabricators serving electrical, mechanical and seismic support markets need one line that covers several section sizes, because their order book is mixed.

What matters most to them

• Four widths on a single mill.
• 1.5 – 2.5 mm thickness range covering light and structural duty.
• Changeover as a setting operation rather than a machine change.

Buyer 4 — Contract Manufacturers

Contract producers work to other people's drawings, so customisation capability decides whether they can accept an order at all.

What matters most to them

• Drawing-based customisation.
• Sample-based customisation from a physical part.
• Full customisation for non-standard sections.

Common Specification

Lead Time by Order Size

Buyer FAQ

Q1. We are a mounting system brand. What matters most?

Long-term dimensional repeatability, which comes from Cr12 tooling and 40Cr shafts holding the section over years of production.

Q2. We are an EPC contractor. Can this meet project schedules?

Forming speed is 10 – 15 m/min, and lead time is 75 days for one set, which should be planned into procurement.

Q3. Our order book is mixed. Is one line enough?

135 mm, 157 mm, 177 mm and 197 mm run on this mill, so mixed section orders do not require separate equipment.

Q4. We work to customer drawings. Is customisation supported?

Minor, drawing-based, sample-based and full customisation are all available.

Q5. What thickness range is covered?

1.5 – 2.5 mm.

Q6. Where is the machine built?

Tianjin, China.
