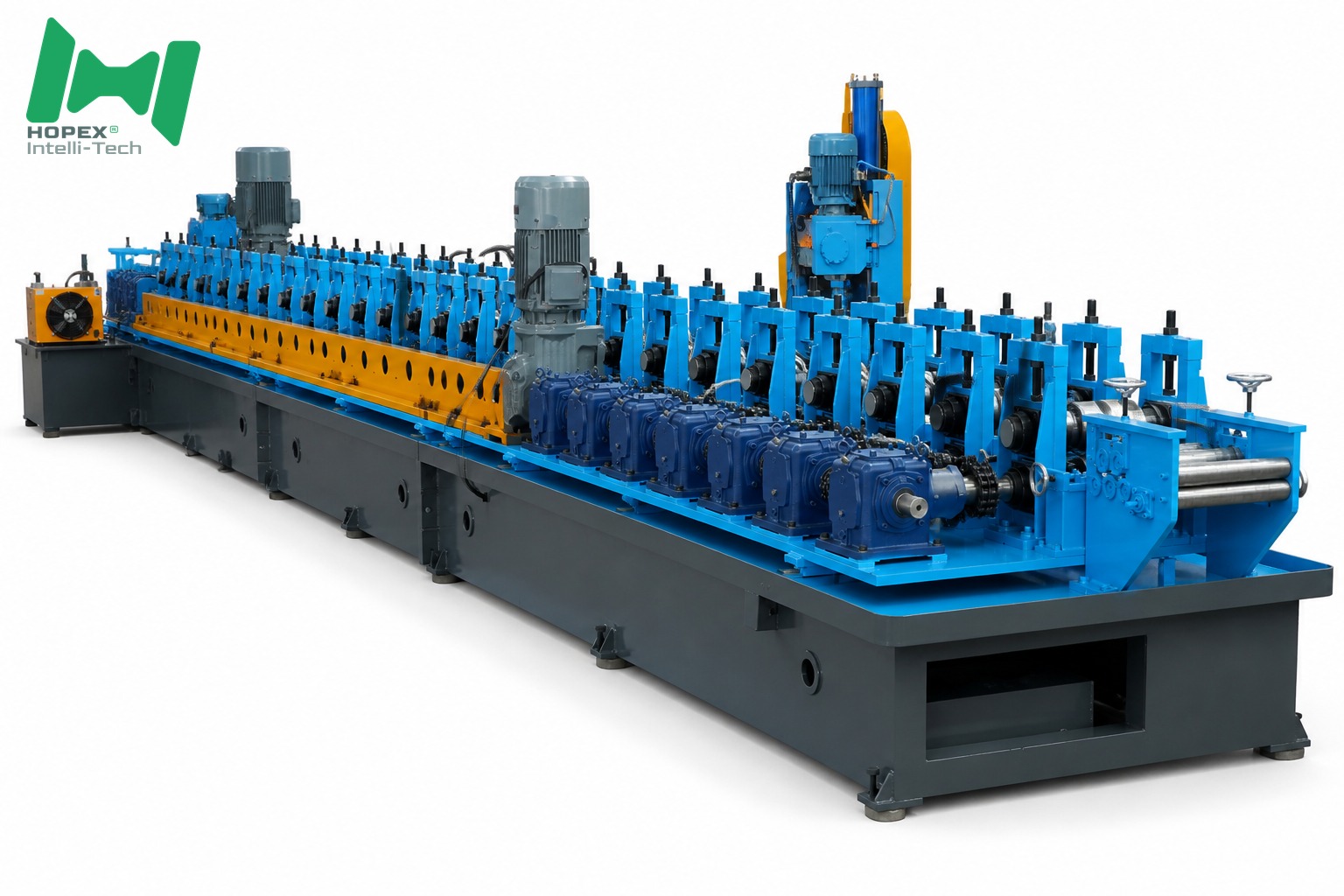

Seismic Bracket Production Line — Turnkey Scope and Handover

Seismic Bracket Production Line — Turnkey Scope and Handover

Product ID : seismic bracket production line

Product Tags :

Product Attributes :

Turnkey seismic bracket production line: scope of supply, four widths, 1.5-2.5mm thickness, 69KW load, 75-90 day lead time.

Product Description

HOPEX-Seismic Bracket Line

This page defines the seismic bracket production line as a delivered project: what is in scope, what you provide, and what handover looks like.

Scope of Supply

Section	Included	Notes
Decoiling	Yes	Coil pay-off for the four feeding widths
Forming mill	Yes	Cr12 rollers on 40Cr shafts
Punching station	Yes	In-line, before the section closes

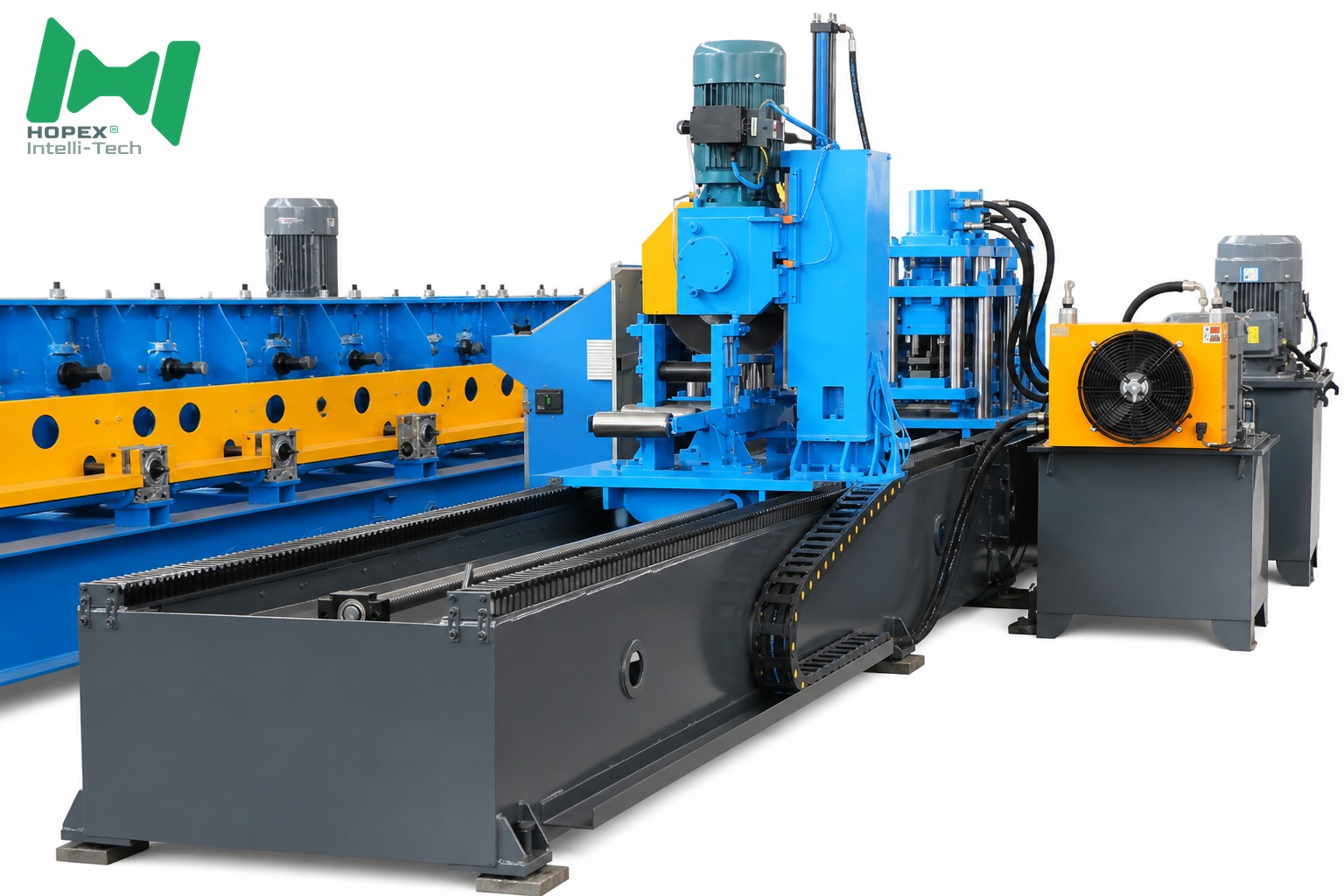

Cut-off	Yes	Cr12MoV blade
Drive	Yes	Gearbox and arch frame
Control cabinet	Yes	380 V three phase, 69 KW connected load
Output	Yes	Receives finished channel

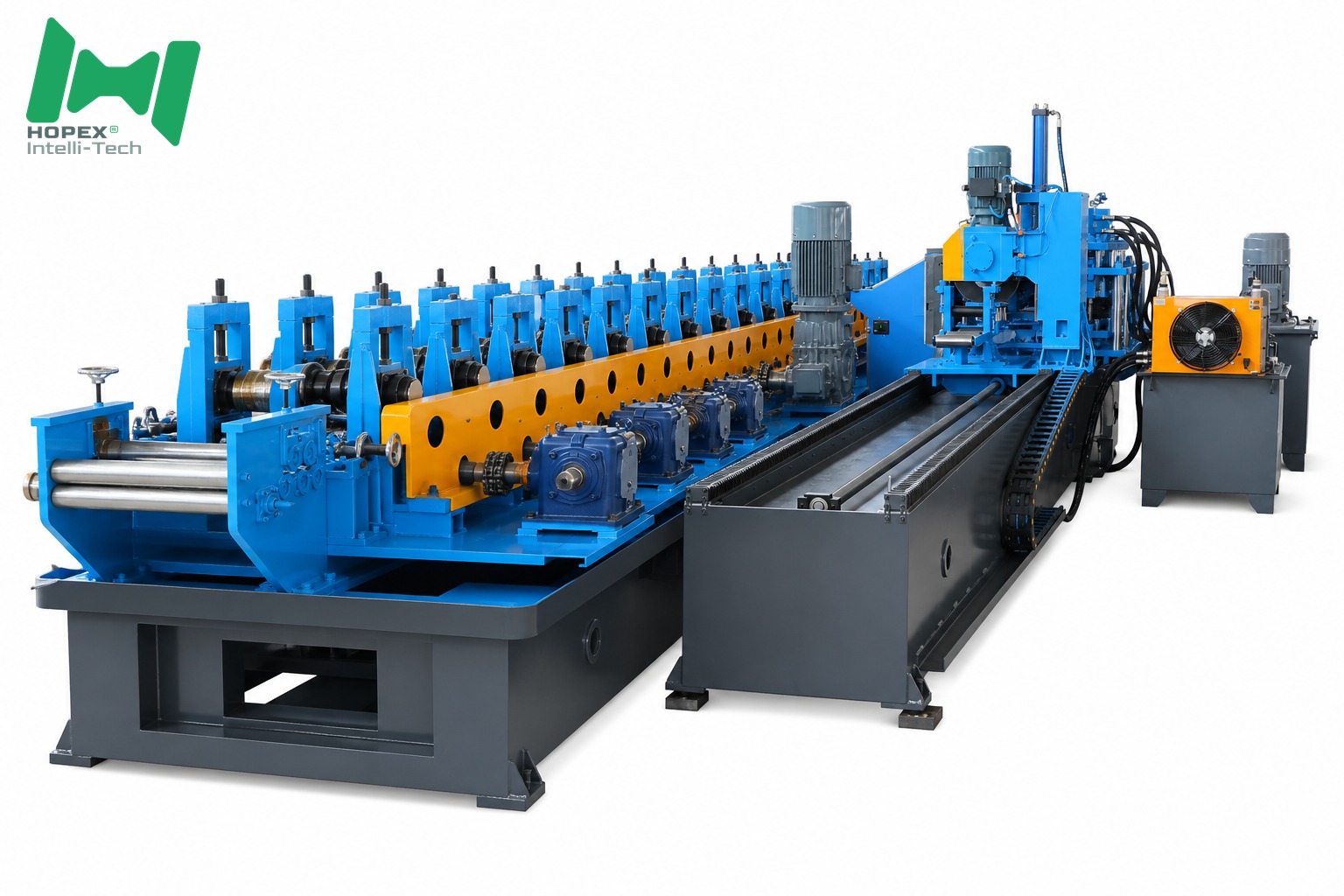

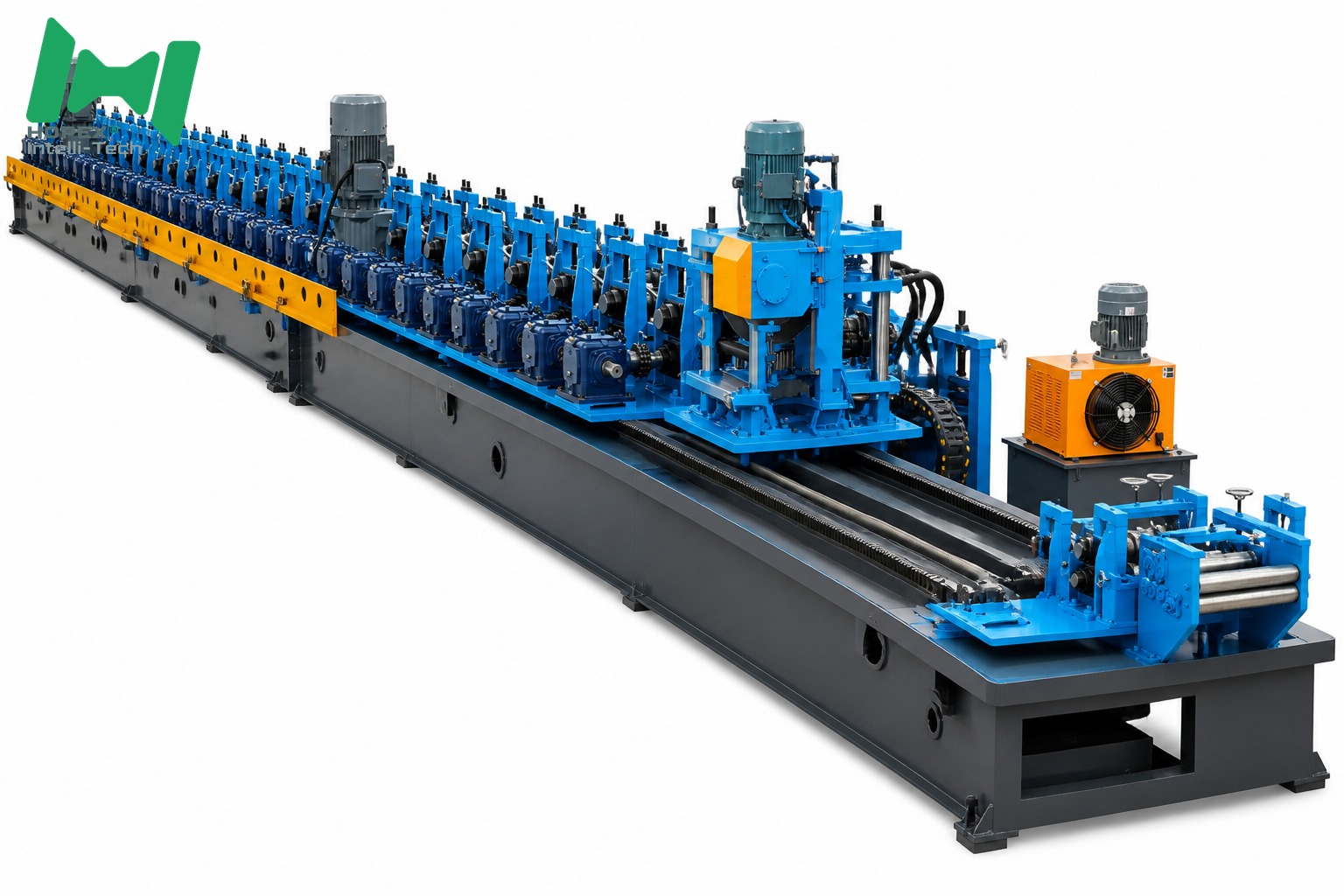

seismic bracket production line complete production line

Production Capability Delivered

Capability	Value
Feeding widths	135 / 157 / 177 / 197 mm
Raw material thickness	1.5 – 2.5 mm
Roll forming speed	10 – 15 m/min
Machine weight	20000 kg
Package size	2600 × 300 × 200 cm

Your Scope

Level floor able to carry 20000 kg.
380 V three phase supply sized for 69 KW.
Coil handling and storage.
Operators available for training at commissioning.

seismic bracket production line electrical control cabinet

Project Timeline

Stage	Duration
Order to dispatch, 1 set	75 days
Order to dispatch, 2 – 5 sets	90 days
Above 5 sets	To be negotiated

Pre-Dispatch

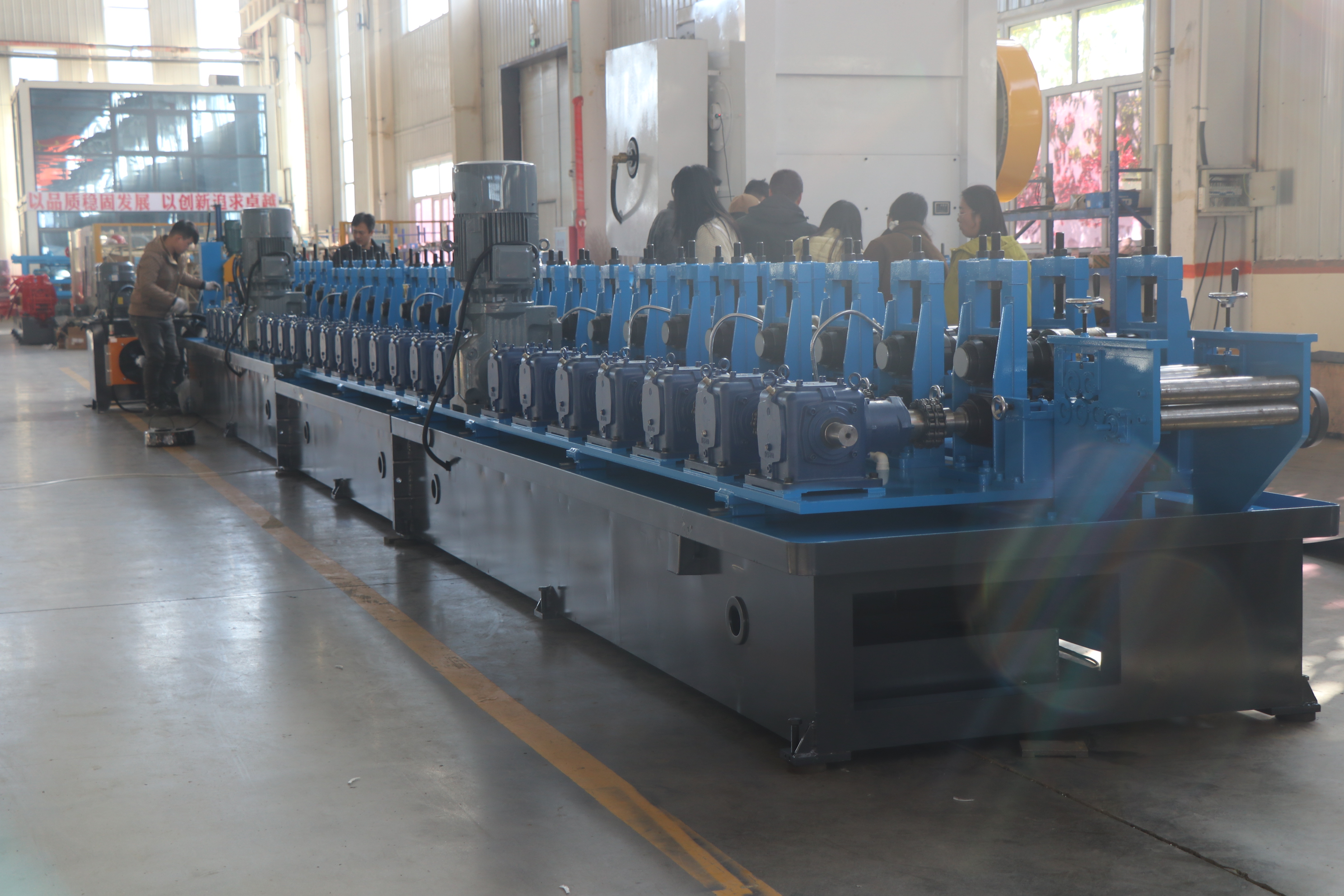

Line assembled and trial run in Tianjin, China.
Machinery test report issued.
Video outgoing-inspection recorded for your approval.
Packed at 2600 × 300 × 200 cm and container loaded.

seismic bracket production line export packaging and container loading

Handover Checklist

Line positioned and levelled.
Electrical and hydraulic connections completed.
Dry run at 10 – 15 m/min confirmed.
First article produced and checked against your drawing.
Operator training on width changeover and hole pattern setting.
Manuals and maintenance schedule handed over.

Customisation Available

Minor customisation of the standard line.
Drawing-based customisation to your section.
Sample-based customisation from a physical part.
Full customisation for non-standard requirements.
Packaging and logo or graphic design options.

Warranty and Support

2 years warranty on core components: pressure vessel, motor, bearing, gearbox, engine, pump and gear. Technical response within one hour during business hours.
