Solar Panel Mounting Bracket Roll Forming Machine — Pre-Punched Output

HOPEX-Mounting Bracket

Mounting brackets are only as good as their hole pattern. This solar panel mounting bracket roll forming machine punches inline with a servo dual-module reverse punching unit, so hole pitch stays uniform along every bracket.

The mill forms 41×41, 41×52, 41×62 and 41×72 sections from galvanized strip 1.5–2.5 mm thick at 10–15 m/min. Consequently brackets arrive on site ready to bolt, with no field drilling.

For manufacturers whose customers assemble arrays quickly and cannot tolerate misaligned holes.

---

Punching and Assembly Accuracy

• Servo-positioned holes — the feeder indexes strip before each punch stroke.
• Non-stop operation — dual reverse modules punch without halting the mill.
• Consistent pitch — hole spacing repeats along the full 6000 mm workpiece.
• Independent hydraulics — 11 KW × 2 pump station dedicated to punching.
• Material pressing station — separate 3 KW pump keeps strip flat at the punch.
• ±0.03 mm thickness tolerance — stable input gauge supports stable hole quality.



---

Why Inline Punching Changes Assembly

Off-line drilling introduces two problems. First, each handling step adds positional error. Second, batch drilling breaks the production rhythm.

This solar panel mounting bracket roll forming machine removes both. The servo feeder positions material, the reverse punching modules form holes while the strip advances, and the section then passes through 26 forming passes before a tracking circular saw cuts to length.

Moreover, the punching hydraulics run on a dedicated 11 KW × 2 pump station, separate from the 4 KW cutting station and 3 KW pressing station. Therefore punch force stays consistent even at maximum line speed.

---

Production Process Flow

Decoiler → 5-Roll Leveller → Servo Feeding → Non-Stop Reverse Punching → 26-Pass Roll Forming → Tracking Circular Saw → Output Platform

---

Technical Specifications

Machine Conditions

Item	Parameter
Overall dimensions (L×W×H)	26 × 3 × 2 m
Hydraulic oil	46# hydraulic oil
Gear oil	18# hypoid gear oil
Total installed capacity	Approx. 95 KW

Main Technical Parameters

Item	Parameter
Rolling specifications	41×41 / 41×52 / 41×62 / 41×72
Feeding strip width	135 mm, 157 mm, 177 mm, 197 mm
Strip thickness	1.5 (±0.03) – 2.5 (±0.03) mm
Strip material	Galvanized steel
Inline punching & production speed	10–15 m/min
Workpiece length	≤ 6000 mm
Forming thickness range	1.5 – 2.5 mm



---

Supply Scope & Configuration

1. Decoiler

• Hydraulic expansion mandrel with electric uncoiling
• Load capacity: 3 tons
• Uncoiling inner diameter: 480–520 mm
• Maximum coil outer diameter: 1600 mm

2. Levelling Section

• 5-roll levelling unit
• Levelling shaft diameter: 70 mm
• Shaft material: 40Cr, high-frequency quenched

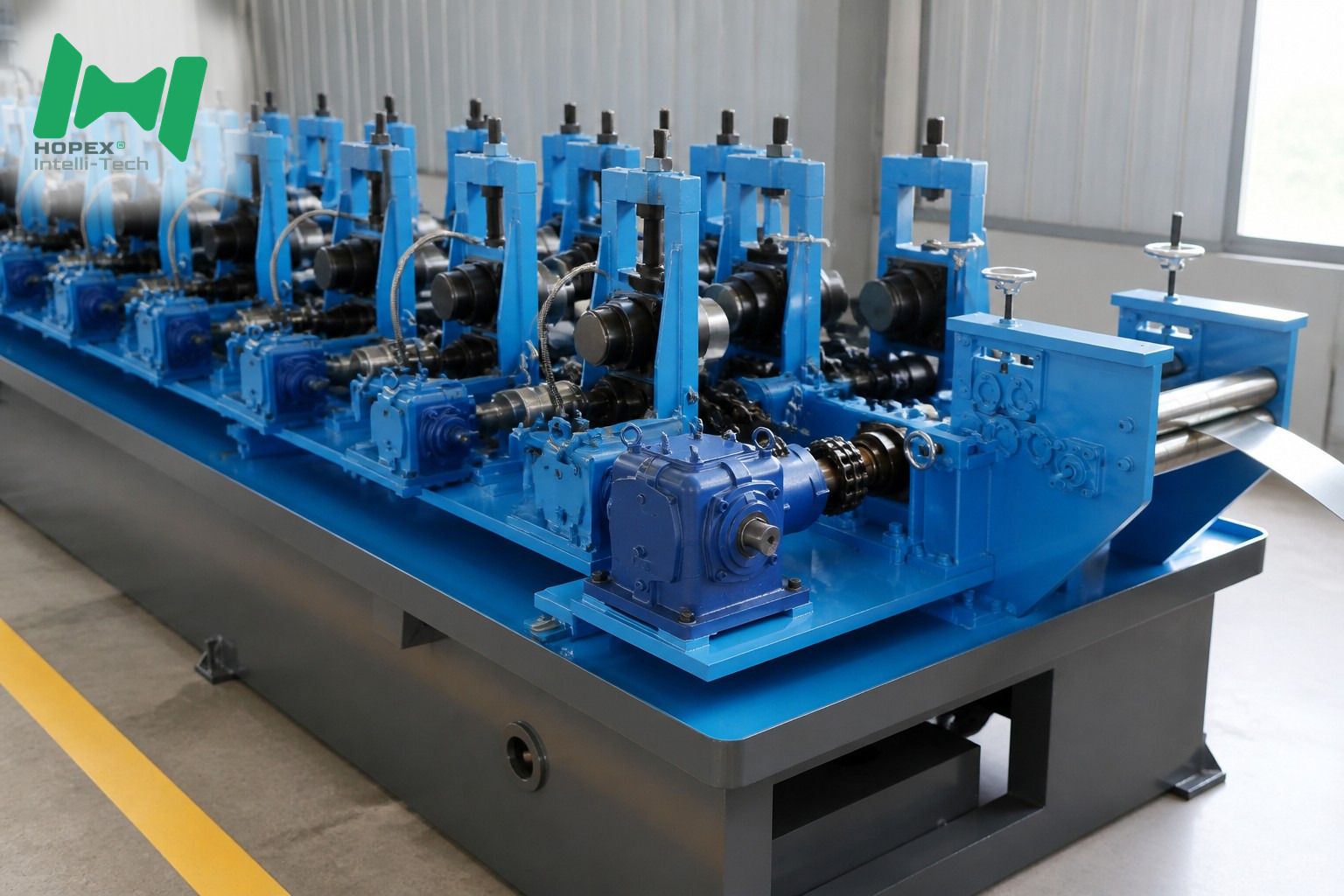

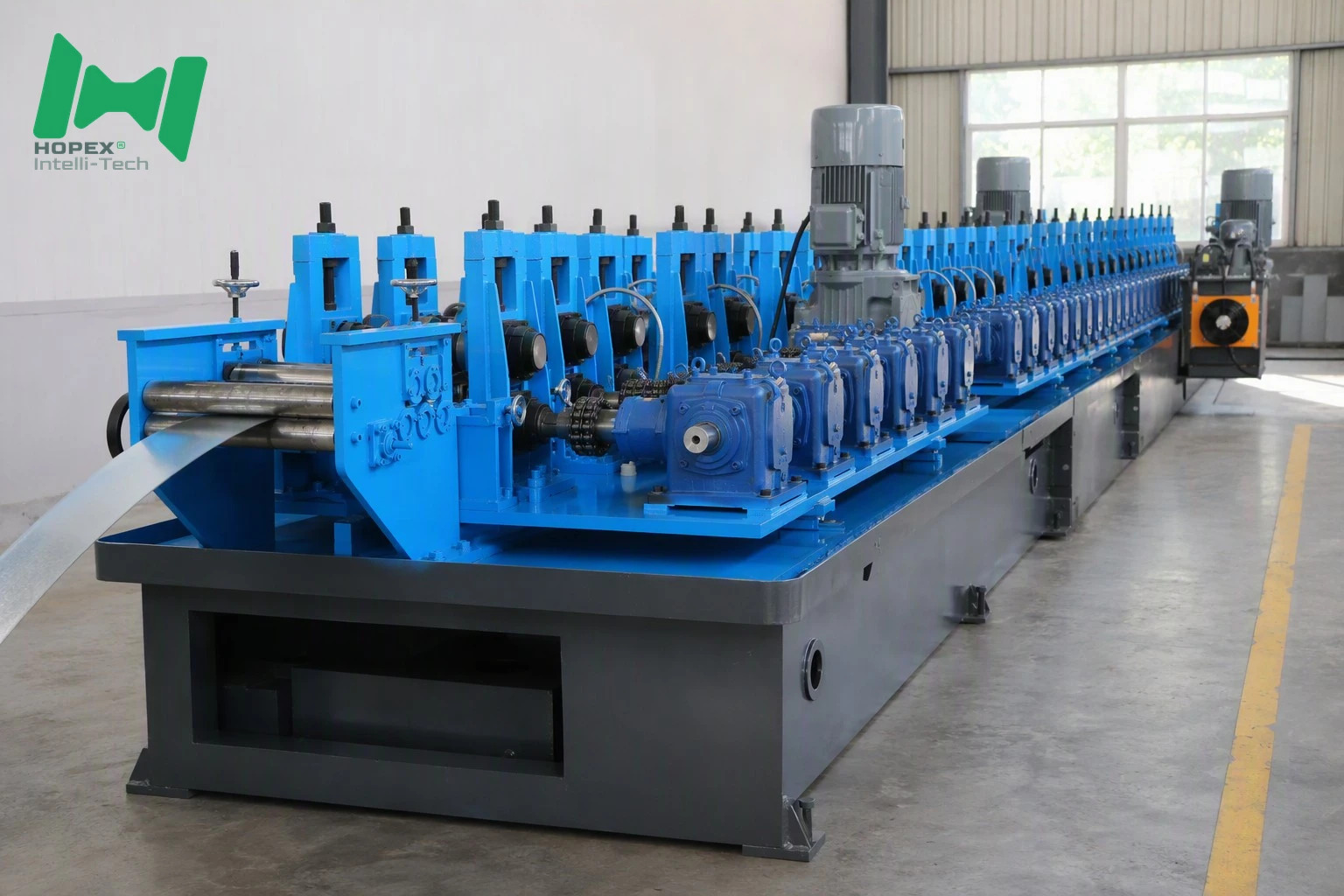

3. Main Forming Machine

• Forming rollers: 26 passes
• Roller material: Cr12 mould steel, vacuum quenched, hardness HRC 58–62
• Main shaft diameter: φ80 mm after machining
• Main shaft material: 45# steel, quenched and tempered
• Motor power: two 18.5 KW K97 series hard-tooth-surface reducers
• Transmission: gearbox drive with coupling connection
• Frame: cast iron housing
• Water circulation system included

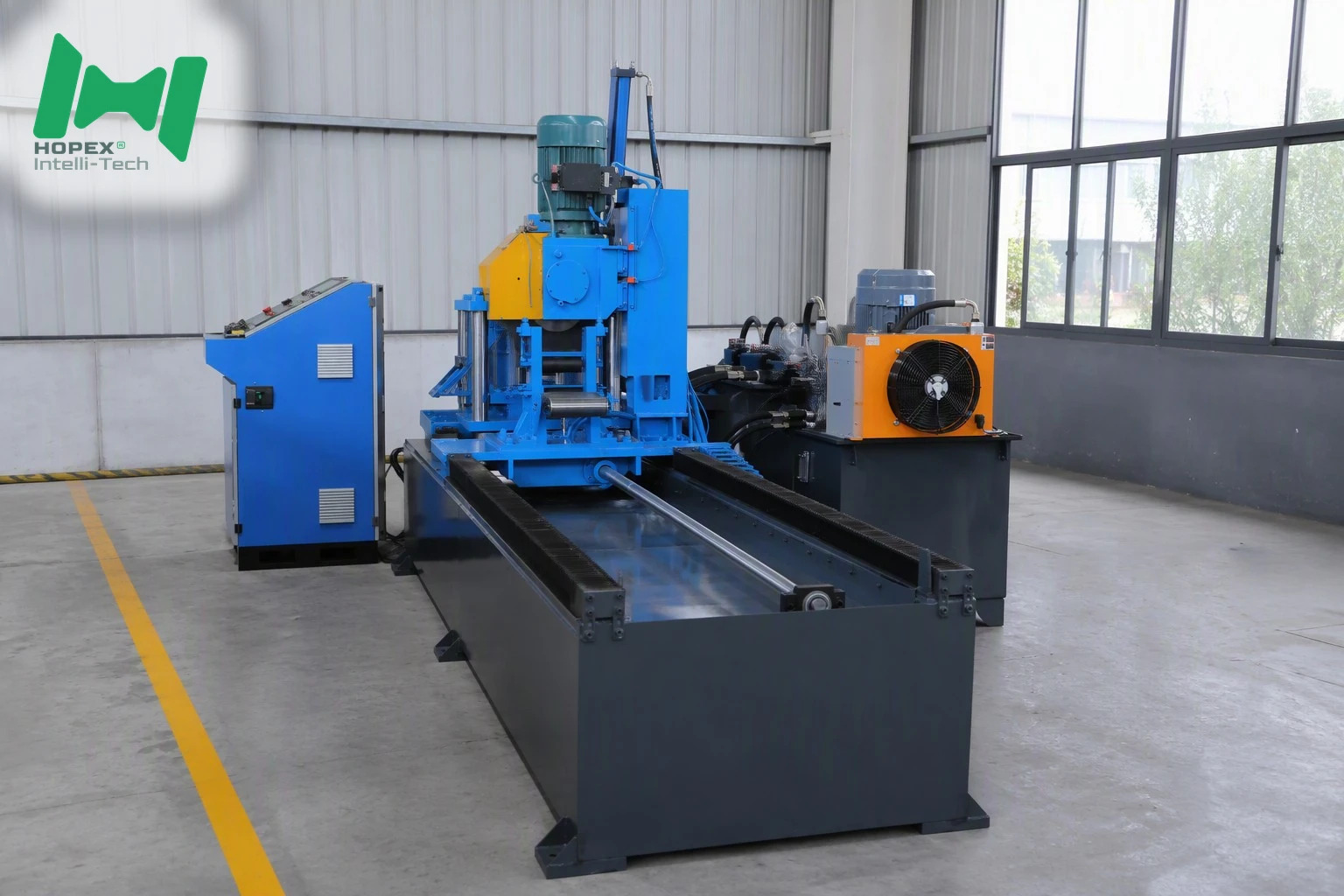

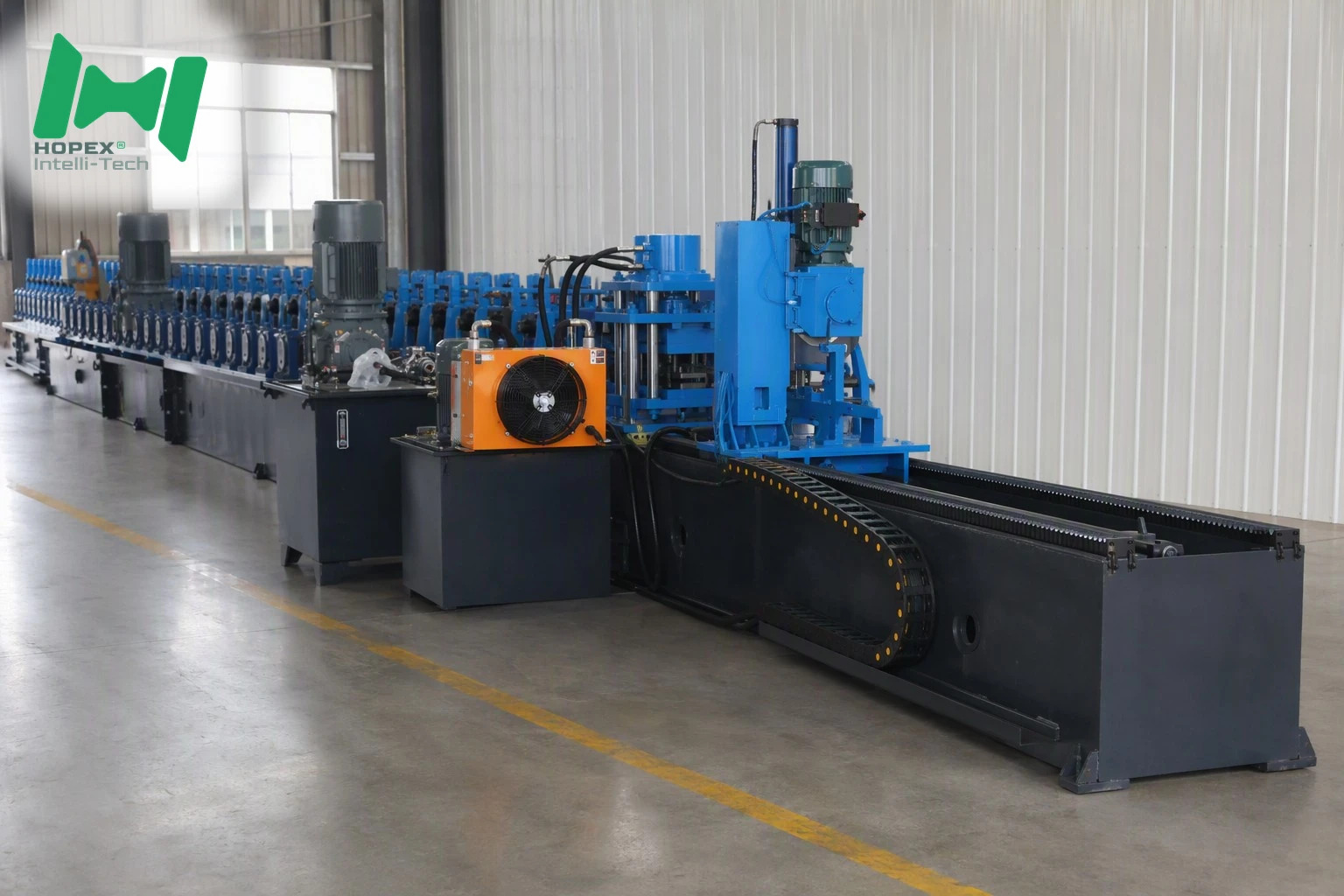

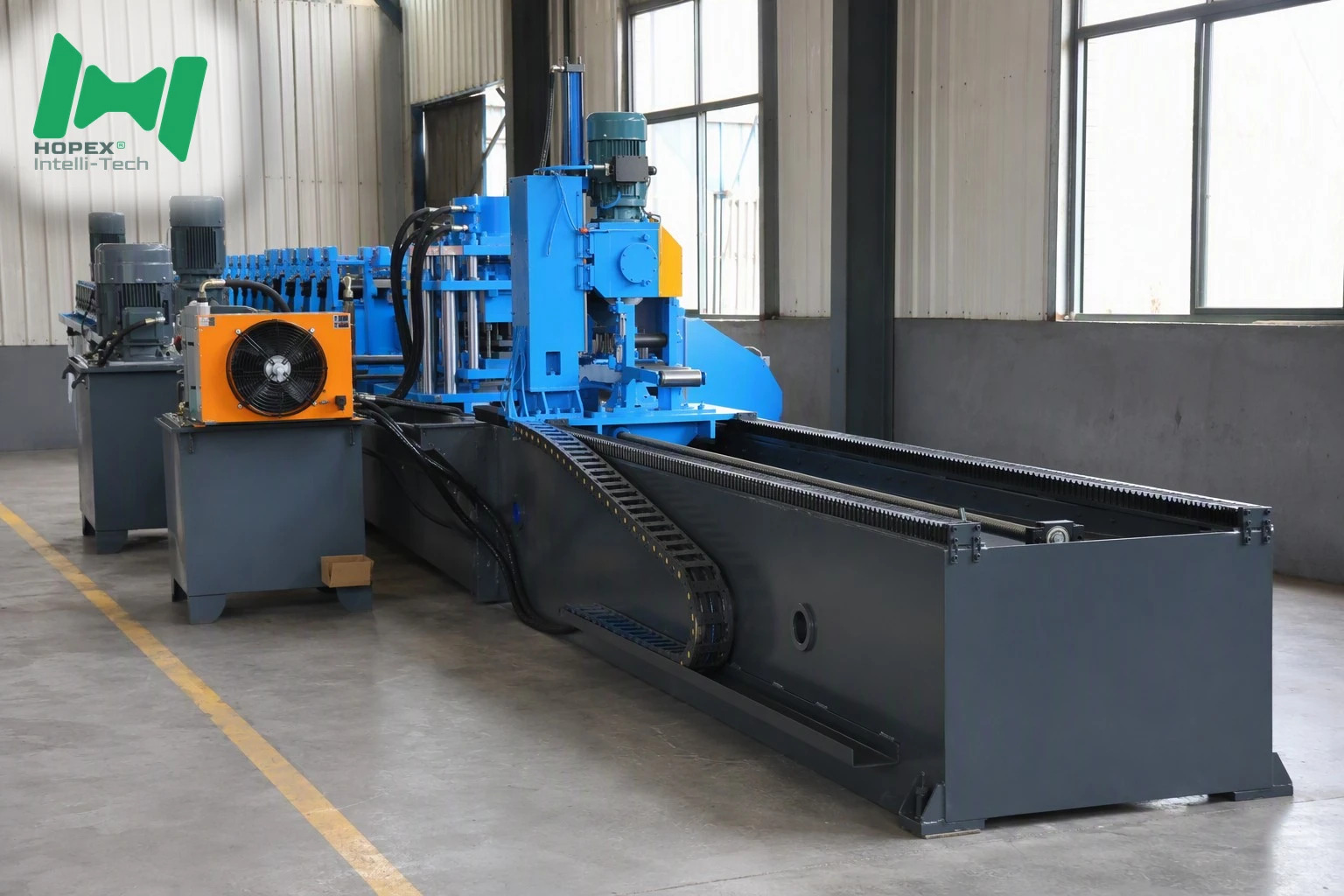

4. Servo Non-Stop Punching

• Dual-module reverse punching

5. Tracking Cut-Off

• Circular saw cutting, synchronised with line speed

6. Output Platform

• 3 m platform × 2, idler roller type

7. Hydraulic System

• 11 KW × 2 pump station for punching
• 4 KW pump station for cutting
• 3 KW pump station for material pressing



---

Key Components & Brands

No.	Component	Brand
1	Inverter / VFD	INVT
2	LCD touch screen	Samkoon
3	Low-voltage control elements	Delixi / Chint
4	Bearings	Harbin Bearing
5	Reducer / Gearbox	Beijing Ruibofeng

Note: Brands listed cover the main equipment; auxiliary parts are not included. Brands may vary by production batch — actual components prevail.

---

Applications

Pre-punched brackets are used for:

• Rooftop panel mounting rails and clamps bases
• Tilt-angle frames for flat roof installations
• Ground-mount array bracket assemblies
• Adjustable support frames for varied panel sizes





---

Why Work With HOPEX











---

Packaging & Delivery

Every solar panel mounting bracket roll forming machine is wrapped, braced on a steel base and container-loaded for export.



---

Frequently Asked Questions

Q1. How are hole positions controlled?

A servo feeder indexes the strip before each stroke of the dual-module reverse punching unit.

Q2. Can the hole pattern be changed?

Punching tooling is built to your drawing. Send the hole layout for confirmation. [需确认: 具体换模方式]

Q3. Does punching reduce line speed?

No. The rated 10–15 m/min already includes inline punching.

Q4. Which sections can be punched and formed?

41×41, 41×52, 41×62 and 41×72, with strip widths of 135, 157, 177 and 197 mm.

Q5. What holds the strip flat during punching?

A dedicated 3 KW hydraulic pressing station.

Q6. What is the maximum bracket length?

6000 mm per piece.

---

Talk to Our Engineers

Send your bracket hole layout and section drawing. We will confirm punch tooling for your solar panel mounting bracket roll forming machine.
