Solar Structure Making Machine | HOPEX Factory

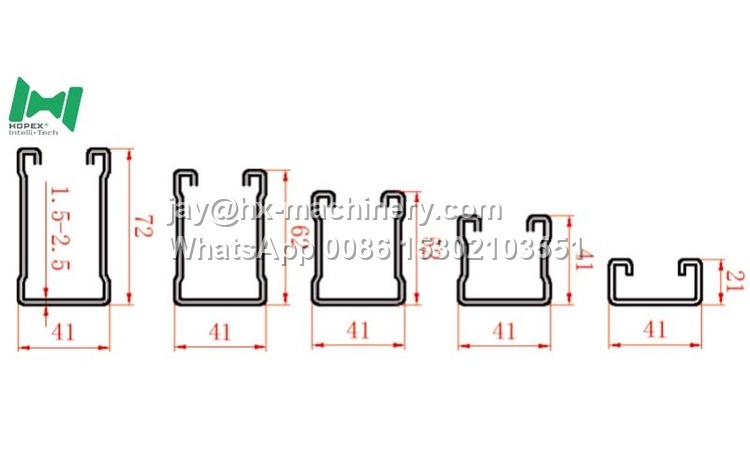

Unistrut channel roll forming machine makes strong profiles without scrap. The strut roll forming machine adds flexibility for short runs. Solar channel roll forming machine and roll forming machine for solar structure cover the renewable market. Solar channel machine and unistrut machine are available for 41*21/41/62/72mm.

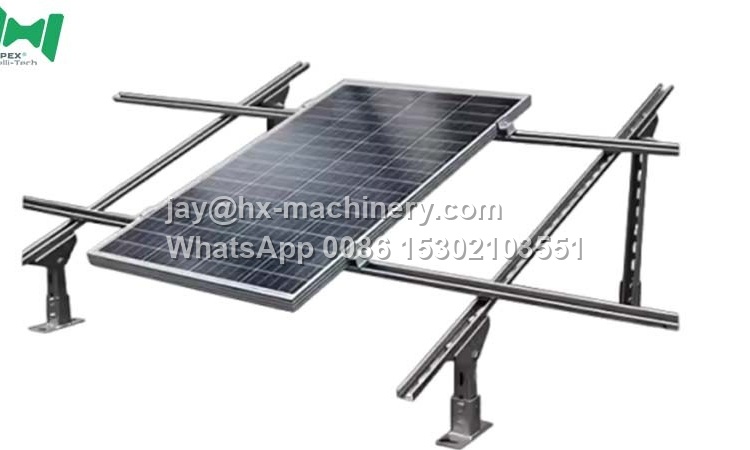

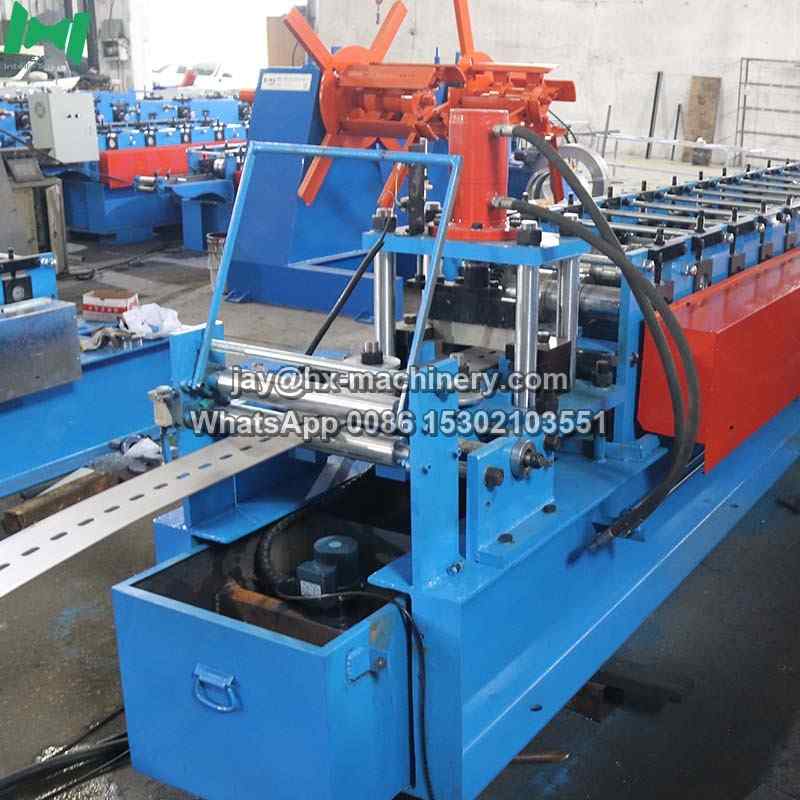

solar structure making machine
Detail
solar structure machine
|
No.
|
solar structure machine price
|
|
|
1
|
Product name | cable ladder machine |
|
2
|
Equipment footprint | 12m × 1.5 × 1.6m. |
|
3
|
Feed width | 210 mm |
|
4
|
Feed thickness | 2.0-3.0mm |
|
5
|
Material of raw materials | Q235B cold-rolled strip, hot-rolled strip, galvanized sheet. |
|
6
|
Online punching, production speed | 10-20 meters/minute. |
|
7
|
Voltage parameters | 380, 50Hz, 3 phases. |
Q: 1. How do I adjust the machine for different widths and heights?
For standard lines, it can be adjusted via high-precision manual spacers. However, for our premium series (like the HOPEXcustomized lines), we integrate an automatic motorized width-adjustment system controlled entirely through the PLC touchscreen, moving the forming rollers smoothly to your desired dimensions within seconds.
Q: 2. Is the width adjustment manual or fully automatic via PLC?
We offer both options based on your budget. Our advanced cable tray and housing profile lines feature fully automatic PLC one-key changeover. The operator simply inputs the parameters on the screen, and the machine adjusts itself automatically, eliminating human error.
3. How long does a standard size/profile changeover take?
With our traditional manual adjustment lines, it takes about 1-2 hours. With our upgraded Smart PLC One-Key Changeover System, a complete width adjustment (e.g., from 100mm to 600mm for cable trays) takes less than 2 minutes, drastically reducing your downtime and boosting factory productivity.
