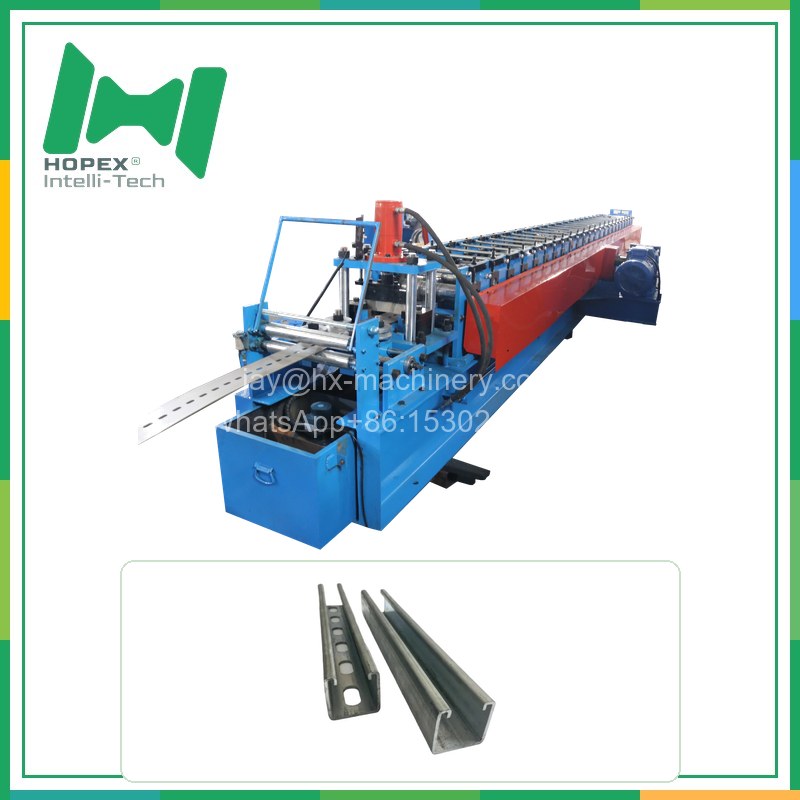

Strut Channel Roll Forming Machine | HOPEX Factory
Get solar structure machine price with full service. Solar structure manufacturing machine and solar structure making machine both build long-lasting supports. Roll forming machine for solar structure handles 41*21/41/62/72mm sections. Solar structure machine and solar bracket roll forming machine are tested before delivery.

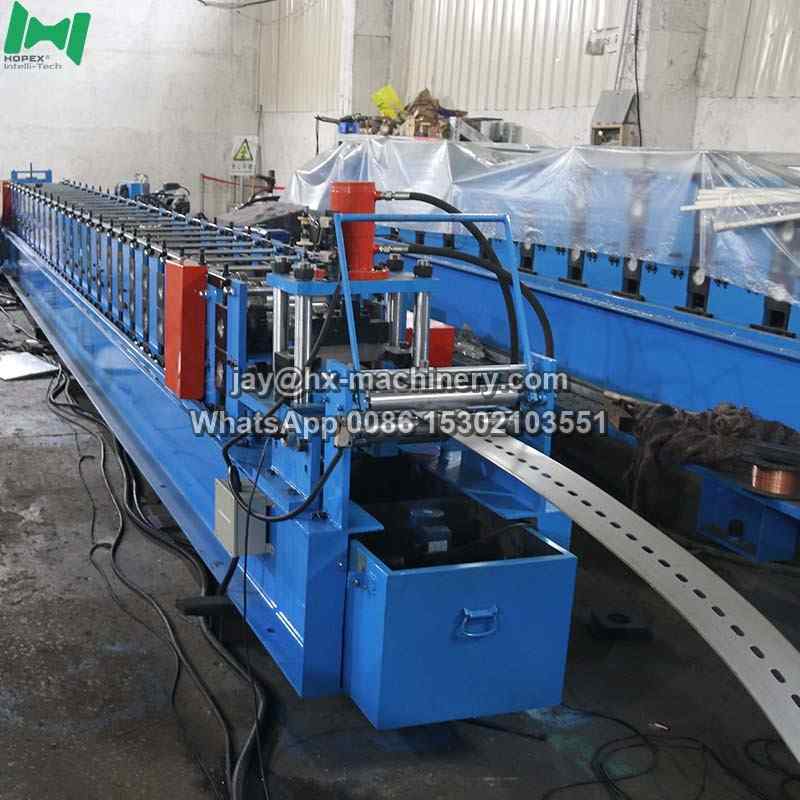

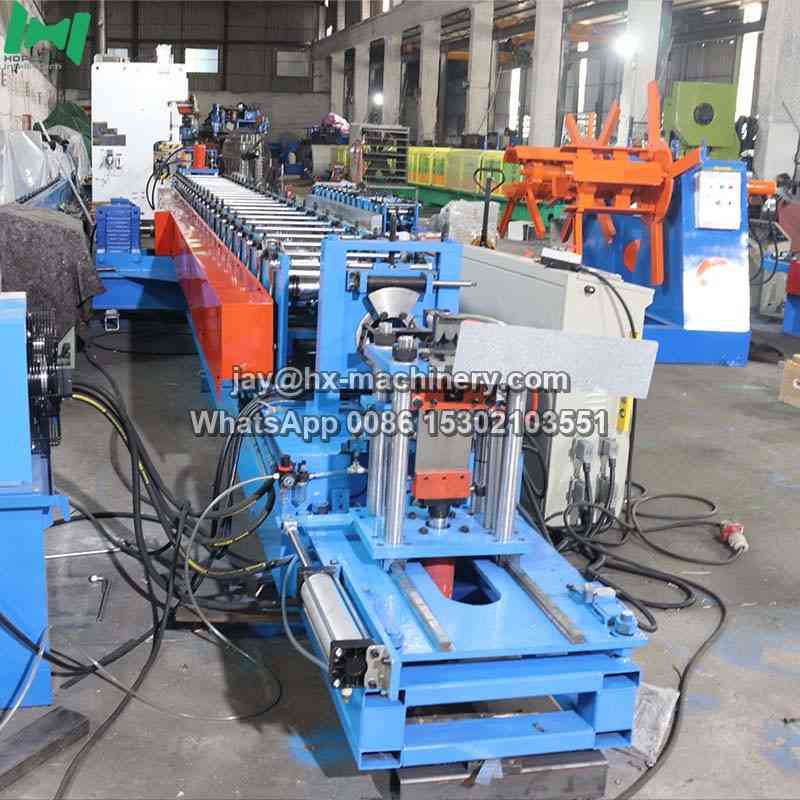

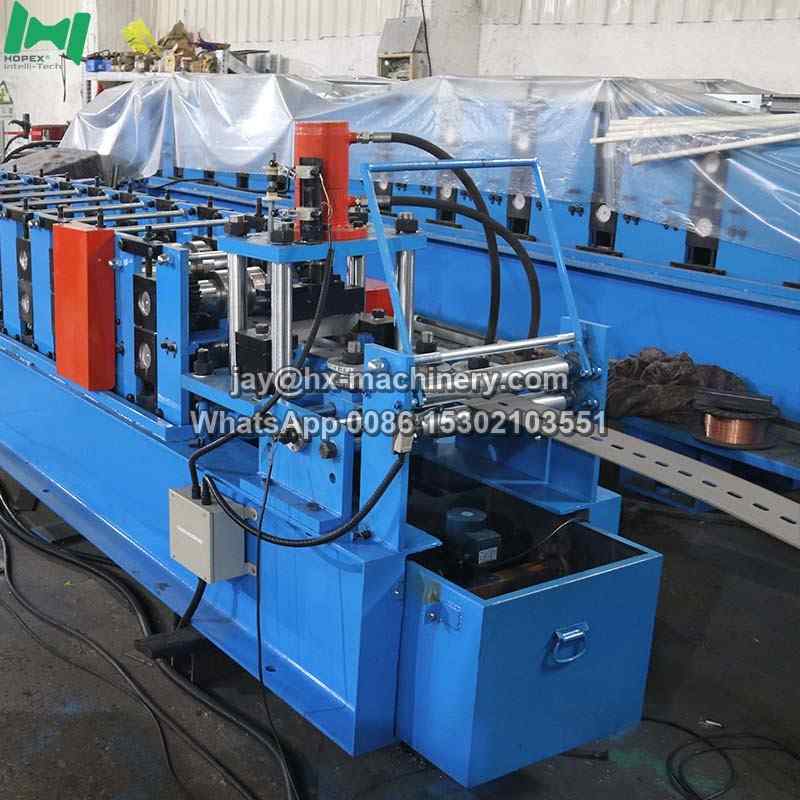

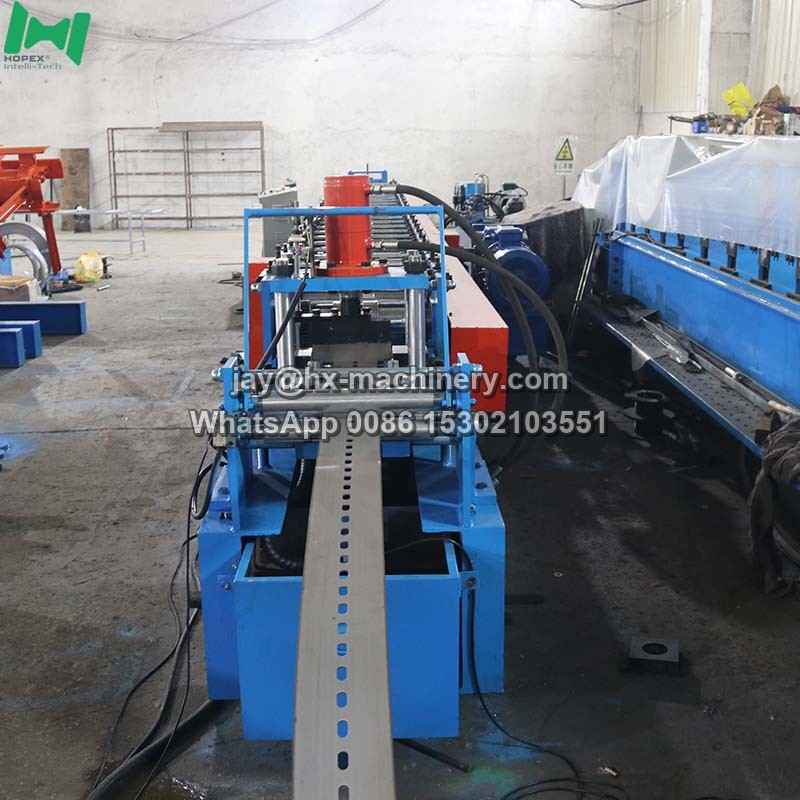

solar structure making machine
Detail
solar structure machine
|
No.
|
solar structure machine price
|
|
|
1
|
Product name | cable ladder machine |
|
2
|
Equipment footprint | 12m × 1.5 × 1.6m. |
|
3
|
Feed width | 210 mm |
|
4
|
Feed thickness | 2.0-3.0mm |
|
5
|
Material of raw materials | Q235B cold-rolled strip, hot-rolled strip, galvanized sheet. |
|
6
|
Online punching, production speed | 10-20 meters/minute. |
|
7
|
Voltage parameters | 380, 50Hz, 3 phases. |
Q: 1. How do I adjust the machine for different widths and heights?
For standard lines, it can be adjusted via high-precision manual spacers. However, for our premium series (like the HOPEXcustomized lines), we integrate an automatic motorized width-adjustment system controlled entirely through the PLC touchscreen, moving the forming rollers smoothly to your desired dimensions within seconds.
Q: 2. Is the width adjustment manual or fully automatic via PLC?
We offer both options based on your budget. Our advanced cable tray and housing profile lines feature fully automatic PLC one-key changeover. The operator simply inputs the parameters on the screen, and the machine adjusts itself automatically, eliminating human error.
3. How long does a standard size/profile changeover take?
With our traditional manual adjustment lines, it takes about 1-2 hours. With our upgraded Smart PLC One-Key Changeover System, a complete width adjustment (e.g., from 100mm to 600mm for cable trays) takes less than 2 minutes, drastically reducing your downtime and boosting factory productivity.
