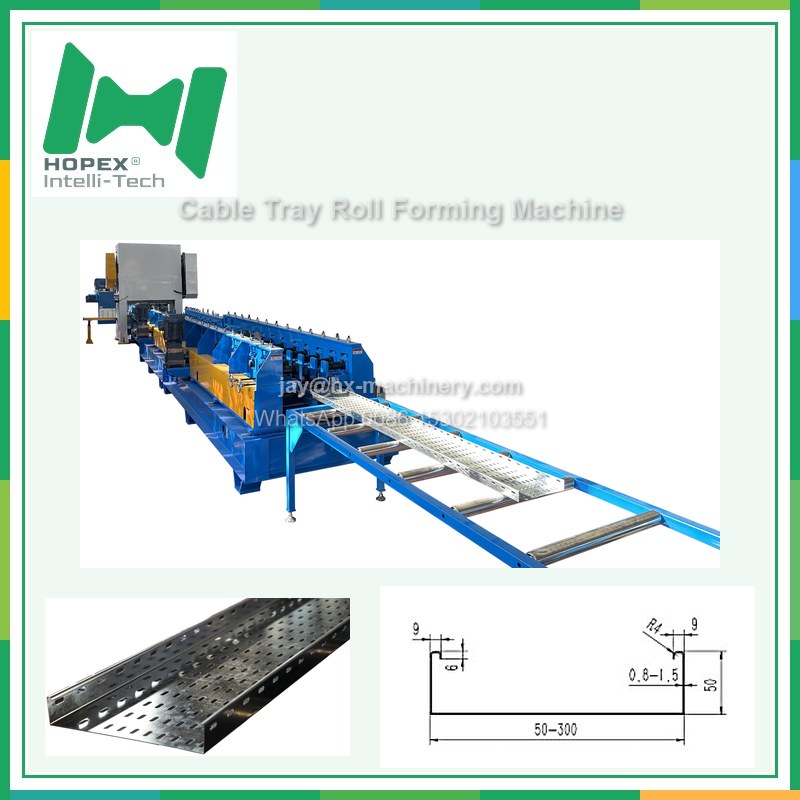

Cable Tray Punching Machine – 50-300 Servo Punch

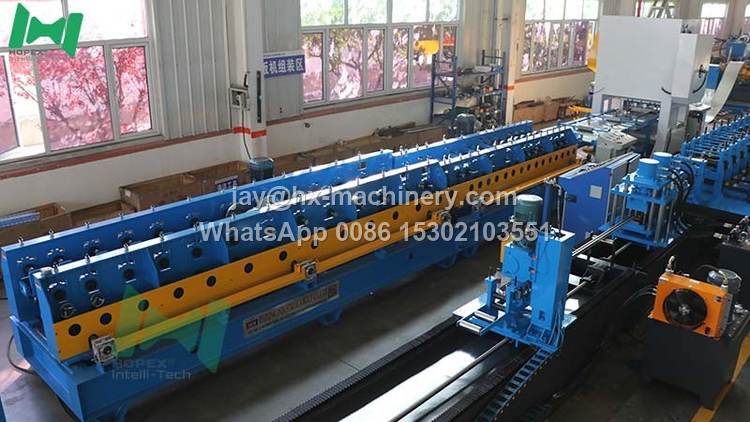

Galvanized cable tray making machine for 50-300 mm. Cable tray on a roll and trench cable tray projects both served. Cable tray rolling machine plus cable tray roll former. Cable ladder machine also available.

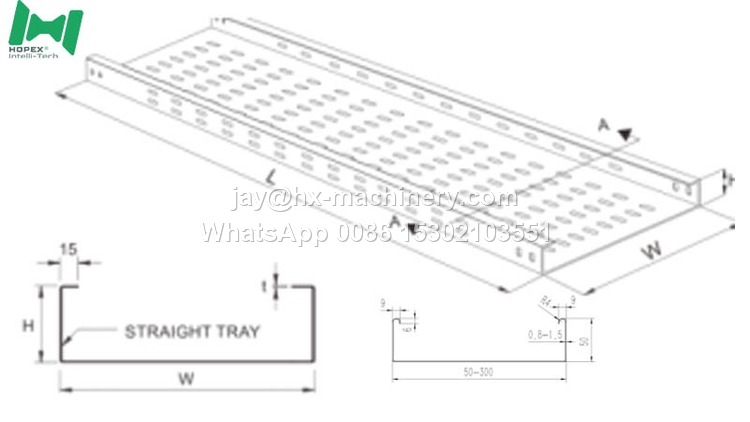

50-300cable tray on a roll
Detail
50-300cable tray roll former
|
No.
|
cable tray roll forming
|
|
|
1
|
Product name | cable ladder machine |
|
2
|
Equipment footprint | 6.5m × 2.5m × 2m. |
|
3
|
Feed width | 200-1250 mm |
|
4
|
Feed thickness | 1.5 (±0.03) - 2.0 (±0.03) mm |
|
5
|
Material of raw materials | Q235 cold-rolled steel sheet, galvanized steel sheet |
|
6
|
Online punching, production speed | 4 - 6 meters/minute. |
|
7
|
Voltage parameters | 380, 50Hz, 3 phases. |
Q: 1. How do I adjust the machine for different widths and heights?
For standard lines, it can be adjusted via high-precision manual spacers. However, for our premium series (like the HOPEXcustomized lines), we integrate an automatic motorized width-adjustment system controlled entirely through the PLC touchscreen, moving the forming rollers smoothly to your desired dimensions within seconds.
Q: 2. Is the width adjustment manual or fully automatic via PLC?
We offer both options based on your budget. Our advanced cable tray and housing profile lines feature fully automatic PLC one-key changeover. The operator simply inputs the parameters on the screen, and the machine adjusts itself automatically, eliminating human error.
3. How long does a standard size/profile changeover take?
With our traditional manual adjustment lines, it takes about 1-2 hours. With our upgraded Smart PLC One-Key Changeover System, a complete width adjustment (e.g., from 100mm to 600mm for cable trays) takes less than 2 minutes, drastically reducing your downtime and boosting factory productivity.
