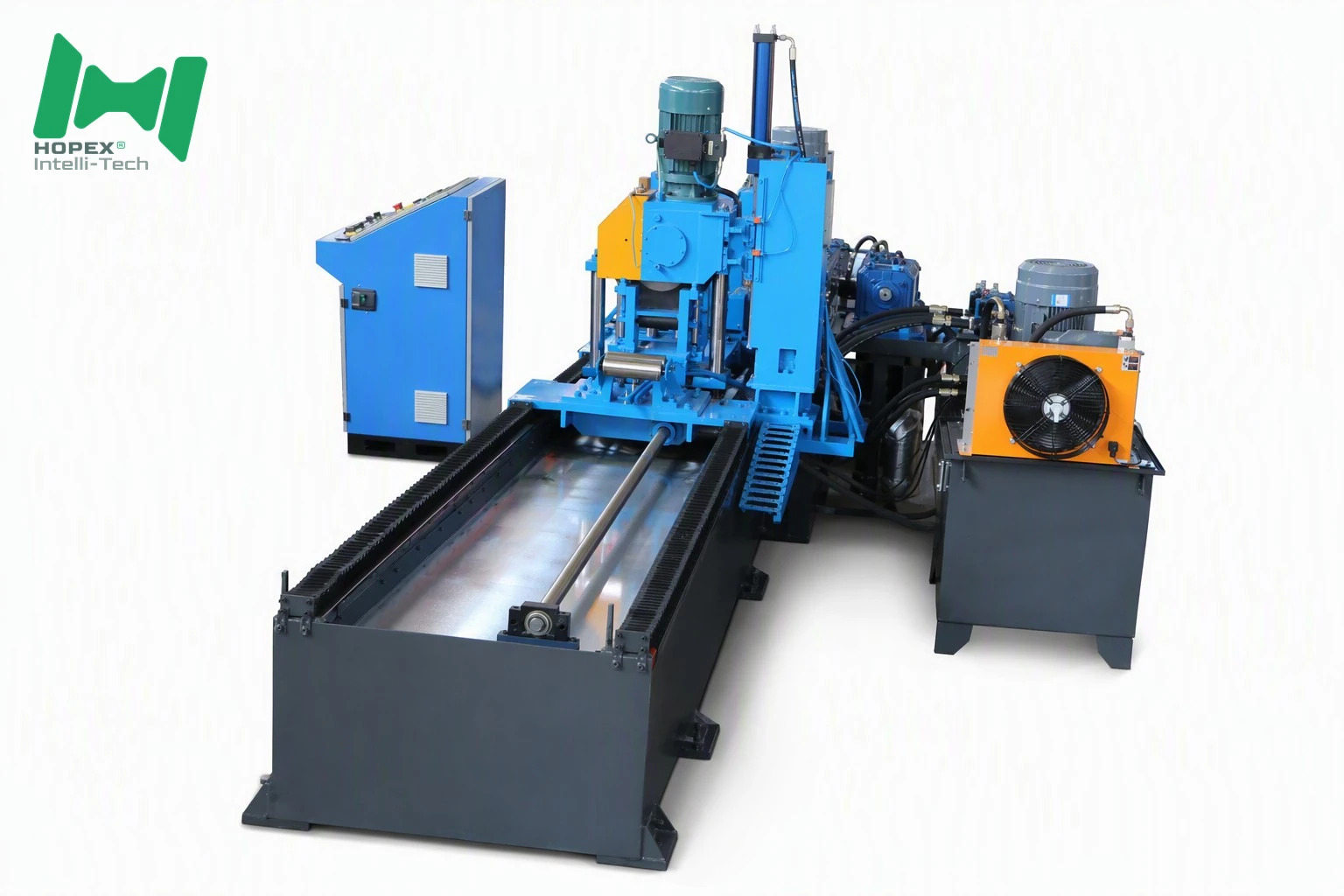

Photovoltaic Bracket Roll Forming Machine — PV Mounting Profile Line

HOPEX-Photovoltaic Bracket

Utility-scale photovoltaic projects consume bracket profiles by the kilometre. This HOPEX photovoltaic bracket roll forming machine answers that demand with continuous output of 41×41, 41×52, 41×62 and 41×72 sections at 10–15 m/min.

The line forms galvanized strip 1.5–2.5 mm thick. Moreover, servo non-stop punching places mounting holes inline, so brackets leave the mill ready for site assembly without a separate drilling stage.

Configured for suppliers feeding PV EPC contractors and mounting system brands on project schedules.

---

Built for PV Project Volume

• Continuous inline punching — dual-module reverse punching keeps the line running.
• Four PV bracket sections — 41×41, 41×52, 41×62 and 41×72 from one mill.
• 6000 mm lengths — long brackets cut in one piece by tracking circular saw.
• Galvanized input — coil arrives pre-coated, so no post-forming treatment line is required.
• 26 forming passes — Cr12 vacuum-quenched rollers at HRC 58–62.
• 95 KW installed capacity — full line from decoiler to output platform.



---

Matching Bracket Supply to Project Schedules

PV installation crews work to fixed milestones. Therefore bracket supply cannot depend on batch punching or manual cutting.

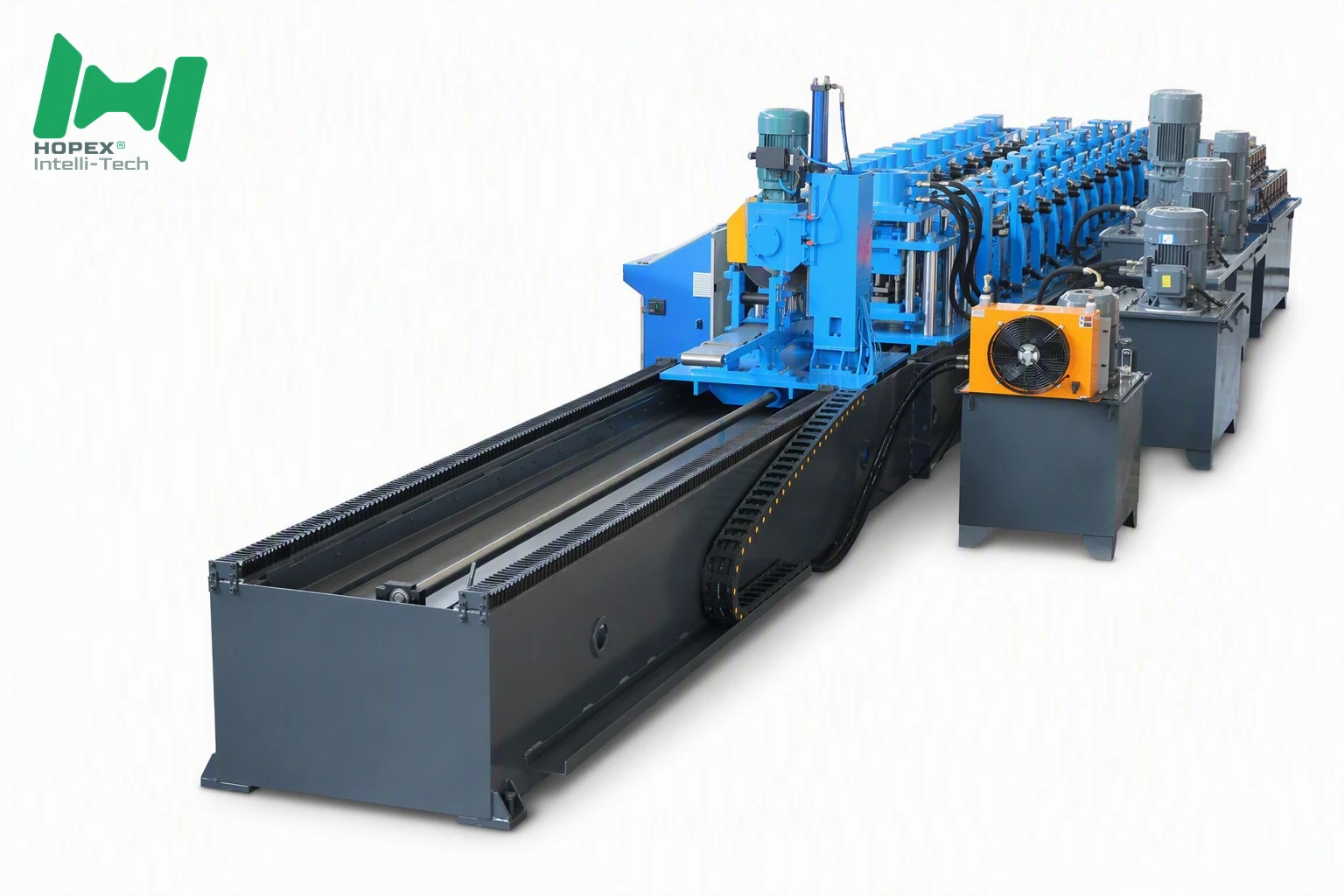

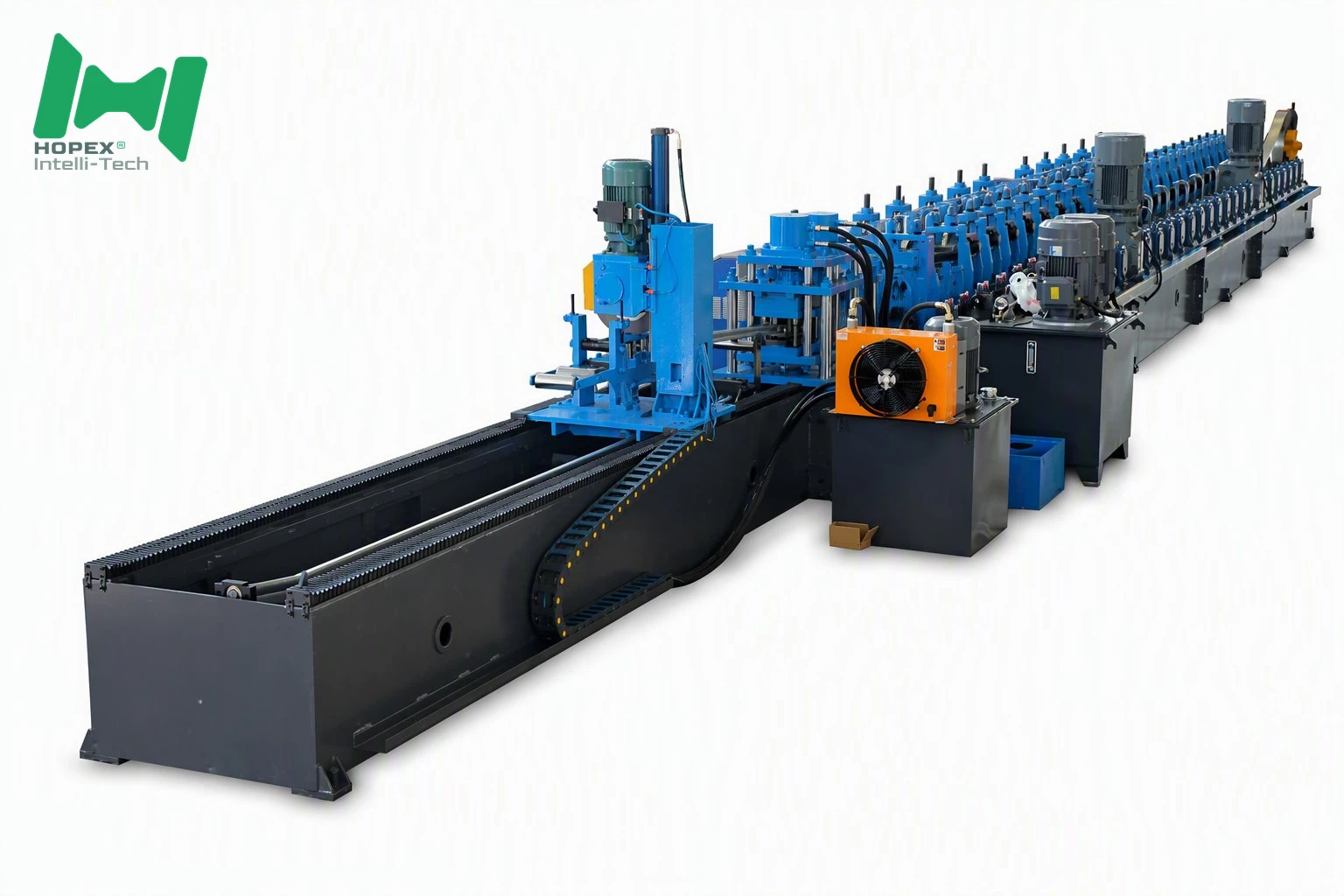

On this photovoltaic bracket roll forming machine, coil loads onto a 3-ton hydraulic decoiler, passes a 5-roll leveller, and moves through servo feeding into the punching modules. Then the 26-pass mill forms the section, and a tracking circular saw delivers finished lengths up to 6000 mm.

In addition, two 3 m idler output platforms stage finished brackets for bundling, which keeps the discharge end clear during continuous runs.

---

Production Process Flow

Decoiler → 5-Roll Leveller → Servo Feeding → Non-Stop Reverse Punching → 26-Pass Roll Forming → Tracking Circular Saw → Output Platform

---

Technical Specifications

Machine Conditions

Item	Parameter
Overall dimensions (L×W×H)	26 × 3 × 2 m
Hydraulic oil	46# hydraulic oil
Gear oil	18# hypoid gear oil
Total installed capacity	Approx. 95 KW

Main Technical Parameters

Item	Parameter
Rolling specifications	41×41 / 41×52 / 41×62 / 41×72
Feeding strip width	135 mm, 157 mm, 177 mm, 197 mm
Strip thickness	1.5 (±0.03) – 2.5 (±0.03) mm
Strip material	Galvanized steel
Inline punching & production speed	10–15 m/min
Workpiece length	≤ 6000 mm
Forming thickness range	1.5 – 2.5 mm



---

Supply Scope & Configuration

1. Decoiler

• Hydraulic expansion mandrel with electric uncoiling
• Load capacity: 3 tons
• Uncoiling inner diameter: 480–520 mm
• Maximum coil outer diameter: 1600 mm

2. Levelling Section

• 5-roll levelling unit
• Levelling shaft diameter: 70 mm
• Shaft material: 40Cr, high-frequency quenched

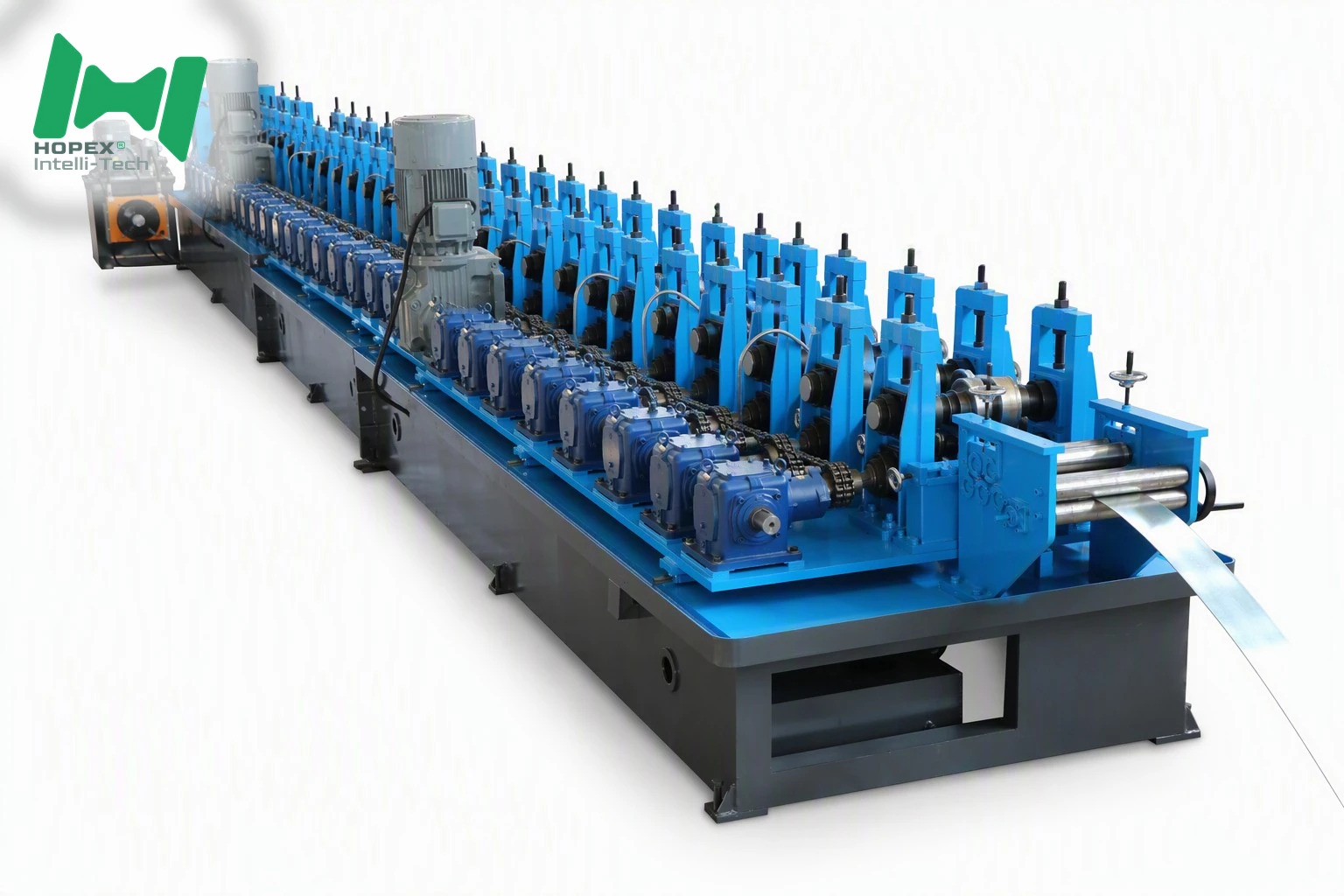

3. Main Forming Machine

• Forming rollers: 26 passes
• Roller material: Cr12 mould steel, vacuum quenched, hardness HRC 58–62
• Main shaft diameter: φ80 mm after machining
• Main shaft material: 45# steel, quenched and tempered
• Motor power: two 18.5 KW K97 series hard-tooth-surface reducers
• Transmission: gearbox drive with coupling connection
• Frame: cast iron housing
• Water circulation system included

4. Servo Non-Stop Punching

• Dual-module reverse punching

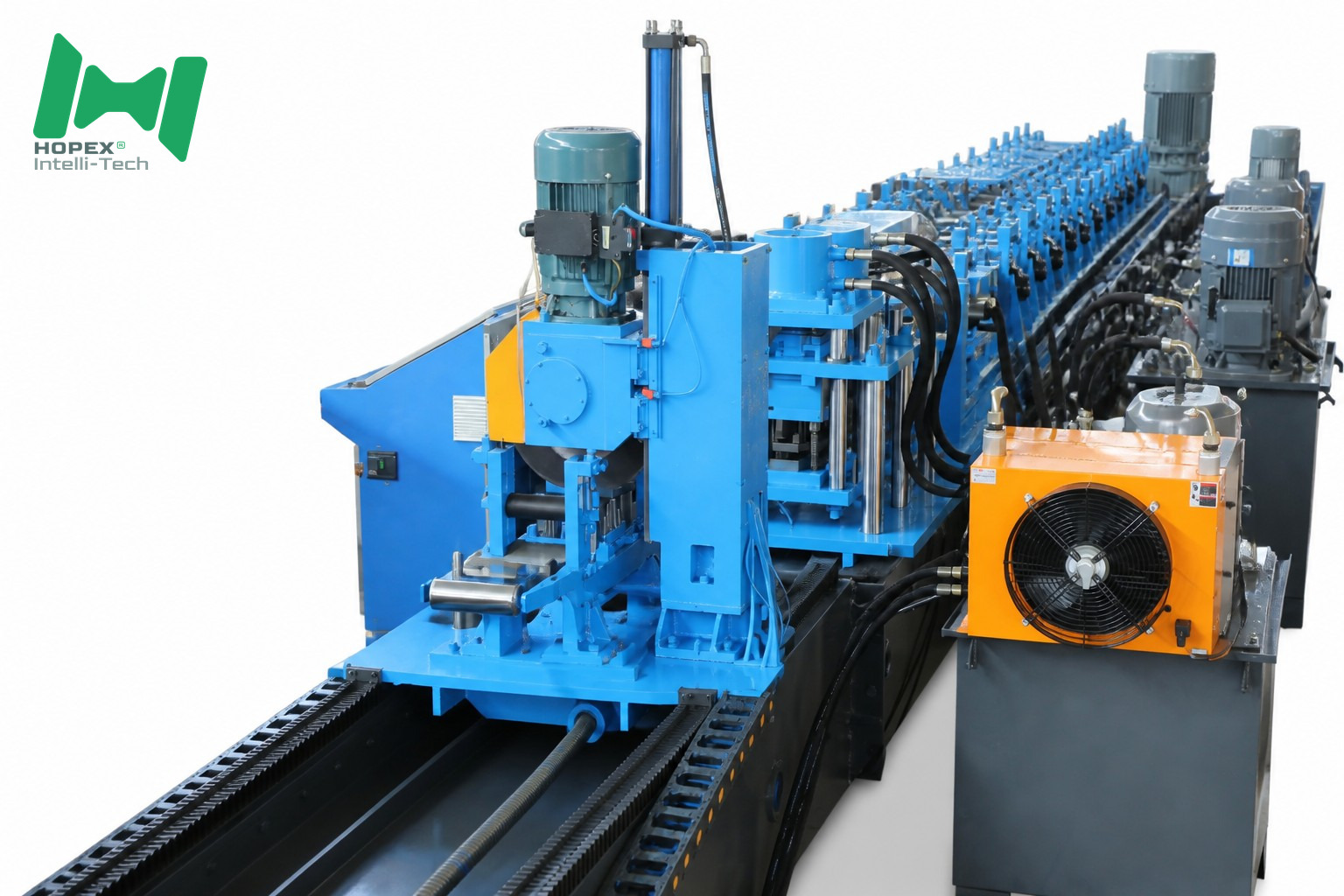

5. Tracking Cut-Off

• Circular saw cutting, synchronised with line speed

6. Output Platform

• 3 m platform × 2, idler roller type

7. Hydraulic System

• 11 KW × 2 pump station for punching
• 4 KW pump station for cutting
• 3 KW pump station for material pressing



---

Key Components & Brands

No.	Component	Brand
1	Inverter / VFD	INVT
2	LCD touch screen	Samkoon
3	Low-voltage control elements	Delixi / Chint
4	Bearings	Harbin Bearing
5	Reducer / Gearbox	Beijing Ruibofeng

Note: Brands listed cover the main equipment; auxiliary parts are not included. Brands may vary by production batch — actual components prevail.

---

Applications

Brackets from this photovoltaic bracket roll forming machine support:

• Utility-scale ground-mount PV arrays
• Commercial rooftop photovoltaic systems
• Solar carports and canopy installations
• Agrivoltaic and elevated mounting frames





---

Why Work With HOPEX











---

Packaging & Delivery

Each photovoltaic bracket roll forming machine is film-wrapped, fixed to a steel base and loaded into containers for international shipment.



---

Frequently Asked Questions

Q1. Is the bracket punched inline?

Yes. Servo non-stop punching with dual reverse modules forms holes as the strip advances.

Q2. Which PV bracket sections are supported?

41×41, 41×52, 41×62 and 41×72, fed by 135, 157, 177 and 197 mm strip.

Q3. What output can be expected?

10–15 m/min, depending on bracket length and hole quantity.

Q4. What is the maximum single-piece length?

6000 mm, cut by a tracking circular saw.

Q5. Does the machine handle pre-galvanized coil?

Yes, the line is designed for galvanized strip 1.5–2.5 mm thick.

Q6. What is the footprint?

26 × 3 × 2 m, with approximately 95 KW installed capacity.

---

Talk to Our Engineers

Send your PV bracket drawings and annual volume target. We will configure a photovoltaic bracket roll forming machine to match.
