Solar Strut Channel Making Machine — Light vs Heavy Gauge Lines

Solar Strut Channel Making Machine — Light vs Heavy Gauge Lines

Product ID : solar strut channel making machine

Product Tags :

Product Attributes :

Solar strut channel making machine compared against light gauge lines: 26 stations, 80mm shafts and 2.0-3.0mm capacity for structural channel.

Product Description

HOPEX-Solar Strut Channel

Most channel machines on the market are built for light gauge. A solar strut channel making machine used for structural work is a different class of equipment. The comparison below shows where the difference sits.

Light Gauge Line vs This Structural Line

Aspect	Typical light gauge line	HOPEX structural line
Thickness capacity	Around 1.0 – 1.5 mm	2.0 – 3.0 mm
Forming stations	12 – 18 typical	26 lines
Shaft diameter	50 – 65 mm common	80 mm solid shaft
Roller treatment	Often through-hardened only	Cr12MoV, quenched HRC 58–62
Punching	Frequently offline	In-line hydraulic, 11 KW × 2
Machine mass	3 – 5 tonnes	8000 kg
Main drive	Single motor typical	18.5 KW × 2

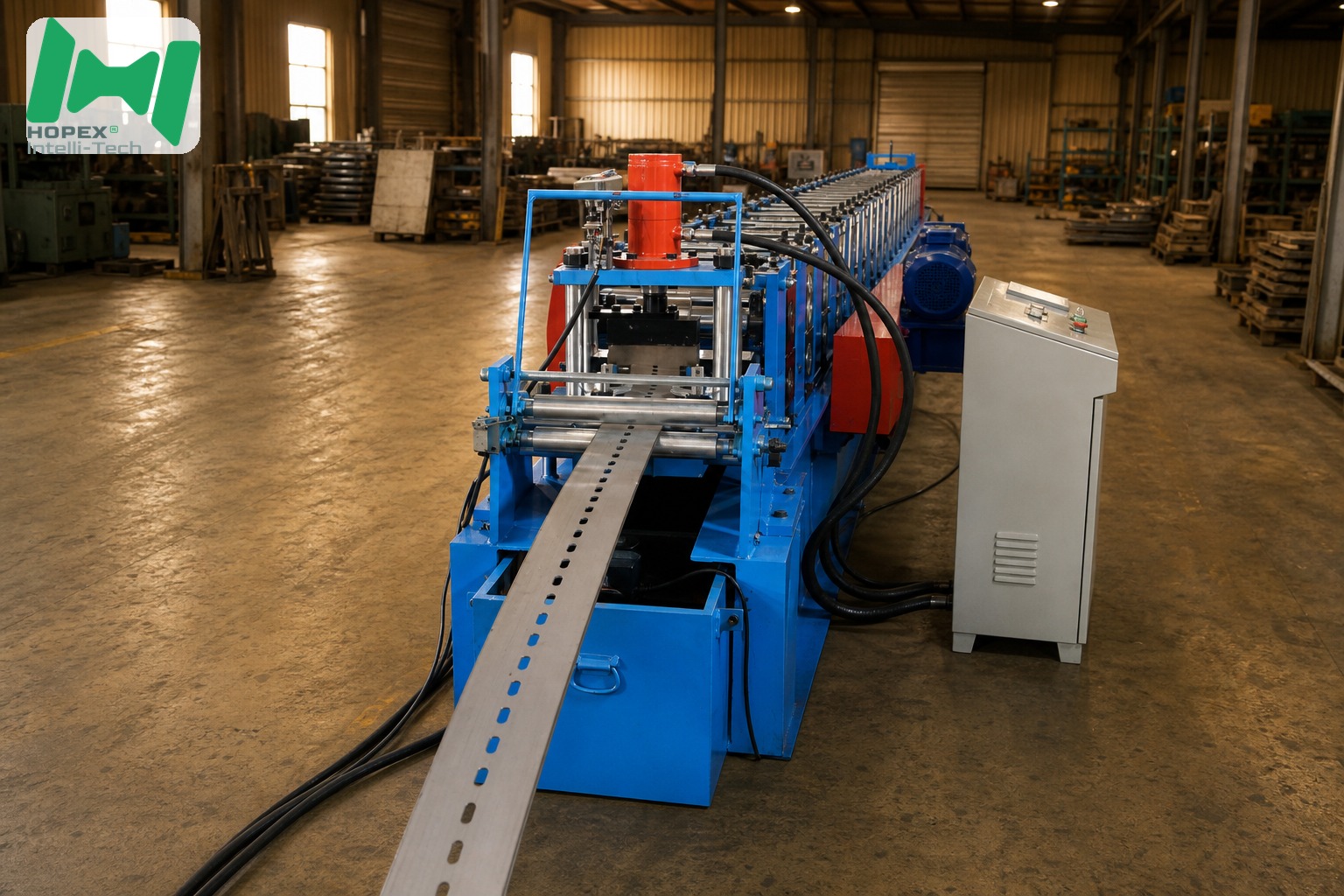

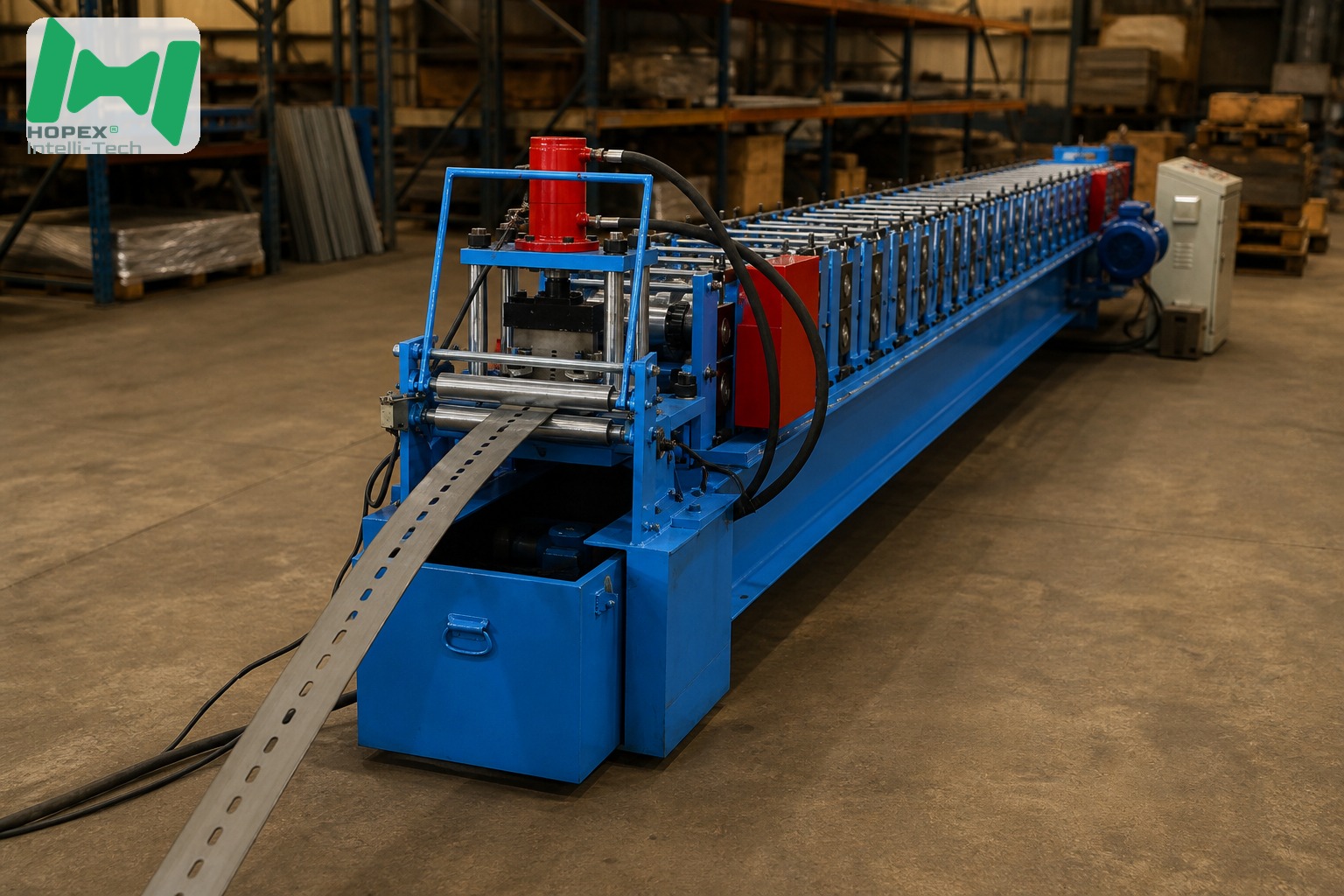

solar strut channel making machine complete production line

What Heavier Construction Buys You

Section stability at 3.0 mm — the lips stay parallel instead of springing open.
Longer tooling intervals — Cr12MoV, quenched HRC 58–62 resists the abrasion of galvanized coil.
No secondary punching — holes are placed in line, so labour per part drops.
Lower vibration — 8000 kg of machine mass keeps the strip surface unmarked.

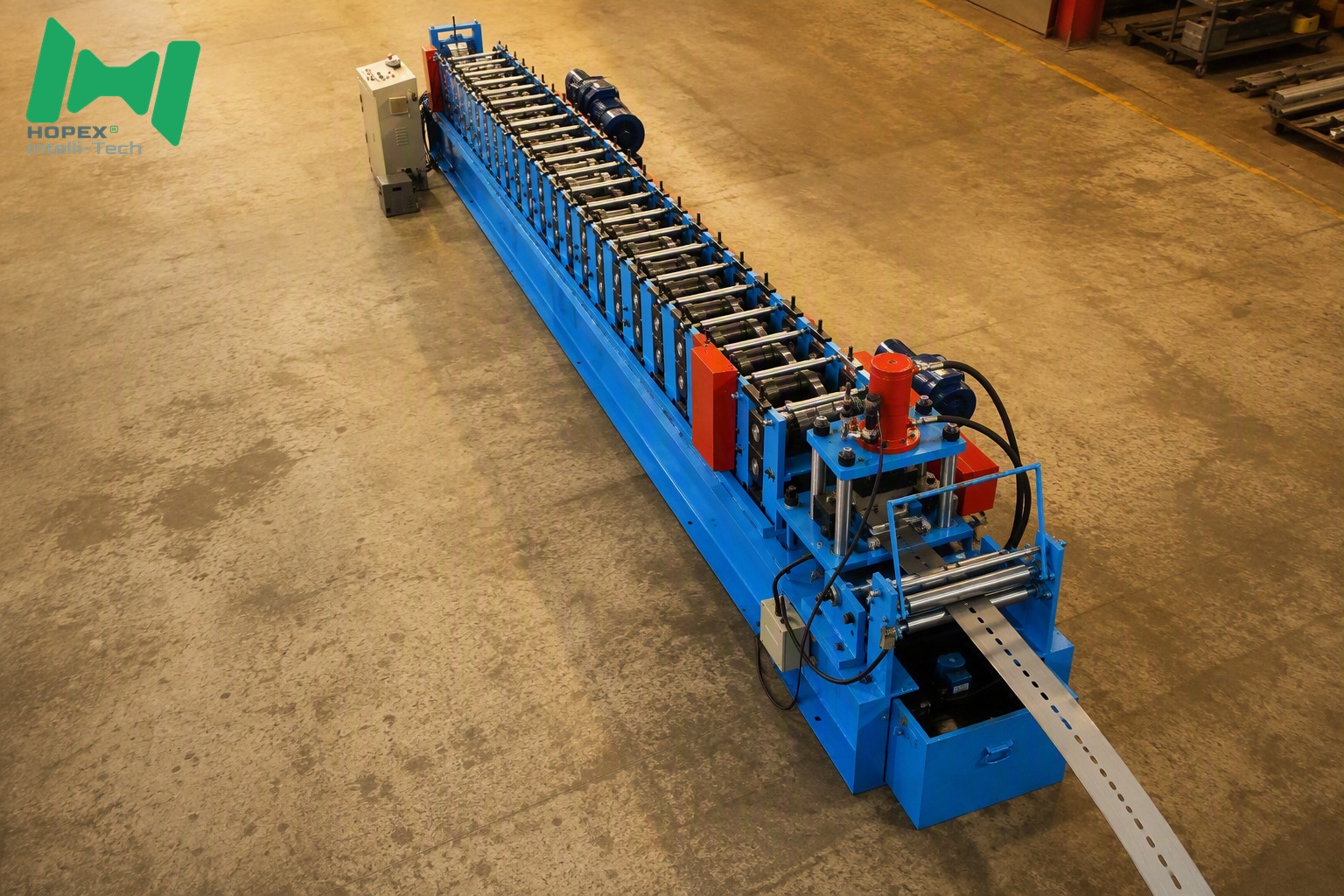

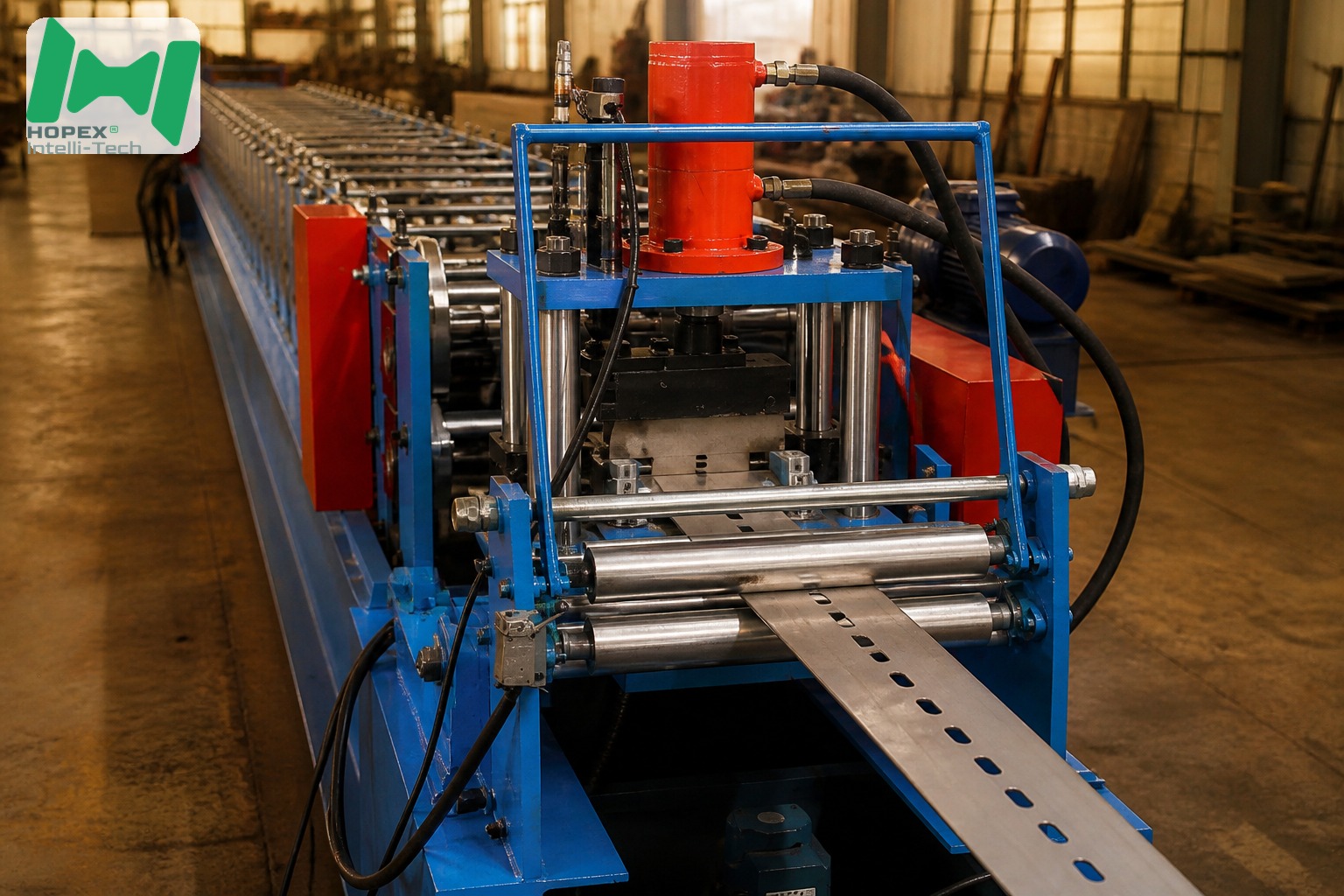

solar strut channel making machine 26-station forming rollers

Where a Light Gauge Line Is Still Right

If your channel is under 1.5 mm and carries no structural load, a lighter mill is cheaper to run and perfectly adequate. This line is specified for structural strut channel, where section accuracy under load is the requirement.

This Line in Numbers

Item	Parameter
Feeding width	210 mm
Thickness range	2.0 – 3.0 mm
Production capacity	10 – 20 m/min
Molding speed	15 – 30 m/min
Stations	26 lines
Shaft	80 mm solid shaft, 45# steel, forged, 0.05 mm chrome plated
Rollers	Cr12MoV, quenched HRC 58–62
Dimensions	12000 × 1550 × 1600 mm
Weight	8000 kg
Power	18.5 KW × 2 + 11 KW × 2 + 4 KW + 3 KW at 380 V
